Acerca del producto

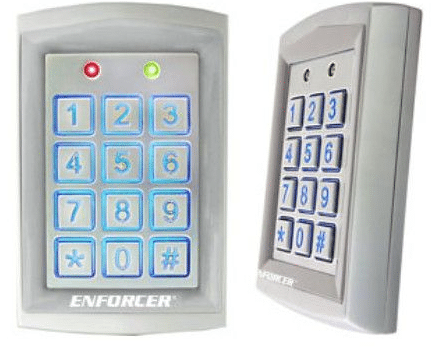

The SK-1323-SDQ from Seco-Larm is a Sealed-Housing Outdoor Stand-Alone Keypad. Weatherproof (IP65). Backlit keys, 1,010 user codes, 2~6 digit code length, two relay outputs (Form C NO/NC/COM), two egress inputs, one door sensor input, optical tamper sensor. Fully-epoxied circuitry for outdoor use.
Seco-Larm SK-1323-SDQ Outdoor Stand-Alone Keypad, IP65, 2 Form C Relays Features:
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- 2 Form C relay outputs
- Each relay has a programmable output time from 1~99 seconds or a toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- 2 Multi-colored status LEDs
- All features are programmed directly from the keypad—no need for an external programmer
- EEPROM protects programmed information in case of power loss
- Optical tamper sensor for added security
- Circuitry is potted with epoxy for outdoor use
- Weatherproof (IP65)
- Rugged aluminum construction
Seco-Larm SK-1323-SDQ Outdoor Stand-Alone Keypad, IP65, 2 Form C Relays Specifications:
operating voltage 12~24 VAC/VDC
- Current draw
- Standby 40mA@12VDC
- Active 70mA@12VDC
- Relay outputs
- Output #1 1A@30VDC, Form C, NO/NC/COM
- Output #2 1A@30VDC, Form C, NO/NC/COM
- Egress inputs
- Input #1 N.O. ground
- Input #2 N.O. ground
- Door sensor input N.C. ground
- Tamper sensor Optical
- Operating temperature -4°~122° F (-20°~50° C)
- Keypad LED life 60,000 hours (over 6.8 years)
- Weight 1-lb 2-oz (510g)
Especificaciones técnicas
The SK-1323-SDQ from Seco-Larm is a Sealed-Housing Outdoor Stand-Alone Keypad. Weatherproof (IP65). Backlit keys, 1,010 user codes, 2~6 digit code length, two relay outputs (Form C NO/NC/COM), two egress inputs, one door sensor input, optical tamper sensor. Fully-epoxied circuitry for outdoor use.
Seco-Larm SK-1323-SDQ Outdoor Stand-Alone Keypad, IP65, 2 Form C Relays Features:
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- 2 Form C relay outputs
- Each relay has a programmable output time from 1~99 seconds or a toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- 2 Multi-colored status LEDs
- All features are programmed directly from the keypad—no need for an external programmer
- EEPROM protects programmed information in case of power loss
- Optical tamper sensor for added security
- Circuitry is potted with epoxy for outdoor use
- Weatherproof (IP65)
- Rugged aluminum construction
Seco-Larm SK-1323-SDQ Outdoor Stand-Alone Keypad, IP65, 2 Form C Relays Specifications:
operating voltage 12~24 VAC/VDC
- Current draw
- Standby 40mA@12VDC
- Active 70mA@12VDC
- Relay outputs
- Output #1 1A@30VDC, Form C, NO/NC/COM
- Output #2 1A@30VDC, Form C, NO/NC/COM
- Egress inputs
- Input #1 N.O. ground
- Input #2 N.O. ground
- Door sensor input N.C. ground
- Tamper sensor Optical
- Operating temperature -4°~122° F (-20°~50° C)
- Keypad LED life 60,000 hours (over 6.8 years)
- Weight 1-lb 2-oz (510g)
