Acerca del producto

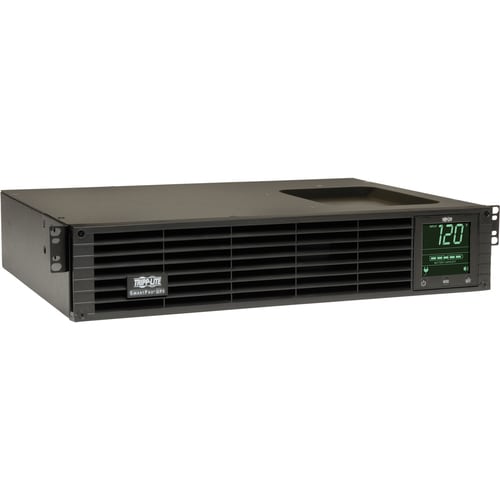

Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload, low battery and fault conditions
- 8 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 0.9 power factor rating
- 570-joule surge suppression rating
Reliable Battery Backup
- Supports half load up to 13 min. and full load up to 4.5 min.
- Internal batteries designed for hot-swap field replacement
- 95% line-power efficiency rating saves money in energy costs
2 Load Banks with Switchable Outlets
- Can control 4 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
- Maintains 120V nominal output over input range of 83V-147V without using battery power
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
Interactive LCD Screen
- Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
- Rotates for easy viewing in rack-mount or tower configurations
Network Management Cards
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
Communications Ports
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
- EPO">www.tripplite.com/poweralert port supports emergency shutdown in large facilities
- EPO">
Versatile Installation Options
- EPO">
- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- EPO">
- Corrects under- and overvoltages from 83V to 147V
- 8 NEMA 5-15R outlets-4 switchable via network interface
- Network power management and control capability
- Interactive LCD monitoring screen
- 13 min. runtime at half load; 4.5 min. at full load
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED Indicator |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Environmental Conditions | |
| Thermal Dissipation | 267 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | On Battery |
| Overload | |
| Low Battery | |
| Physical Characteristics | |
| Weight (Approximate) | 46 lb (20865.25 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.45" (341.63 mm) |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 570 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Recycled | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Emergency Power OFF | Yes |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART1500RM2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 1500RM2U UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 36 V DC |
| Typical Battery Recharge Time | 4 Hour |
