Power equipment UPS

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

UPS SMART1500RMXL2U de Tripp Lite - 1500 VA/940 W - Carga completa en 12 minutos - 8 conectores NEMA 5-15R

UPS SMART1500RMXL2U de Tripp Lite - 1500 VA/940 W - Carga completa en 12 minutos - 8 conectores NEMA 5-15R

Precio habitual $1,412.99 CAD
Precio habitual $1,695.59 CAD Precio de oferta $1,412.99 CAD
-16% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
UPS SMART1500RMXL2U de Tripp Lite - 1500 VA/940 W - Carga completa en 12 minutos - 8 conectores NEMA 5-15R

VPN: SMART1500RMXL2U SKU: RSC805984 UPC: 37332120403

  • Protege los equipos contra apagones, caídas de tensión, sobretensiones transitorias y ruido en la línea.
  • Mantiene el equipo en funcionamiento durante las interrupciones para permitir tiempo para guardar archivos y realizar un apagado seguro.
  • El factor de potencia unitario garantiza la máxima potencia posible en cada clasificación de potencia.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

UPS SMART1500RMXL2U de Tripp Lite - 1500 VA/940 W - Carga completa en 12 minutos - 8 conectores NEMA 5-15R

Resumen de información del producto

UPS SMART1500RMXL2U de Tripp Lite - 1500 VA/940 W - Carga completa en 12 minutos - 8 conectores NEMA 5-15R

Acerca del producto

1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA 5-15R Outlets Protect Your Connected Components
Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Unity power factor ensures maximum power possible at each power rating
  • ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
  • 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
  • 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
  • $250,000 Ultimate Lifetime Insurance

Especificaciones técnicas

Controls/Indicators
Status Indicators
  • UPS status (Solid Green)
  • Battery Mode (Solid Orange)
  • Battery Low Warning (Flashing Orange)
  • Fault/Alarm (Solid Red)
  • Environmental Conditions
    Maximum Operating Temperature104°F (40°C)
    Sound Emission (A-Weighted)40 dB(A)
    Interfaces/Ports
    USBYes
    Total Number of Expansion Slots1
    EPO PortYes
    Miscellaneous
    Additional Information
    • SMART1500RMXL2U line interactive UPS offers voltage regulation, battery support and network-grade AC surge suppression

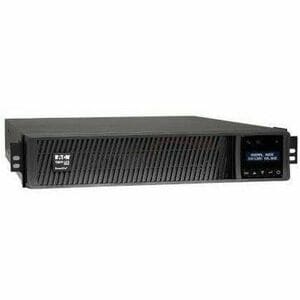

    • Uses only 2 rack spaces (2U) in a 19 inch rack enclosure with an installed depth of only 15 inches
    • Includes mounting accessories for 4 post rackmount systems, 2 post rackmount compatible with optional 2POSTRMKIT accessory, tower compatible with optional 2-9USTAND accessory
    • 1500VA / 940 watt power handling capability; 30 minutes half load runtime / 12 minutes full load runtime
    • Extended runtime available with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs
    • Automatic Voltage Regulation (AVR) circuits maintain usable 120V nominal without using battery power during brownouts as low as 75V and overvoltages as high as 147V
    • Includes a total of 8 NEMA5-15R outlets, 1 pair of which can be individually powered on and off via software interface to selectively reboot remote equipment or automatically shed less significant loads to extend battery runtime for more critical equipment
    • Supports 120 volt / 60 Hz applications in USA, Canada, Mexico and more; common 15 amp straight blade input plug compatible with standard NEMA 5-15R wall sockets
    • Includes 1 USB and 1 DB9 communication ports for remote monitoring of UPS and site power status
    • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity; supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
    • PowerAlert UPS monitoring and unattended shutdown software with complete USB and DB9 cabling included
    • Supports SNMP in large network applications with optional SNMPWEBCARD internal adapter
    • Supports Tripp Lite's WatchDog software application to automatically restore unresponsive programs by restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
    • 5 front panel LEDs and multi-function audible alarms offer status of line power, battery power, battery low/replace, voltage regulation and load level
    • Built-in cooling fan maintains optimal internal UPS temperature
    • Hot-swappable / user replaceable batteries allow on-site battery replacement while the UPS is fully installed
    • UPS battery set ships fully assembled and ready for installation, no time consuming battery connections required
    • Cold start capability enables UPS turn-on in battery mode during blackout conditions
    • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
    • $250,000 Ultimate Lifetime Insurance (USA and Canada only / 2 year manufacturers product warranty
    Package Contents
    • SMART1500RMXL2U UPS System
    • PowerAlert software with USB and DB9 cables
    • Mounting hardware for 4 post rackmount installation
    • Cable for Emergency Power Off interface
    • Instruction manual with warranty information
    Certifications & StandardsUL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
    Country of OriginChina
    Management
    Network ManagementSNMP Manageable
    AlarmUPS StartUp
    Low Battery
    Overload
    Power Failure
    Remote Shutdown
    Physical Characteristics
    Weight (Approximate)50.71 lb (23001.67 g)

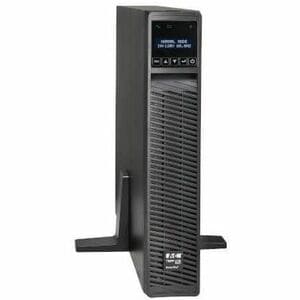

    Form FactorRack/Tower
    Rack Height2U
    Height3.45" (87.63 mm)
    Width17.20" (436.88 mm)
    Depth17.60" (447.04 mm)
    General Information
    Product TypeLine-interactive UPS
    Manufacturer Part NumberSMART1500RMXL2U
    Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
    ManufacturerEaton Corporation
    Product NameSMART1500RMXL2U UPS
    Product LineSmartPro
    Brand NameTripp Lite series
    Battery Information
    Battery Life6 Year
    Battery ChemistryLead Acid
    Hot SwappableYes
    Backup/Run Time (Half Load)15.10 Minute
    Backup/Run Time (Full Load)5.10 Minute
    Battery CharacteristicsValve-regulated
    Replaceable BatteryYes
    DC System Voltage48 V DC
    Typical Battery Recharge Time4 Hour
    Power Description
    Input Voltage120 V AC
    Output Voltage125 V AC
    120 V AC
    100 V AC
    110 V AC
    Waveform TypeSine Wave
    Output Frequency60 Hz
    Input Frequency60 Hz
    Load Capacity (VA)1.44 kVA
    Load Capacity (Watt)1.44 kW
    Output Power Factor1
    Technical Information
    Application/UsageNetwork Device
    High-end System
    Emergency Power OFFYes
    Plug/Connector TypeNEMA 5-15P
    Cord Length10 ft (3.05 m)
    PhaseSingle Phase
    Receptacle TypeNEMA 5-15R
    EMI/RFI Noise FilterYes
    AVRYes
    Transfer Time4 ms
    Receptacle Detail8 x NEMA 5-15R
