Acerca del producto
Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
- Audible alarm signals loss of utility power, overload and low battery

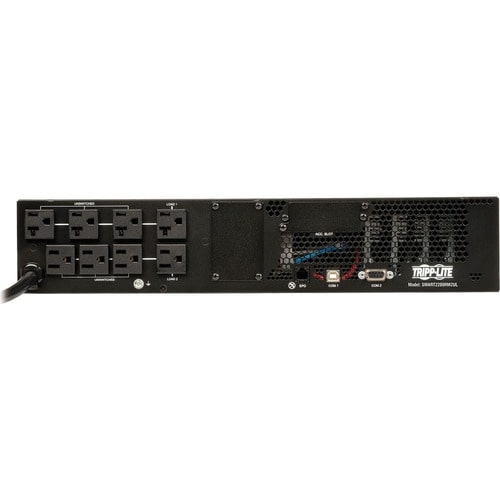

- 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets

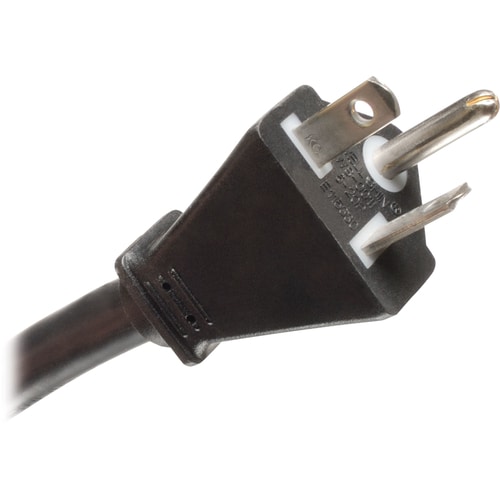

- 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
- 570-joule surge suppression rating
- 0.9 power factor rating
- 97% line-mode efficiency rating saves money in energy costs
- More than 2x the service life
- Up to 3x more charge/discharge cycles
- Recharges to 100% capacity in less than 2 hr.
- Weighs 60% less, reducing overall UPS weight
- Supports half load up to 11.7 min. and full load up to 5.1 min.
- Can control 2 outlets remotely to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-145V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

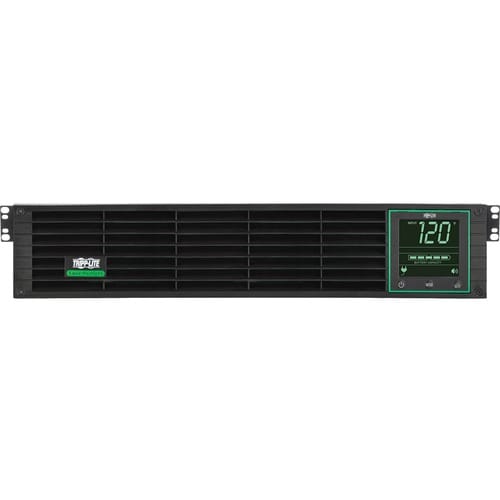

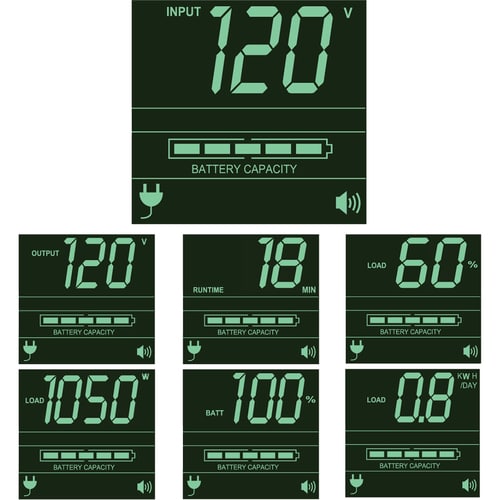

- Front-panel LCD with detailed UPS and site power status and operating data
- Rotates for easy viewing in rack-mount or tower configurations
- Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
- EPO port supports emergency shutdown in large facilities

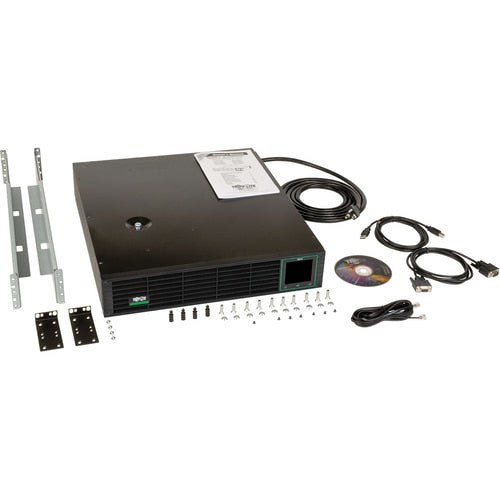

- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- $250,000 Ultimate Lifetime Insurance covers any connected components
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 2.20 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.92 kW load capacity
- 2.20 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 5.10 minute at full load
Especificaciones técnicas
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1343 BTU/h |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 11.70 Minute |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Typical Battery Recharge Time | 1.40 Hour |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Management | |
| Alarm | Overload |
| UPS StartUp | |
| UPS Fault | |
| Remote Shutdown | |
| Power Failure | |
| Low Battery | |
| Physical Characteristics | |
| Weight (Approximate) | 41.78 lb (18950 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87 mm) |
| Width | 19.45" (494 mm) |
| Depth | 17.32" (440 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART2200RM2UL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART2200RM2UL |
| Product Name | SmartPro SMART2200RM2UL 2200VA UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| 110 V AC | |
| Input Current | 16 A |
| Surge Energy Rating | 570 J |
| Waveform Type | Pure Sine Wave |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Technical Information | |
| Application/Usage | Server |
| Network Storage Device | |
| Emergency Power OFF | Yes |
| Protection Type | Over Voltage |
| Under Voltage | |
| Plug/Connector Type | NEMA 5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| NEMA 5-20 | |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 5 ms |
| Receptacle Detail | 4 x NEMA 5-20 |
| 4 x NEMA 5-15/20R |
