Acerca del producto

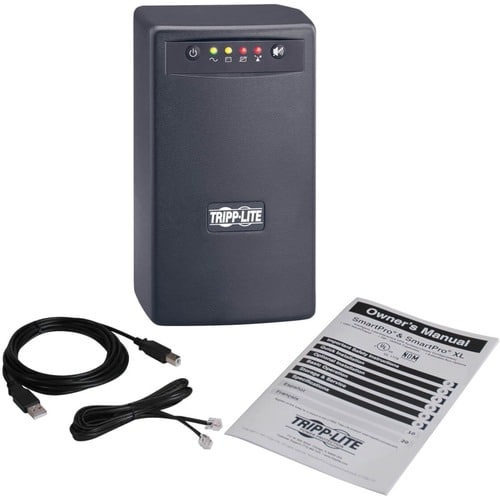

Line interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in, single-line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Offers 4 minute battery runtime with a full load of 550VA/300 watts and 15 minutes with a half load of 275VA/150 watts.
- 550VA tower 120V line interactive UPS
- Corrects brownouts as low as 89V without using battery power
- 3 UPS battery supported outlets, 3 surge-only outlets
- USB port, TEL/DSL/ethernet protection
- NEMA 5-15P input plug and 6 NEMA 5-15R outlets
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace" |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | On Battery |
| Warranty | |
| Additional Warranty Information | 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only). |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Physical Characteristics | |
| Weight (Approximate) | 14.40 lb (6531.73 g) |
| Form Factor | Tower |
| Height | 8.50" (215.90 mm) |
| Width | 5" (127 mm) |
| Depth | 6.50" (165.10 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Dataline Protection | RJ-11 |
| Protection Type | Surge |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 3 x NEMA 5-15R |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART550USB |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 550VA UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
