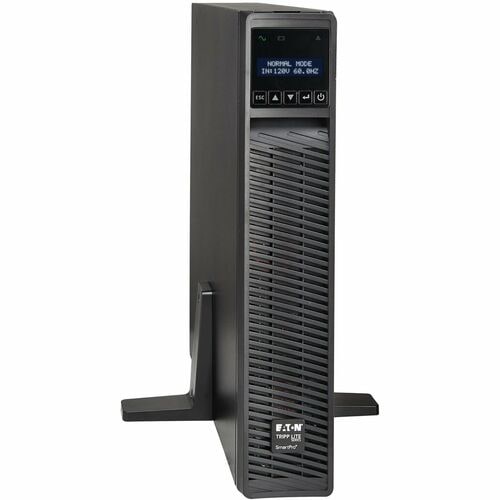

UPS SmartPro SMART750RMXL2UN de 750 VA para rack/torre de Tripp Lite by Eaton - 2U
UPS SmartPro SMART750RMXL2UN de 750 VA para rack/torre de Tripp Lite by Eaton - 2U
- Funciona adecuadamente en situaciones donde el suministro es propenso a caídas y sobretensiones.
- Experimente una mayor eficiencia con un menor coste energético
- Capacidad de carga de 600 W: energía de respaldo para sus valiosos dispositivos electrónicos
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles




Recently Viewed
UPS SmartPro SMART750RMXL2UN de 750 VA para rack/torre de Tripp Lite by Eaton - 2U
Resumen de información del producto

Acerca del producto
The series SmartPro rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART750RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components
Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART750RMXL2UN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 600 W load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 8.50 minute at full load
- Up to 8.50 minute runtime on full load to preserve critical data from power shortage interruptions
Especificaciones técnicas
Controls/Indicators | |
Status Indicators | Front Panel LCD Information And Configuration Screen:
|
Environmental Conditions | |
Thermal Dissipation | 109 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
Sound Emission (A-Weighted) | 45 dB(A) |
Interfaces/Ports | |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Battery Information | |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 20.70 Minute |
Backup/Run Time (Full Load) | 8.50 Minute |
Replaceable Battery | Yes |
DC System Voltage | 24 V DC |
Typical Battery Recharge Time | 4.50 Hour |
Physical Characteristics | |
Weight (Approximate) | 35.40 lb (16057.17 g) |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 3.46" (88 mm) |
Width | 17.36" (441 mm) |
Depth | 13.15" (334 mm) |
Management | |
Network Management | SNMP/Telnet/SSH |
Alarm | Overload |
Power Failure | |
Remote Shutdown | |
Low Battery | |
UPS Fault | |
UPS StartUp | |
General Information | |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMART750RMXL2UN |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | SMART750RMXL2UN |
Product Name | SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS |
Product Line | SmartPro |
Brand Name | Tripp Lite by Eaton |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 115 V AC |
110 V AC | |
120 V AC | |
Surge Energy Rating | 570 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 750 VA |
Load Capacity (Watt) | 600 W |
Technical Information | |
Application/Usage | Digital Signage |
Telecommunication | |
Server | |
Security System | |
Retail Building | |
Network Device | |
Network Closet | |
Mission Critical Equipment | |
Casino | |
Wiring Closet | |
Gaming Console | |
Hotel/Motel Management | |
Overload Protection | Yes |
Plug/Connector Type | NEMA 5-15P |
Phase | Single Phase |
Receptacle Type | NEMA 5-15R |
EMI/RFI Noise Filter | Yes |
AVR | Yes |
Transfer Time | 4 ms |
Receptacle Detail | 6 x NEMA 5-15R |
