Acerca del producto

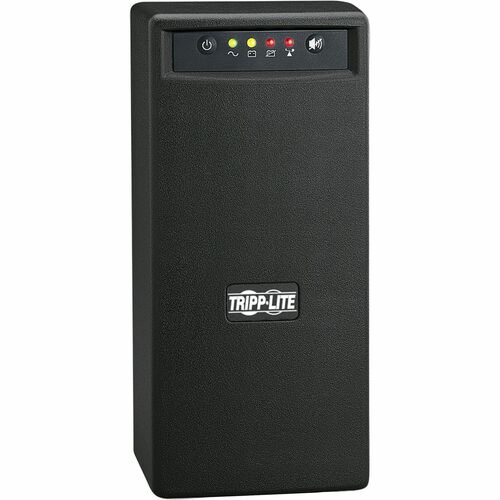

Line Interactive UPS system with six outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 45 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in dataline protection jacks offer protection of a single dialup phone/DSL line or network Ethernet connection. Offers 3-minute battery runtime with a full load of 750VA/450 watts and 11 minutes with a half load of 375VA/225 watts. Supports battery replacement via built-in access panel.
- 750VA tower 120V line interactive UPS
- Corrects brownouts as low as 89V without using battery power
- 3 UPS battery supported outlets, 3 surge-only outlets
- USB port, TEL/DSL/ethernet protection
- NEMA 5-15P input plug and 6 NEMA 5-15R outlets
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace" |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | On Battery |
| Warranty | |
| Additional Warranty Information | 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only). |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 510 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Physical Characteristics | |
| Weight (Approximate) | 17.40 lb (7892.51 g) |
| Form Factor | Tower |
| Height | 11" (279.40 mm) |
| Width | 5.50" (139.70 mm) |
| Depth | 7.50" (190.50 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Protection Type | Surge |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART750USB |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 750VA SMART750USB UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
