Acerca del producto

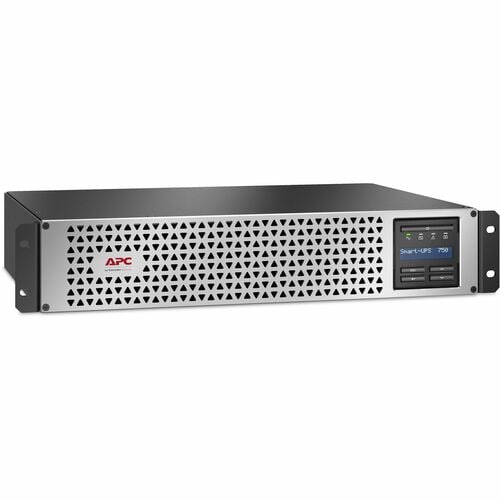

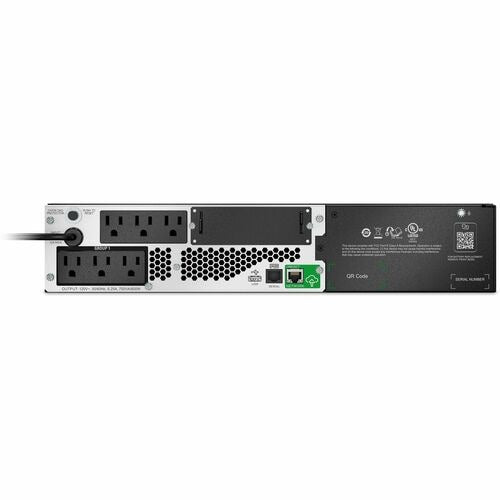

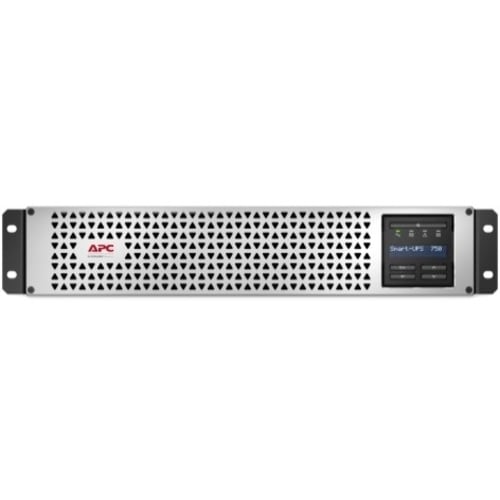

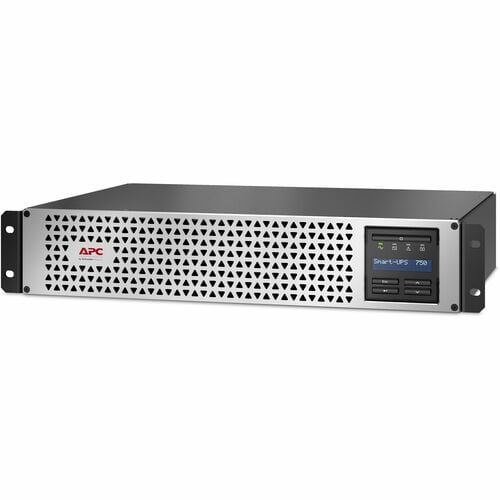

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- APC Smart-UPS Li-Ion, Short Depth 750VA, 120V with SmartConnect
- Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
- SMTL750RM2UC not sold in Vermont - select available recommended replacement SMT750RM2UC
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED status indicators: Quickly understand unit and power status with visual indicators. |
| Warranty | |
| Additional Warranty Information | 5 year repair or replace |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | Configurable Delay |
| Low Battery | |
| On Battery | |
| Environmental Conditions | |
| Thermal Dissipation | 70 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 25000 ft (7620000 mm) |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 13.80 Minute |
| Backup/Run Time (Full Load) | 5.70 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL750RM2UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Model | SMTL750RM2UC |
| Product Name | Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 680 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Physical Characteristics | |
| Weight (Approximate) | 34 lb (15422.14 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.39" (86 mm) |
| Width | 17.24" (438 mm) |
| Depth | 12.52" (318 mm) |
| Product Color | Silver |
| Black | |
| Color Family | Dual Color |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | NOM |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL750RM2UC_ROHS_DECLARATION&p_FileName=SMTL750RM2UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500682&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500682&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | Security System |
| Router | |
| Switch | |
| Server | |
| POS Terminal | |
| Network Hub | |
| Network Device | |
| Communication System | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 10 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
