Acerca del producto

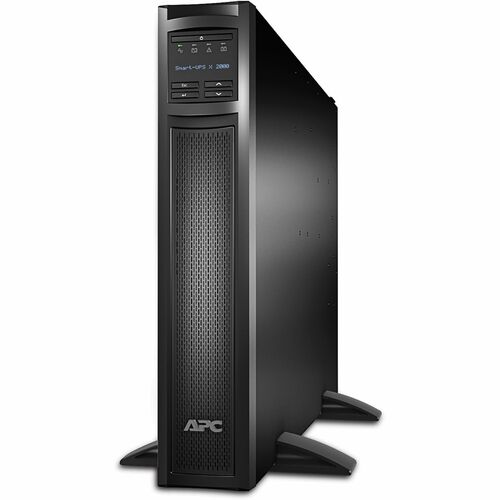

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Works adequately in situations where the supply is prone to sags and surges
- 1.92 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
- 1.92 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 10.90 minute at full load
- Up to 10.90 minute runtime on full load to preserve critical data from power shortage interruptions
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED Status Indicators:
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 203 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Management | |
| Network Management | USB |
| Alarm | On Battery |
| Low Battery | |
| Configurable Delay | |
| Changing Utility Power | |
| Overload | |
| UPS Power Condition | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX2KR2UNCX145 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS X 1920VA Rack/Tower UPS |
| Product Line | Smart-UPS |
| Product Series | X |
| Brand Name | APC by Schneider Electric |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Energy | 2484 kJ |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 27.60 Minute |
| Backup/Run Time (Full Load) | 10.90 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 70 V AC - 153 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Physical Characteristics | |
| Weight (Approximate) | 84.77 lb (38451.03 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.26" (667 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute® Business Edition Software |
| Certifications & Standards | BSMI|CSA|NOM|TÜV|VCCI Class A |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2KR2UNCX145_ROHS_DECLARATION&p_FileName=SMX2KR2UNCX145KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326959&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326959&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Battery Directive | |
| Restriction of Hazardous Substances (RoHS) | |
| Technical Information | |
| Application/Usage | Server |
| Switch | |
| Storage Device | |
| Security System | |
| Router | |
| POS Terminal | |
| Network Hub | |
| Network Device | |
| IT Equipment | |
| Critical System | |
| Communication System | |
| Business | |
| Plug/Connector Type | NEMA L5-20P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L5-20P |
| AVR | Yes |
| Number of Battery & Surge Outlets | 7 |
| Transfer Time | 4 ms |
| Receptacle Detail | 1 x NEMA L5-20R |
| 3 x NEMA 5-15R | |
| 3 x NEMA 5-20R |
