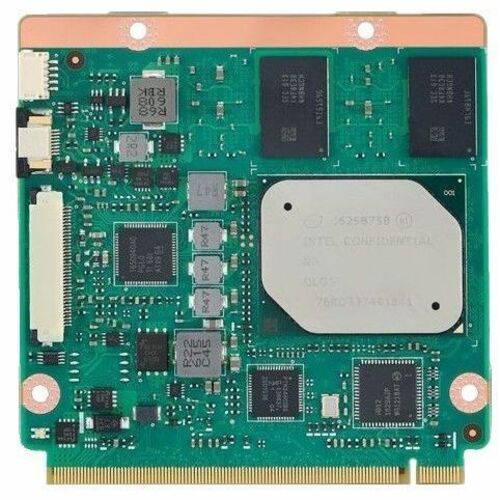

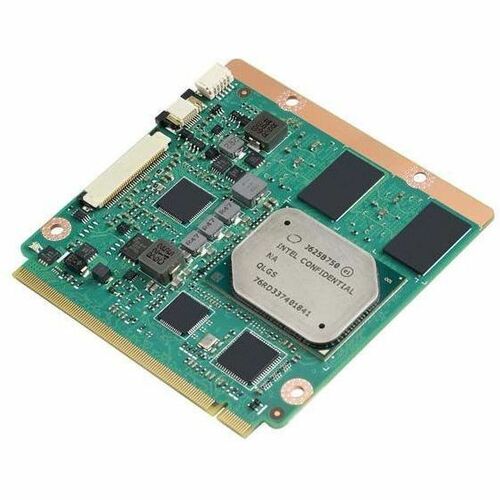

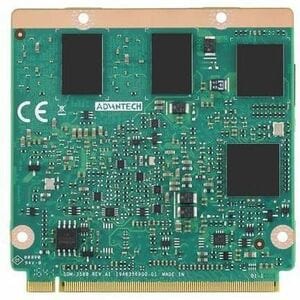

Acerca del producto
- Intel® Atom™/Pentium®/Celeron® Series SoC
- Qseven® 2.1 Specification
- Onboard LPDDR4 up to 8GB, onboard eMMC up to 64GB
- Support HEVC/H.265, H.264 MPEG2 HW Decode
- GbE, 4 PCIe x1, 2 USB3.0, 6 USB2.0
- Supports iManager WISE-PaaS/RMM, and Embedded Software APIs
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Flash Memory Capacity | 32 GB |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Module |
| Width | 2.76" (70 mm) |
| Depth | 2.76" (70 mm) |
| Processor & Chipset | |
| Processor Speed | 1.60 GHz |
| Processor Type | Atom x7 |
| Processor Model | E3950 |
| Processor Core | Quad-core (4 Core) |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4 |
| Memory Card Supported | SD |
| SDIO | |
| SDXC | |
| Memory Card Reader | Yes |
| General Information | |
| Product Type | Single Board Computer |
| Manufacturer Part Number | SOM-3569CNBCB-S7A1 |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | SOM-3569CNBCB-S7A1 |
| Product Name | SOM-3569CNBCB-S7A1 Single Board Computer |
| Brand Name | Advantech |
