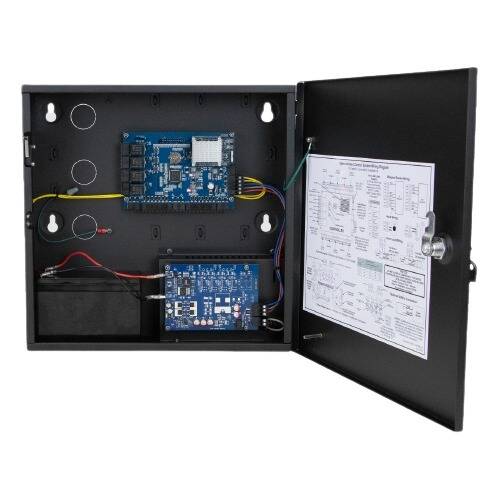

Speco SPE-A2E4 2-Door Access Controller, Exp to 4 Door with Basic Power
Speco SPE-A2E4 2-Door Access Controller Features
- Embedded Linux operating system
- Expandable up to 4 doors (when used with A2M board)
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global
- UL listed- 294 Series 7
- 5-year warranty
- NDAA Compliant
Speco SPE-A2E4 2-Door Access Controller Technical Specifications
- Processor: Quad Core Cortex, 1.5 GHz
- Memory: 1GB DDR3 & 8GB eMMc
- Operating System: Embedded Linux
- Transactions: > 45 per second
- System Power Requirements: 115VAC @ 1.5A
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Enclosure Size (W x H x D): 14.25 x 14.25 x 3.75in (362 x 362 x 95mm)
- Internal Power Supply: Controller & Readers Only
- Lock Power Output: NA
- Battery Backup: Controllers & Readers Only
- Recommended Battery Type (battery is not included):
- Powersonic PS-1270-FI or Similar
- 12V, 7AH, Sealed Lead Acid with 0.187-inch terminals
- Standby Power Requirement: 400mA @ 12V
- Readers (Wiegand): 4 Total, One In & One Out Reader for Each Door
- Reader Power:
- 300mA @ 12V Max per Reader
- 1000mA @ 12V Max per System
- Request to Exit (REX): Inputs 2 Total, One for Each Door
- Door Position (status): Inputs 2 Total, One for Each Door
- Auxiliary Input: 2 Total, General Purpose
- Tamper Digital Input: Yes, Prewired on Units with Integrated Power
- Power Fault Digital Input: Yes, Prewired on Units with Integrated Power
- Door Lock Outputs: 2 Form C Relay, 24V @ 2.0A
- Auxiliary Outputs: 2 Form C Relay, 24V @ 2.0A
