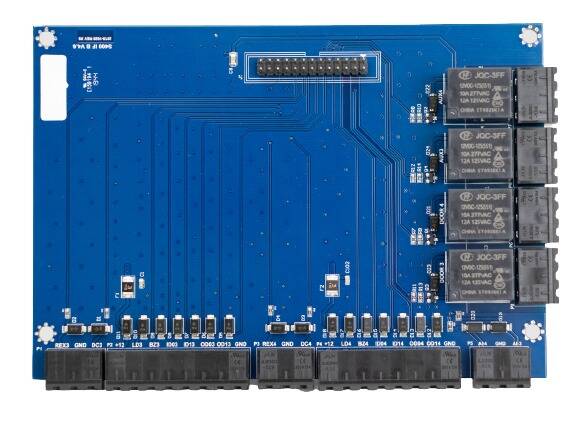

Speco SPE-A2M 2-Door Expansion Board
Speco SPE-A2M 2-Door Exp Board Features
- Expands A2E4/A2E4P up to 4 doors
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global
- UL listed- 294 Series 7
- 5-year warranty
- NDAA Compliant
Speco SPE-A2M 2-Door Exp Board Technical Specification
- Model: A2M
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Dimensions: 6.125 x 4.25 x 0.75in
- Internal Power Supply: Controller & Readers Only
- Readers (Wiegand): 4 Total, One In & One Out Reader for Each Door
- Reader Power:
- 300mA @ 12V Max per Reader
- 1000mA @ 12V Max per System
- Request to Exit (REX): Inputs 2 Total, One for Each Door
- Door Position (status): Inputs 2 Total, One for Each Door
- Auxiliary Input: 2 Total, General Purpose
- Door Lock Outputs: 2 Form C Relay, 24V @ 2.0A
- Auxiliary Outputs: 2 Form C Relay, 24V @ 2.0A
Especificaciones técnicas
Speco SPE-A2M 2-Door Expansion Board
Speco SPE-A2M 2-Door Exp Board Features
- Expands A2E4/A2E4P up to 4 doors
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global
- UL listed- 294 Series 7
- 5-year warranty
- NDAA Compliant
Speco SPE-A2M 2-Door Exp Board Technical Specification
- Model: A2M
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Dimensions: 6.125 x 4.25 x 0.75in
- Internal Power Supply: Controller & Readers Only
- Readers (Wiegand): 4 Total, One In & One Out Reader for Each Door
- Reader Power:
- 300mA @ 12V Max per Reader
- 1000mA @ 12V Max per System
- Request to Exit (REX): Inputs 2 Total, One for Each Door
- Door Position (status): Inputs 2 Total, One for Each Door
- Auxiliary Input: 2 Total, General Purpose
- Door Lock Outputs: 2 Form C Relay, 24V @ 2.0A
- Auxiliary Outputs: 2 Form C Relay, 24V @ 2.0A
