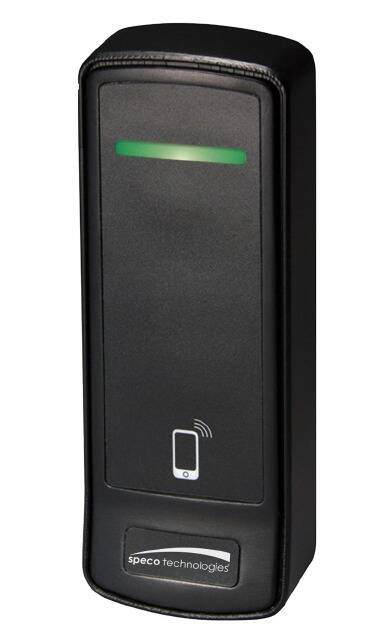

Speco SPE-ACSR35L Contactless Smart Card Reader- Bluetooth
Speco SPE-ACSR35L Smart Card Reader Features
- Up to 15 feet of reading range
- Contactless smartcard reader solution with Mobile: access support
- Digital Radio Frequency Identification (RFID) platform
- Supports both sector and card serial number (CSN) reads
- Offers the option of Mobile: access credentials loaded on Bluetooth Low Energy (BLE) enabled smartphones or contactless smartcard module
- IP67 compliant, weather resistant
- Tamper-resistant
- Lifetime warranty
- NDAA Compliant*
Speco SPE-ACSR35L Smart Card Reader Specification
- Model Long-Range Mobile: Ready Contactless Smartcard Reader
- Technology: Contactless smartcard and Bluetooth Low Energy (BLE)
- Frequency: 13.56 MHz (contactless smartcard) and 2.4 GHz (BLE)
- Mounting: A single reader for metal door and window frames, single-gang wall boxes, and flat surfaces
- Dimensions Mullion: 1.7” W × 4.7” H × 1.2” D (43 mm × 119 mm × 30 mm)
- Switch Plate: 3” W × 5.1” H × 1.2” D (76 mm × 130 mm × 30 mm)
- Certifications: FCC, ICC, CE, UL Standard 294
- IP Code: IP67
- Voltage: +8-14 VDC
- Current Draw: 40mA typical @ 12VDC, 195mA peak
- Read Range Physical Credentials: up to 1.5 inches (38 mm)
- Mobile Credentials: Up to 15 feet (4.6 m)
- Cabling: 24 AWG minimum, multiconductor stranded with an overall foil sheild
- Interface Wiegand: (26-64bit integrated binary card decoder and 32 formats, ABA Track II magnetic stripe (clock and data) or OSDP
- Operating Temperature: 40°F to 149°F (-40°C to 65°C)
- Audio: Tone Beeper included standard
- Indoor & Outdoor Installation: Electronics sealed in weather- and tamper-resistant epoxy potting
- Warranty: Lifetime warranty
- LED: Five-state standard (blue, red, green, amber, and off)
- Technologies Supported: Interoperable with CSN7 (may include ISO 14443 compliant credentials and MIFARE® Classic 1k & 4k, MIFARE® DESFire® EV1 & EV2, MIFARE UltraLight®, and MIFARE Plus®), and Sector (may include DeltaCard Sector8, such as MIFARE® Classic 1k & 4k, MIFARE® DESFire® EV1 & EV2, as well as FIPS201 [PIVType A], TWIC, and CAC credentials), as well as Conekt Mobile: Access Credentials
