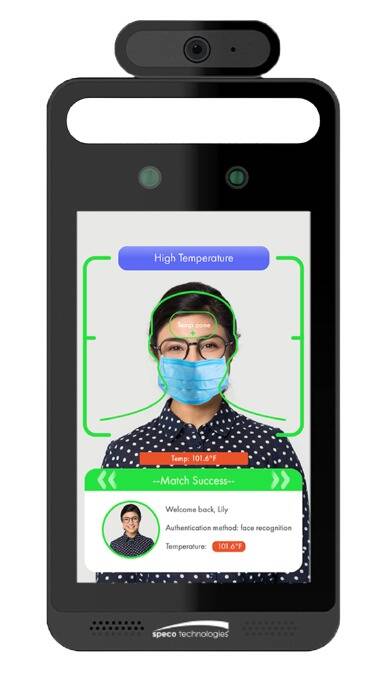

The Speco SPE-O2TML 2MP Temperature Reading Panel with Face and Mask Recognition
Speco SPE-O2TML 2MP Temp Panel Features:
- 8-inch LCD screen
- Supports IR high-accuracy body temperature measurement
- Can recognize faces with masks
- Triggers voice alarm when abnormal temperature or mask-less face is detected
- Deep learning algorithm with high face recognition accuracy rate
- Supports remote live view and two-way talk
- 12VDC power supply included (PSW5)
- 1 year warranty
Performance:
- OS: Embedded Linux
- Storage: 8Gb DDR3 + 16Gb EMMC
Screen:
- Display Screen: 8inch LCD screen; resolution: 1280x800; contrast: 500:1
- Brightness: 500 lux
Temperature Measurement:
- Temperature Measuring Range: 0~50?C (32?~122?F)
- Accuracy: ± 0.3?C (0.5?F)
- Measuring Distance: 0.3~0.5m (1ft~1.6ft)
Face Recognition
- Sensor: 1/2.7
- Lens: 2MP dual-lens, f=3.97mm @ F1.6
- WDR: 120db
- Height Range of Face Recognition: 1.2m-2.2m (3.9ft- 7.2ft) (the recommended installation height is 1.45m) (4.75ft)
- Face Recognition Distance: 0.3m-2m (1ft- 6.5ft)
- Recognition Mode: Face: 1: N
- Recognition Duration: ? 0.5 s per person
- Face Capacity: 20,000
- Recognition Accuracy: 99.7%
Supplementary Light
- Fill-in Light: Soft white light, IR light
- White Light Distance: 1-3m (3.2ft- 10ft)
Smart Linkage
- Screen Wakeup: Yes
- Light Adjustment: Yes
- Snapshot: Yes
Audio
- Two-way Talk: Yes (noise reduction and echo cancellation)
- Audio Input: 1CH built-in MIC
- Audio Output: Built-in speaker
Interface
- Network Interface: 10/100Mbps self-adaptive Ethernet port x1
- Maximum simultaneous remote users: 10
- Alarm Input: 2 CH
- Alarm Output: 2 CH
- Wiegand Interface: Wiegand input/output (26/34)
- RS485: RS485x1 (half duplex)
- Door Lock Output: Relay output, NO/NC (optional), delay setting supported
- SD Card Interface: 1 micro SD card slot, up to 128GB
- USB Interface: USB x1
- Anti-Tamper Interface: 1 button
- Exit Button: 1
- Reset Button: 1
Others
- Power: 12V @1A (not included)
- Power Management: Screen sleep, screen protection
- Power Consumption: <12W
- Weight: Approx. 1.2KG (2.6lbs)
- Installation: Wall Mounting, Pole Mounting, Embedded Installation, Desktop
- Protection: IP66, Surge Protection, and Voltage Transient Protection
- Working Environment: -20°C~60°C (-4°F~140°F) , <95% (non-condensing)
- Dimensions: 301.8mm x 138.6mm x 34.2mm, 11.8”(H) x 5.4”(W) x 1.3”(D)
