Acerca del producto
The Speco 6MP IP Indoor/Outdoor 360° 1.65mm Fisheye Camera captures a full 360° de-warped view from ceiling installation, and 180° view from wall mount installation with resolutions up to 2160 x 2160 @ 30 FPS (de-warped). With an IP67 compliant weather-resistant exterior, smart day/night IR up to 100’ from the camera and 2-way audio capabilities with optional audio in/out, you can monitor an entire property from a single point on your PoE-powered system. Built-in standard PoE installation with microSD backup recording allows for partially standalone and creative landscape recording applications.

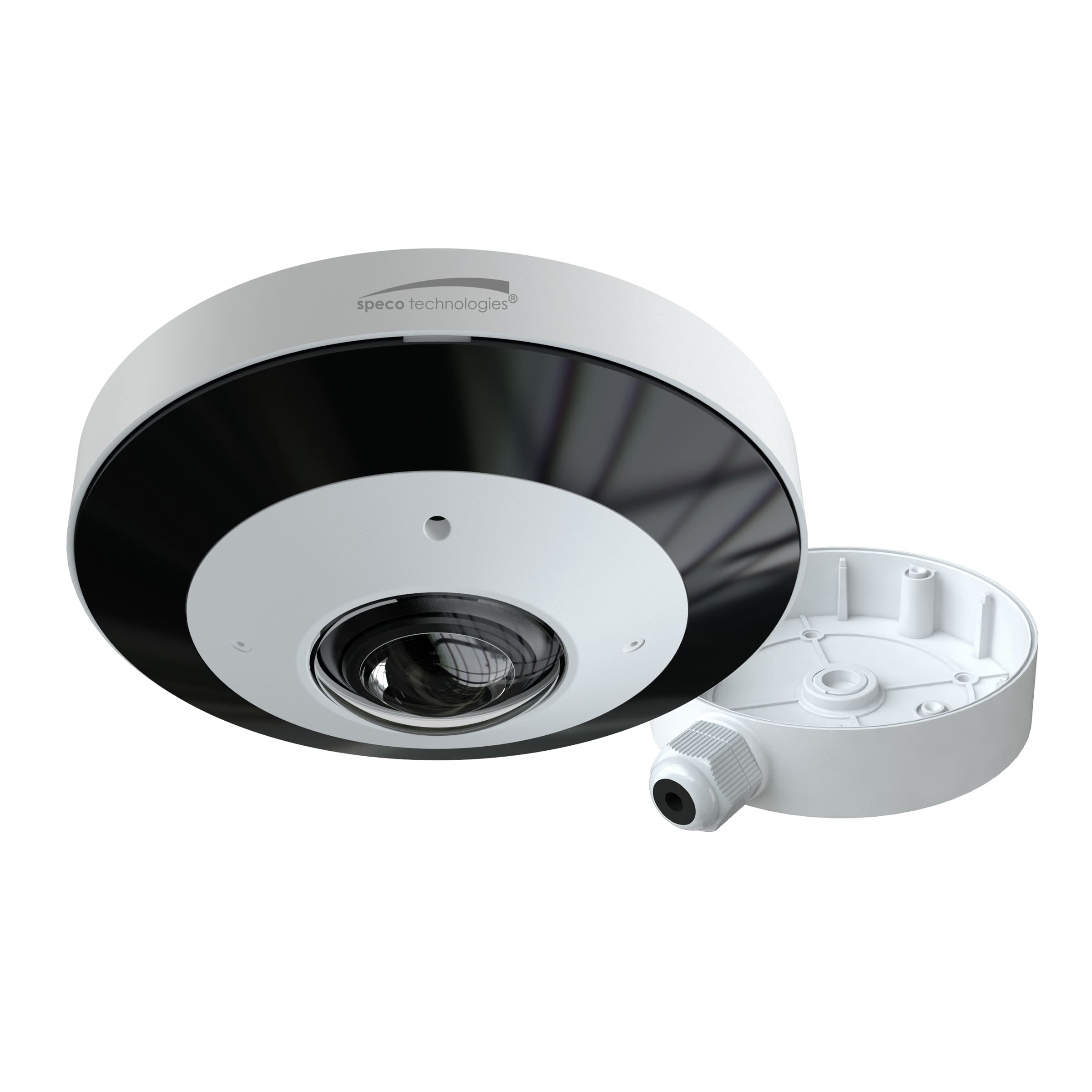

Includes junction box. NDAA compliant. Optional 12VDC power supply not included.
SPE-O6MDP4 Specs and Features
- Image Sensor: Progressive scan 1/2.5” CMOS, 6MP
- Field of View: 180° (wall mounted); 360° (ceiling mounted)
- Minimum Illumination: 0.01 lux @ F2.0, AGC ON; 0 lux with IR
- Day/Night: Smart IR, White LED
- White Balance: Auto, Indoor, Outdoor, Manual
- Compensation: True WDR, BLC, HLC
- Electronic Shutter Speed: 1/3 ~ 1/100000s
- DNR: 3D DNR
- Main Resolution:
- Mode 1 - Fisheye + Panoramic + 3 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- Panoramic view: 3200x1800, 1920x1080 (@ 30fps)
- 3PTZ view: 1280x720 *3 (@ 15fps)
- Mode 2 - Fisheye + 4 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ view: 1280x720 *4 (@ 15fps)
- Mode 3 - Fisheye + 4 PTZ Fusion
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ fusion view: 1280x720 (@ 20fps)
- Mode 1 - Fisheye + Panoramic + 3 PTZ
- Compression: H.265, H.264, MJPEG
- Audio In/Out: 2-way audio capable ready
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, QoS, HTTP Post
- DDNS support: Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/MAC address filtering, digest authentication
- User Access: Max. 6 simultaneous users.
- PoE: Standard (IEEE 802.3af)
- Alarm Triggers: Motion detection, sensor alarm
- Alarm Events: MicroSD recording, FTP upload
- Image Settings: Region of interest, saturation, brightness, chroma, contrast, noise reduction
- Ethernet: 10/100 Mbps
- Power: DC jack
- Audio Output: 3.5mm
- Microphone Input: 3.5mm + 2 Ch built-in mic
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm: 1 Ch alarm input; 1 Ch alarm output
- Video Output: CVBS output (BNC x 1)
- Other: RS 485 (PTZ Control)
- Reset: Yes
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: 10W (max)
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 5.11” (Dia.) x 1.82” (H)
- Unit Weight: 1.13 lb.
- Certifications: FCC, RoHS
- IP67 Compliant
- NDAA Compliant
- Package Includes: 1x SPE-O6MDP4, 1x junction box, mounting hardware, instructions
- 5-year Manufacturer’s Warranty
Especificaciones técnicas
The Speco 6MP IP Indoor/Outdoor 360° 1.65mm Fisheye Camera captures a full 360° de-warped view from ceiling installation, and 180° view from wall mount installation with resolutions up to 2160 x 2160 @ 30 FPS (de-warped). With an IP67 compliant weather-resistant exterior, smart day/night IR up to 100’ from the camera and 2-way audio capabilities with optional audio in/out, you can monitor an entire property from a single point on your PoE-powered system. Built-in standard PoE installation with microSD backup recording allows for partially standalone and creative landscape recording applications.
Includes junction box. NDAA compliant. Optional 12VDC power supply not included.
SPE-O6MDP4 Specs and Features
- Image Sensor: Progressive scan 1/2.5” CMOS, 6MP
- Field of View: 180° (wall mounted); 360° (ceiling mounted)
- Minimum Illumination: 0.01 lux @ F2.0, AGC ON; 0 lux with IR
- Day/Night: Smart IR, White LED
- White Balance: Auto, Indoor, Outdoor, Manual
- Compensation: True WDR, BLC, HLC
- Electronic Shutter Speed: 1/3 ~ 1/100000s
- DNR: 3D DNR
- Main Resolution:
- Mode 1 - Fisheye + Panoramic + 3 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- Panoramic view: 3200x1800, 1920x1080 (@ 30fps)
- 3PTZ view: 1280x720 *3 (@ 15fps)
- Mode 2 - Fisheye + 4 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ view: 1280x720 *4 (@ 15fps)
- Mode 3 - Fisheye + 4 PTZ Fusion
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ fusion view: 1280x720 (@ 20fps)
- Mode 1 - Fisheye + Panoramic + 3 PTZ
- Compression: H.265, H.264, MJPEG
- Audio In/Out: 2-way audio capable ready
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, QoS, HTTP Post
- DDNS support: Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/MAC address filtering, digest authentication
- User Access: Max. 6 simultaneous users.
- PoE: Standard (IEEE 802.3af)
- Alarm Triggers: Motion detection, sensor alarm
- Alarm Events: MicroSD recording, FTP upload
- Image Settings: Region of interest, saturation, brightness, chroma, contrast, noise reduction
- Ethernet: 10/100 Mbps
- Power: DC jack
- Audio Output: 3.5mm
- Microphone Input: 3.5mm + 2 Ch built-in mic
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm: 1 Ch alarm input; 1 Ch alarm output
- Video Output: CVBS output (BNC x 1)
- Other: RS 485 (PTZ Control)
- Reset: Yes
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: 10W (max)
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 5.11” (Dia.) x 1.82” (H)
- Unit Weight: 1.13 lb.
- Certifications: FCC, RoHS
- IP67 Compliant
- NDAA Compliant
- Package Includes: 1x SPE-O6MDP4, 1x junction box, mounting hardware, instructions
- 5-year Manufacturer’s Warranty
