Acerca del producto

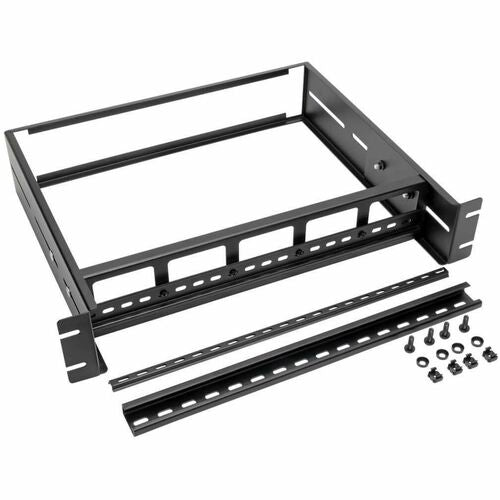

DIN Rail-Mounting Kit Compatible with Wide Range of Equipment
This 2U rack-mount DIN kit includes top hat, mini top hat and G-style rails, making it compliant with an array of DIN rail equipment, such as power supplies, bell transformers, terminal strips, programmable time switches and circuit breakers. The adjustable rails can be easily set back to match DIN rail equipment of any depth.
Premium Construction Designed to Endure in Busy Rack Applications
The SRDINRAIL2U DIN rail-mounting kit is made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack décor. It mounts into 2U of space in an EIA-standard 19-inch open frame rack or floor-standing rack enclosure. Rack-mounting hardware is included for quick installation right from the box.
2-Year Warranty and Environmentally Responsible Design
The SRDINRAIL2U comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
- Rack Rail offers practical and convenient storage and organization solutions that are adaptable to your space
- Rack Rail allows you to effectively utilize most of the space available with maximum dependability
- Rack-mountable rack rail allows a clutter-free, convenient storage with increased efficiency
- Rack-mountable rack rail allows maximum space utilization with easy and convenient access to the equipment
- Built with cold-rolled steel (crs) which enhances the design and general presentation style of #atr#1100#
- Built with cold-rolled steel (crs) to offer great resistance to damage and deterioration
- Comes in black color for an elegant and fashionable look
- Comes in black color to better suit your theme and style
- Comes in black color for a sophisticated and dazzling loo
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Rail |
| Manufacturer Part Number | SRDINRAIL2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRDINRAIL2U |
| Product Name | Adjustable Rack-Mount DIN Rail Kit - Top Hat, Mini Top Hat and G-Style Rails |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 5.95 lb (2700 g) |
| Form Factor | Rack-mountable |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 18.98" (482 mm) |
| Depth | 14.11" (358.40 mm) |
| Static/Stationary Weight Capacity | 39.68 lb (18000 g) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Cold-rolled Steel (CRS) |
