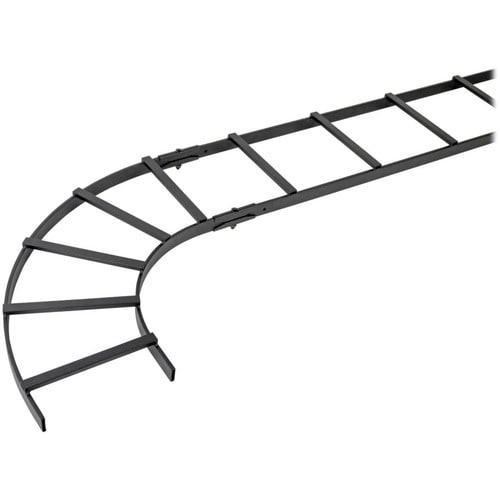

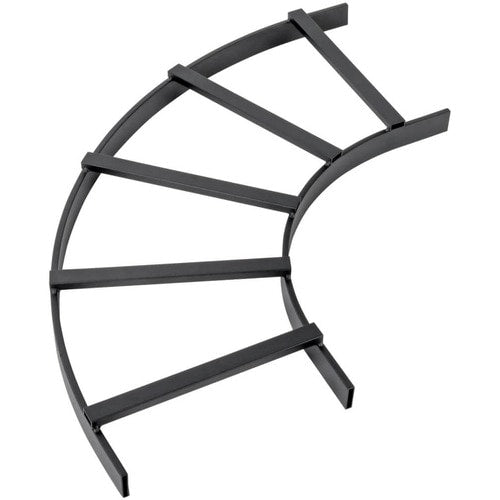

Cable Runway E-Bend Creates a 90-Degree Gradual Sweep for Horizontal Cable Ladder Runs
The SmartRack SRL90BEND18 allows you to place a curved right angle in your horizontal cable runway application. It connects to your 18-inch cable runway above your rack enclosure or open frame rack to allow flexibility in your overhead cable routing. Install it either parallel or perpendicular to the rack for clean, organized cable routing across an aisle or within a row.
Measures 18 in. Wide with a 33 in. Wide Bend
This cable E-bend conforms to minimum-bend radius requirements (typically four times the cable diameter). It's made from lightweight tubular steel measuring 1.5 x 0.375 inches (38 x 9.5 millimeters). It fits 18-inch (457-millimeter) cable runway widths, and meets Cat5e/6/6a requirements.
Designed for Use with Tripp Lite Rack Cabling Components
The SRL90BEND18 ships fully assembled for connecting right out of the package. It's compatible with Tripp Lite's 18-inch SRCABLELADDER18 and SRLBUTTSPLICE kit for toolless assembly. All Tripp Lite accessories are sold separately.
Typical Applications
- Neatly bundle cable across an aisle or within a row of bayed racks in your data center
System Requirements
- Works with SRCABLELADDER18 and SRLBUTTSPLICE
Especificaciones técnicas
| Product Information | |
| Cable Manager Type | Cable Ladder Bend |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Tripp Lite SmartRack |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Cable Organizer |
| Manufacturer Part Number | SRL90BEND18 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | SRL90BEND18 |
| Product Name | Cable Ladder Runway E-Bend - 90 Degrees, 18 in. Width |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 5.92 lb (2684.81 g) |
| Height | 33.1" (839.98 mm) |
| Width | 33.1" (839.98 mm) |
| Depth | 2" (50.80 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
