Acerca del producto
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 10U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L5-20R, 4x NEMA L6-20R, 2x NEMA L6-30R, and 2x NEMA L14-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Especificaciones técnicas
| Management | |
| Network Management | SNMP Manageable |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 10 kVA |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT10KRMXLT-10KTF |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 / Pallet |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 10kVA RM with 208/240V to 120V 10kVA Step-Down Transformer |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 465.99 lb (211369.51 g) |
| Form Factor | Rack-mountable |
| Rack Height | 10U |
| Height | 17.24" (438 mm) |
| Width | 17.01" (432 mm) |
| Depth | 29.49" (749 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |

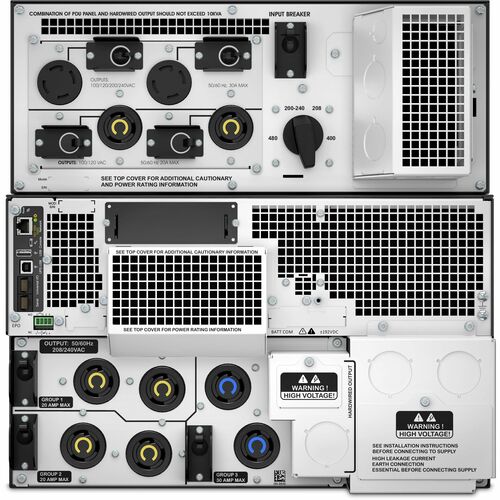

| Receptacle Type | Hard Wire 3-wire (2PH + G) |
| NEMA L6-20R | |
| NEMA L6-30R | |
| Hard Wire 4-wire (2PH+N+G) | |
| NEMA L14-30R | |
| NEMA L5-20R | |
| Number of Battery & Surge Outlets | 11 |
| Receptacle Detail | 4 x NEMA L6-20R |
| 2 x NEMA L6-30R | |
| 2 x NEMA L5-20R | |
| 2 x NEMA L14-30R | |
| 1 x Hard Wire 4-wire (2PH+N+G) | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778 |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KRMXLT-10KTF_ROHS_DECLARATION&p_FileName=SRT10KRMXLT-10KTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135455&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135455&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
