Acerca del producto

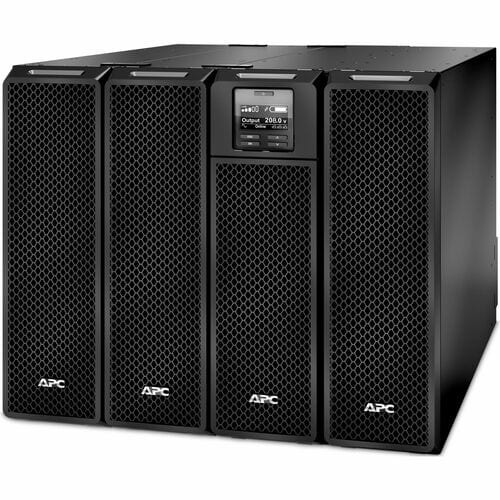

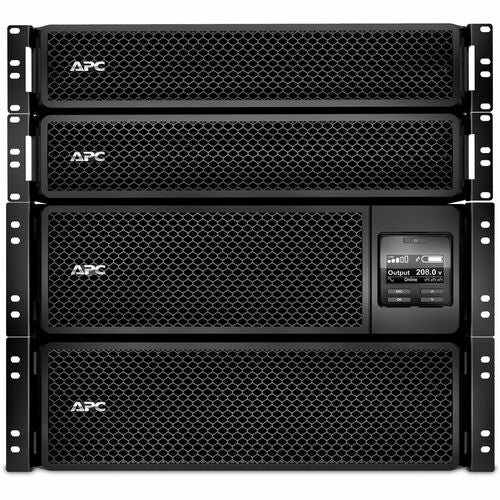

Este Smart-UPS de APC está diseñado para profesionales de TI o administradores de red, lo que permite mantener la actividad y la continuidad del negocio. Este SAI de torre en línea de 10 kVA proporciona energía de onda sinusoidal pura y una autonomía prolongada para respaldar dispositivos electrónicos críticos durante cortes de suministro eléctrico. Incluye entrada de 3 hilos (2P+E) con cableado fijo, 16 tomacorrientes NEMA 5-20R, 4 L6-20R, 6 L6-30R y 2 L14-30R. El SAI incorpora una tarjeta de administración de red (NMS) para la monitorización y gestión de la red. El SAI incluye PowerChute Network Shutdown, que permite el apagado ordenado de servidores físicos, máquinas virtuales y clústeres HCI. Cuenta con una ranura SmartSlot adicional para tarjetas opcionales, como la tarjeta de E/S de contacto seco. El SAI se puede conectar a EcoStruxure IT o a plataformas de gestión centralizada de terceros. El SAI tiene una garantía de 3 años y la batería de plomo-ácido integrada tiene una garantía de 2 años. El UPS es compatible con los kits de rieles SRTRK2 (4 postes) y SRTRK3 (2 postes) que se venden por separado.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| 120 V AC | |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 10 kVA |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT10KXLT-5KTF2 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 10kVA with two 208/240V to 120V 5kVA Step-Down Transformers |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 496 lb (224981.82 g) |
| Form Factor | Rack-mountable |
| Height | 17.01" (432 mm) |
| Width | 20.55" (522 mm) |
| Depth | 28.15" (715 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Technical Information | |

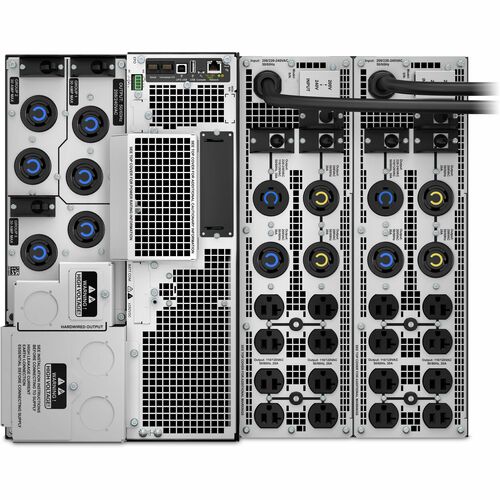

| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-20R |
| NEMA 5-20R | |
| NEMA L14-30R | |
| NEMA L6-30R | |
| Hard Wire 3-wire (2PH + G) | |
| Number of Battery & Surge Outlets | 28 |
| Receptacle Detail | 6 x NEMA L6-30R |
| 4 x NEMA L6-20R | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| 16 x NEMA 5-20R | |
| 2 x NEMA L14-30R | |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778 |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KXLT-5KTF2_ROHS_DECLARATION&p_FileName=SRT10KXLT-5KTF2KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135462&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135462&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
