Acerca del producto

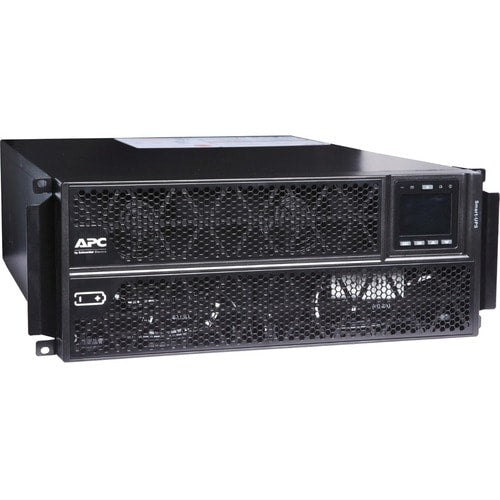

Smart-UPS On-Line RT 5KVA is capable of supporting loads in a flexible rack/tower convertible form. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
- 5 kVA load capacity - work without any interruption during power outages
- 4.75 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 4.75 kW load capacity
- 5 kVA load capacity provides sufficient backup during power failures
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED Status Display:
|
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Philippines |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | On Battery |
| Low Battery | |
| Overload | |
| Environmental Conditions | |
| Thermal Dissipation | 1108 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Energy | 3456 kJ |
| Number of Batteries | 2 |
| DC System Voltage | 96 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Technical Information | |
| Application/Usage | Business-critical System |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R |
| Number of Battery & Surge Outlets | 2 |
| Receptacle Detail | 2 x NEMA L6-30R |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTG5KXLT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS On-Line 5kVA Tower/Rack Convertible UPS |
| Product Line | Smart-UPS On-Line |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 114.42 lb (51900 g) |
| Form Factor | Tower/Rack Convertible |
| Height | 7" (177.80 mm) |
| Width | 17.32" (440 mm) |
| Depth | 24.41" (620 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| 200 V AC | |
| 240 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.75 kW |
