Acerca del producto

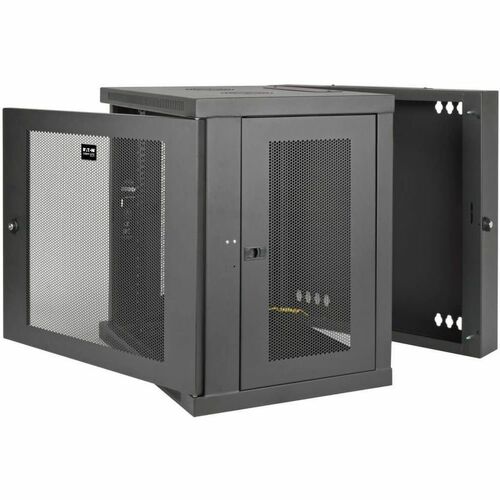

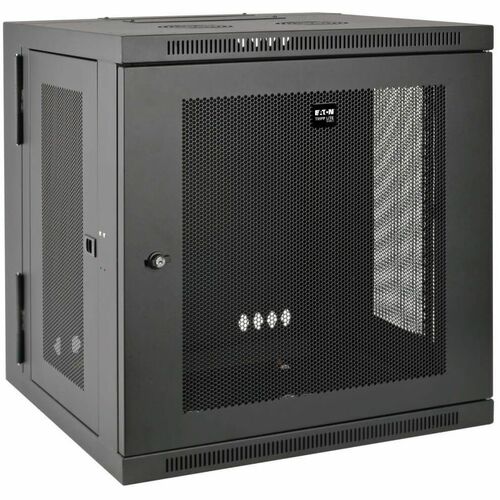

The SRW10US 10U Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
- Maximum load capacity of 200 lb.
- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep
Especificaciones técnicas
| Miscellaneous | |
| Additional Information |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 10U |
| Height | 21.57" (547.88 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 21.50" (546.10 mm) |
| Maximum Weight Capacity | 140 lb (63502.93 g) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRW10US |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRW10US |
| Product Name | SRW10US Wall mount Rack Enclosure Cabinet 10U 19" |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
