Rack equipment
Expected delivery 3 to 7 business days (exceptions applied)
Tripp Lite
GABINETE DE RACK DE MONTAJE EN PARED SMARTRACK 9U CON PUERTAS
GABINETE DE RACK DE MONTAJE EN PARED SMARTRACK 9U CON PUERTAS
- Capacidad máxima de carga de 200 lb.
- Gabinete de acero con cerradura, ventilado en los lados, el frente, la parte superior y la parte inferior
- La ventilación de flujo continuo mantiene el equipo fresco
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles




Recently Viewed
GABINETE DE RACK DE MONTAJE EN PARED SMARTRACK 9U CON PUERTAS
Resumen de información del producto

Acerca del producto

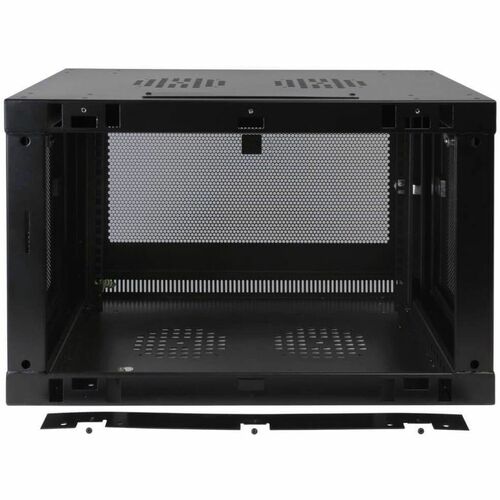

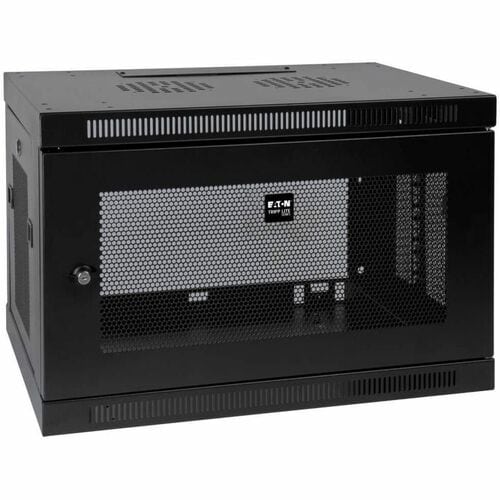

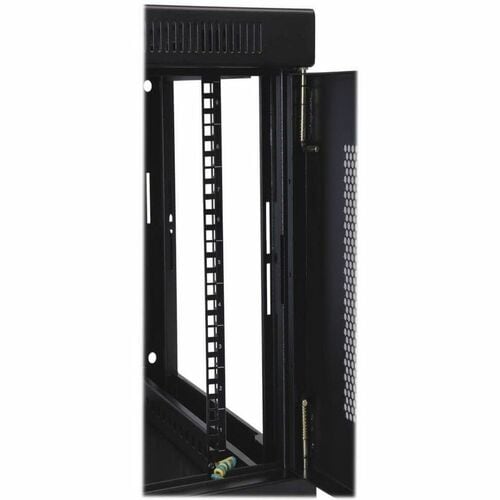

The SRW9U SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW9U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 9U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Especificaciones técnicas
Miscellaneous | |
Additional Information |
|
Certifications & Standards |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
General Information | |
Product Type | Rack Cabinet |
Manufacturer Part Number | SRW9U |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | SRW9U |
Product Name | SmartRack SRW9U Enclosure Rack Cabinet |
Product Line | SmartRack |
Brand Name | Tripp Lite by Eaton |
Physical Characteristics | |
Weight (Approximate) | 35 lb (15875.73 g) |
Form Factor | Wall Mountable |
Rack Width | 19" (482.60 mm) |
Rack Height | 9U |
Height | 19.88" (504.95 mm) |
Width | 23.62" (599.95 mm) |
Depth | 17.78" (451.61 mm) |
Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
Product Color | Black |
Color Family | Black |
Comparación de productos
Garantía del producto
Garantía estándar del fabricante según corresponda
Política de devoluciones
Garantía de precio
!00% siempre estamos por debajo del precio del mercado.
