Acerca del producto

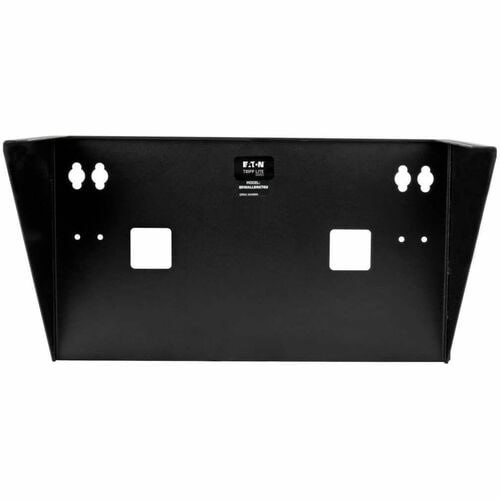

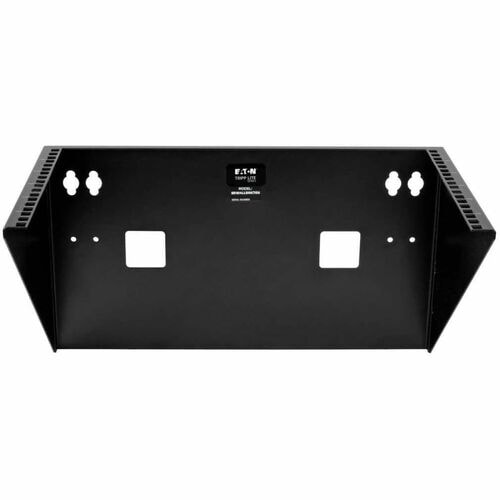

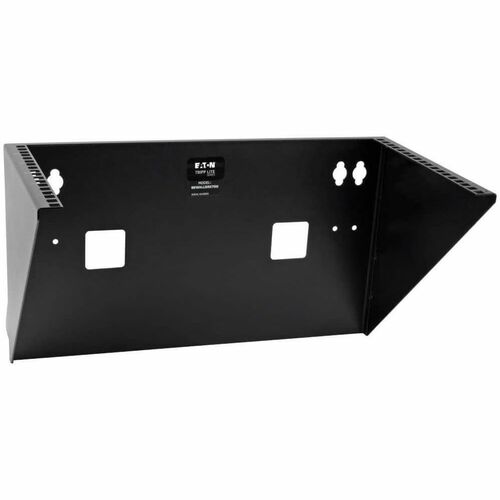

The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

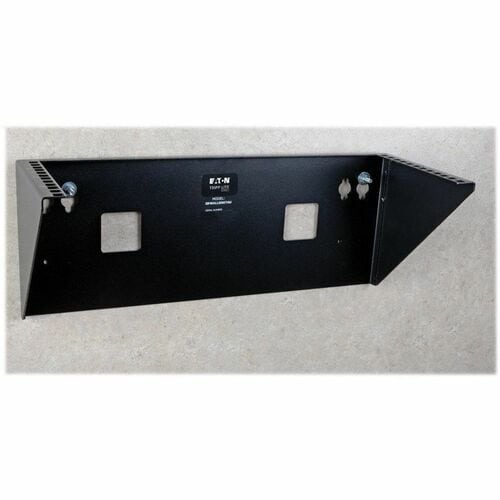

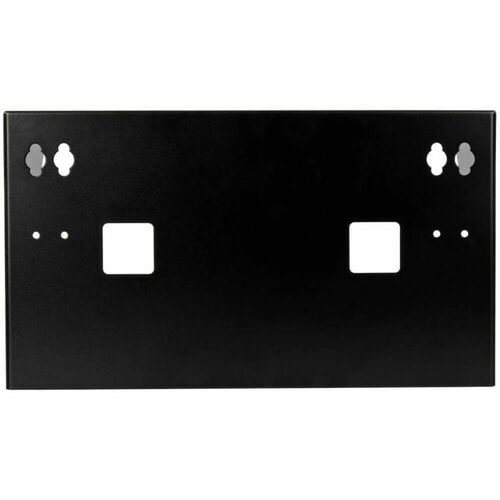

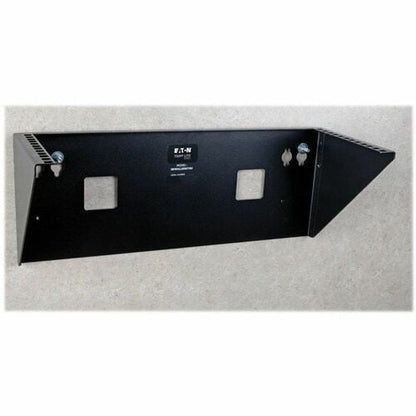

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

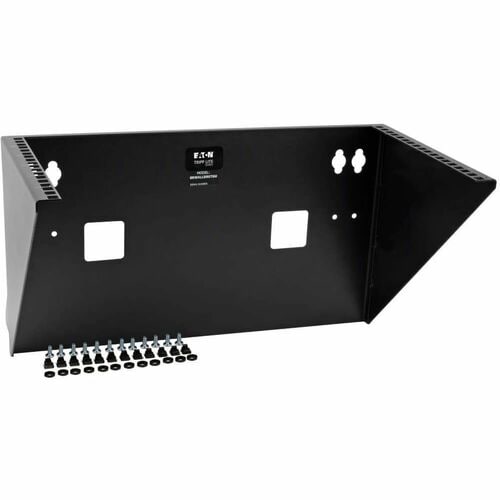

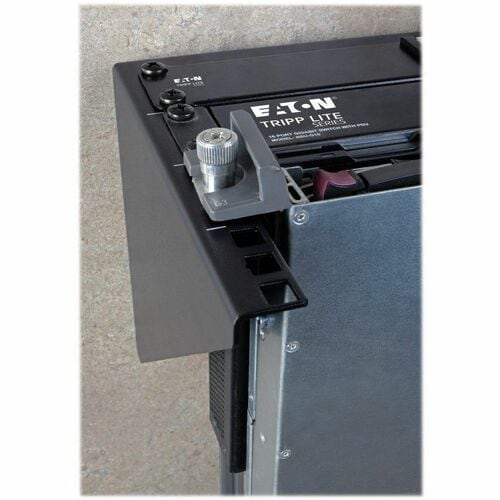

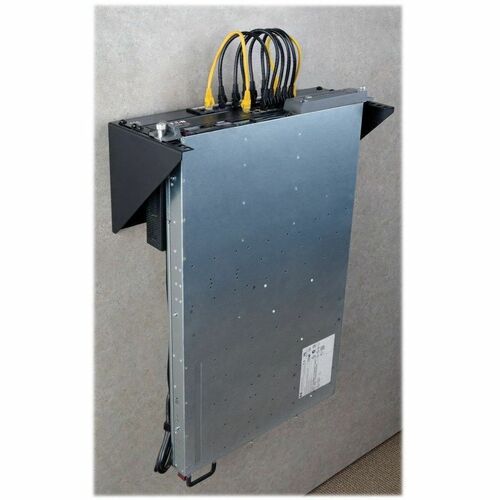

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.
Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.
Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Information | |
| Device Supported | Network Switch |
| Server | |
| UPS | |
| Maximum Load Capacity | 200 lb (90718.47 g) |
| Physical Characteristics | |
| Weight (Approximate) | 8.38 lb (3801.10 g) |
| Height | 11.15" (283.21 mm) |
| Width | 19.69" (500.13 mm) |
| Depth | 11.15" (283.21 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Mounting Bracket |
| Manufacturer Part Number | SRWALLBRKT6U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 |
| Manufacturer | Eaton Corporation |
| Product Model | SRWALLBRKT6U |
| Product Name | SmartRack 6U Vertical Wall-Mount Rack Bracket |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
