Acerca del producto
- Can connect up to 9 USB peripherals
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- With NVMe interface get superb reliability and high-speed data transfer
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Perform computational tasks effectively accrediting the Xeon Gold processor
Especificaciones técnicas
| Controllers | |
| Controller Type | NVMe |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 1.80 kW |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA |
| Warranty | |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 9 |
| Number of VGA Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 5 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 8 |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | SSG520PACTR12H |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |

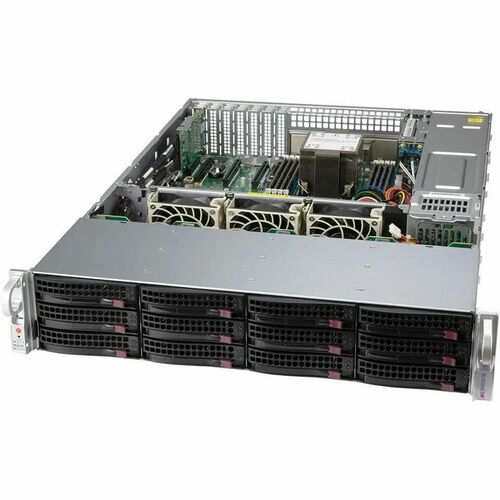

| Product Name | UP Storage SuperServer SSG-520P-ACTR12H |
| Product Line | SuperServer |
| Brand Name | Supermicro |
| Physical Characteristics | |
| Weight (Approximate) | 34 lb (15422.14 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.60" (650.24 mm) |
| Product Color | Black |
| Color Family | Black |
| Processor | |
| Processor Supported | Xeon Bronze |
| Xeon Platinum | |
| Xeon Silver | |
| Xeon Gold | |
| Processor Socket | Socket LGA-4189 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
