Acerca del producto
The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays.
From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).
A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- Extends video cables by up to 500 ft. (150m)
- Pure hardware design, no software or drivers required

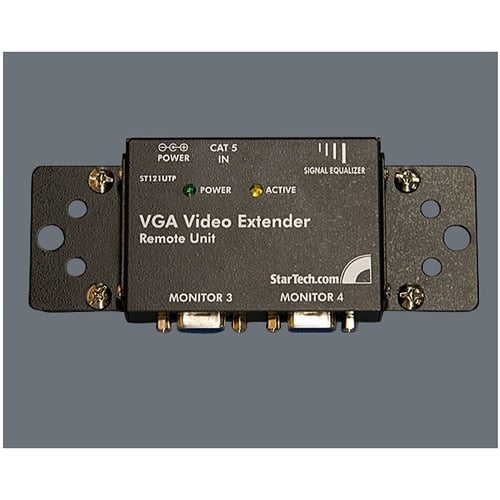

- Included mounting brackets
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Especificaciones técnicas
| Power Description | |
| Input Voltage | 9 V DC |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | VGA |
| Maximum Video Resolution | 1024 x 768 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Number of Output Devices Supported | 2 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 2 |
| VGA Out | Yes |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 3.30" (83.82 mm) |
| Receiver Depth | 2.60" (66.04 mm) |
| Receiver Weight (Approximate) | 5.93 oz (168 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | ST121R |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | VGA Video Extender Remote Receiver over Cat 5 |
| Brand Name | StarTech.com |
