Acerca del producto

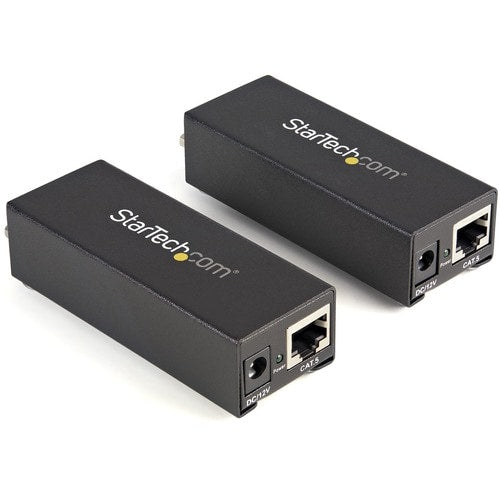

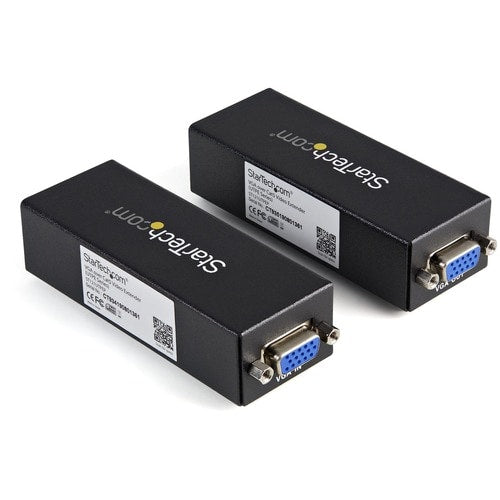

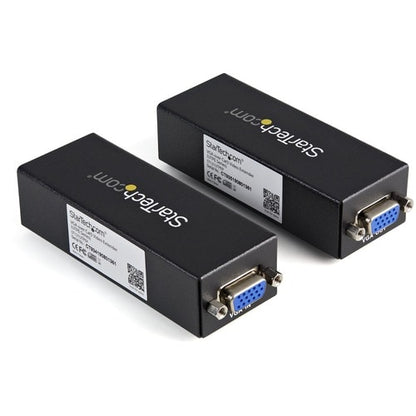

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution
the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the ManufacturerExtends video signal by up to 250 ft. (80m)Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)Mounting bracket includedSingle power adapter can be connected at local or remote end of the extensionUses standard Cat 5 or better cablingKit consists of 1 Base unit and 1 Remote unitPure hardware design - no software or drivers required
Especificaciones técnicas
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5e |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 262.47 ft (80000 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Interfaces/Ports | |

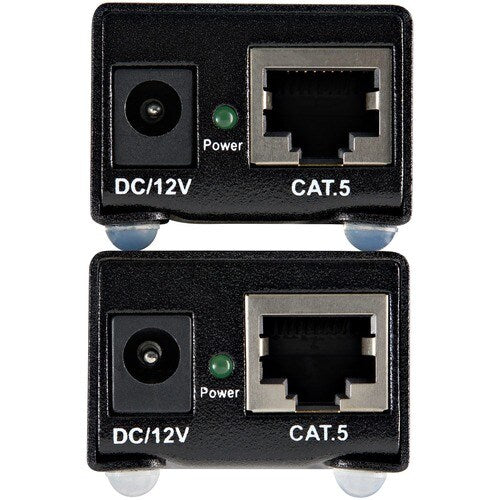

| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |

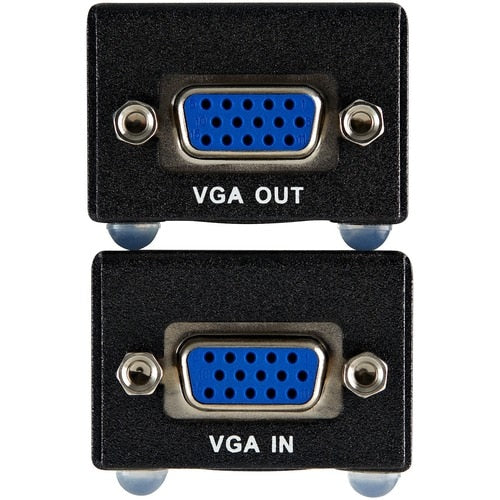

| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
| Miscellaneous | |
| Additional Information |
|

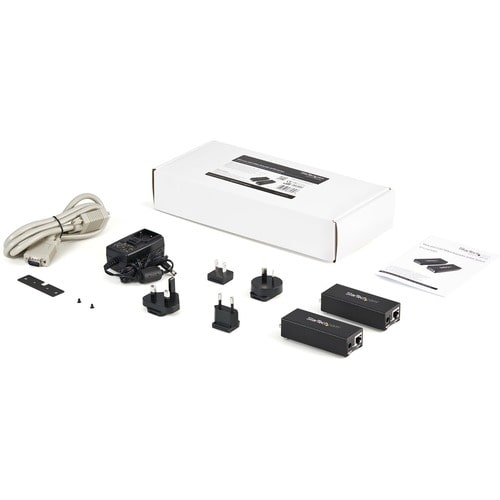

| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST121UTPEP |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 5.40" (137.16 mm) |
| Transmitter Depth | 3.90" (99.06 mm) |
| Receiver Height | 1" (25.40 mm) |
| Receiver Width | 5.40" (137.16 mm) |
| Receiver Depth | 3.90" (99.06 mm) |
| Transmitter Weight (Approximate) | 9.28 oz (263 g) |
| Receiver Weight (Approximate) | 9.28 oz (263 g) |
| Product Color | Black |
| Color Family | Black |
