Acerca del producto
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.

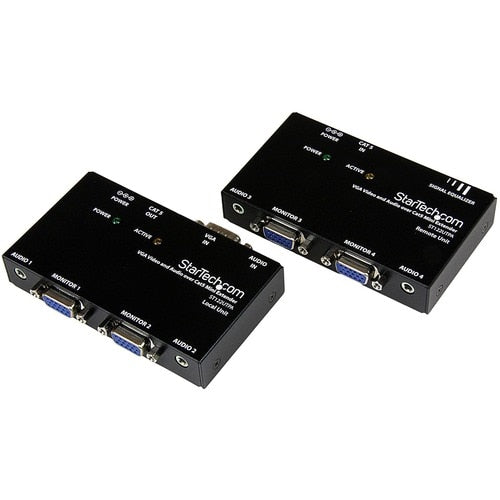

The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends VGA and analog audio up to 500ft / 150m
- Included mounting brackets
- Pure hardware design, no software or drivers required
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Especificaciones técnicas
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | XGA |
| Maximum Video Resolution | 1440 x 900 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 150 ft (45720 mm) |
| Number of Output Devices Supported | 4 |
| Number of Input Devices Supported | 1 |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 2 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 2 |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST122UTPA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | VGA Video Extender over Cat 5 with Audio |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 3.30" (83.82 mm) |
| Transmitter Depth | 2.40" (60.96 mm) |
| Transmitter Weight (Approximate) | 6.40 oz (181.44 g) |
| Product Color | Black |
| Color Family | Black |
