Acerca del producto

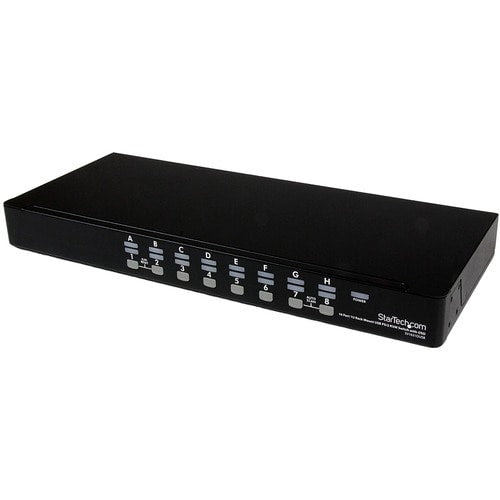

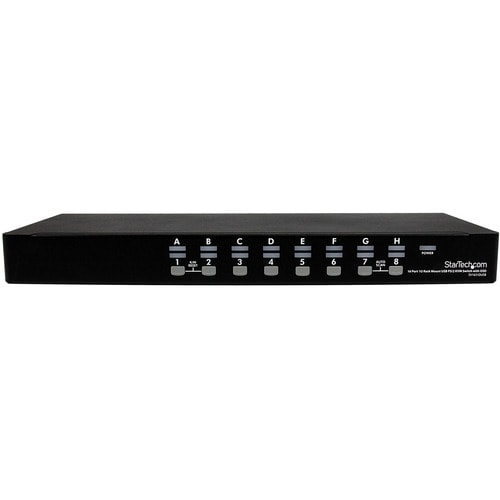

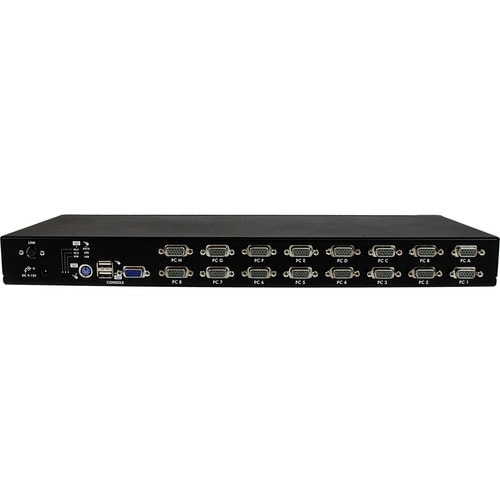

The SV1631DUSBGB 16 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 16 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 16 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch.
This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.
The SV1631DUSB onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below:
6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable
More from the Manufacturer
- Connect USB and PS/2 based computer systems
- OS independent No software or drivers required
- Auto-scan function cycles through computers sequentially
- Cascade configuration expands system capability
- Front panel push-buttons and Hot-key functions allow for easy switching
- On Screen Display (OSD) supports naming connected computers
- USB & PS2 console interfaces for keyboard and mouse
- OSD security option allows selected PCs to be password protected from unauthorized use
Especificaciones técnicas
| Interfaces/Ports | |
| PS/2 Port | Yes |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Technical Information | |
| Number of Computers Supported | 16 |
| Daisy Chain Supported | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Voltage Range | 110V AC to 240V AC |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV1631DUSB |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 16 Port 1U Rackmount USB PS/2 KVM Switch |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 6.83 lb (3100 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Rack Height | 1U |
| Height | 1.80" (45.72 mm) |
| Width | 7.10" (180.34 mm) |
| Depth | 17.20" (436.88 mm) |
| Product Color | Black |
| Color Family | Black |
