Acerca del producto
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

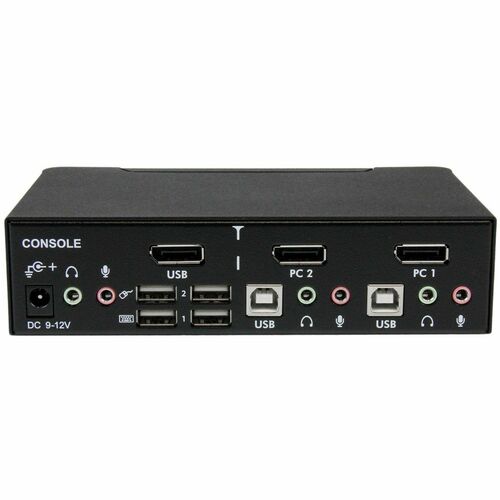

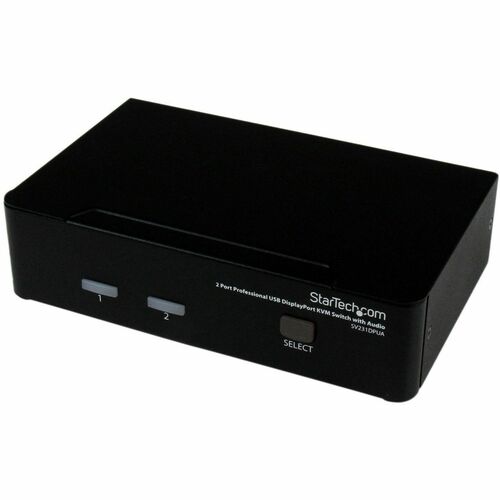

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
- Supports native DisplayPort computer connections - no adapter required
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
- VESA and CEA compliant
- Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
- USB 2.0 peripheral sharing
- No driver or software installation required
- Hotkey and push-button switching
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Platform Independent - Supports Mac and PC operating environments
Especificaciones técnicas
| Power Description | |
| Input Voltage | 5 V DC |
| Input Voltage Range | 100V AC to 240V AC |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2400 |
| Graphic Mode | WQUXGA |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV231DPUA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 2 Port USB DisplayPort KVM Switch with Audio |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Form Factor | Desktop |
| Height | 1.70" (43.18 mm) |
| Width | 8.70" (220.98 mm) |
| Depth | 5.10" (129.54 mm) |
| Product Color | Black |
| Color Family | Black |
