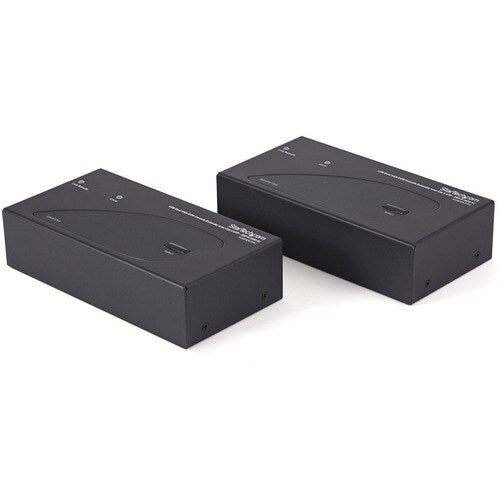

EXTENSOR DE CONSOLA KVM DE 2 PUERTOS USB DUAL VGA SOBRE CAT5 DE 650 PIES
EXTENSOR DE CONSOLA KVM DE 2 PUERTOS USB DUAL VGA SOBRE CAT5 DE 650 PIES
- Extensor KVM VGA dual con resolución de 1920x1200
- Se puede utilizar con una sola computadora o conectarse a un conmutador KVM existente
- Extienda hasta 650 pies (200 m) utilizando 2 cables de red UTP estándar de la industria
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles


Recently Viewed
EXTENSOR DE CONSOLA KVM DE 2 PUERTOS USB DUAL VGA SOBRE CAT5 DE 650 PIES
Resumen de información del producto

Acerca del producto
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
- Dual VGA KVM extender at 1920x1200 resolution
- Can be used with a single computer or connected to an existing KVM switch
- Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
- KVM console connections available on both the local and remote end
- Supports most combo keyboard and mouse sets (including Wireless)
- Intuitive hot-key commands for fine-tuning video
Especificaciones técnicas
Video | |
Maximum Video Resolution | 1920 x 1200 |
Graphic Mode | WUXGA |
Power Description | |
Input Voltage | 120 V AC |
240 V AC | |
Power Consumption | 5.40 W |
Input Voltage Range | 110V AC to 240V AC |
Technical Information | |
Connectivity Technology | Wired |
Maximum Operating Distance | 650 ft (198120 mm) |
KVM Technology | Analog |
Number of Computers Supported | 2 |
Number of Local Users Supported | 2 |
Interfaces/Ports | |
USB | Yes |
VGA | Yes |
Number of Network (RJ-45) Ports | 4 |
Network (RJ-45) | Yes |
Number of USB Ports | 4 |
Number of VGA Ports | 8 |
General Information | |
Product Type | KVM Console/Extender |
Manufacturer Part Number | SV565DUTPU |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Kit |
Manufacturer | StarTech.com |
Product Name | USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m |
Brand Name | StarTech.com |
Miscellaneous | |
Package Contents |
|
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
Restriction of Hazardous Substances (RoHS) | |
Physical Characteristics | |
Form Factor | Desktop |
Transmitter Height | 1.60" (40.64 mm) |
Transmitter Width | 3.10" (78.74 mm) |
Transmitter Depth | 6.10" (154.94 mm) |
Receiver Height | 1.60" (40.64 mm) |
Receiver Width | 3.10" (78.74 mm) |
Receiver Depth | 6.10" (154.94 mm) |
Transmitter Weight (Approximate) | 1.18 lb (535 g) |
Receiver Weight (Approximate) | 1.18 lb (535 g) |
Product Color | Black |
Color Family | Black |
