Acerca del producto

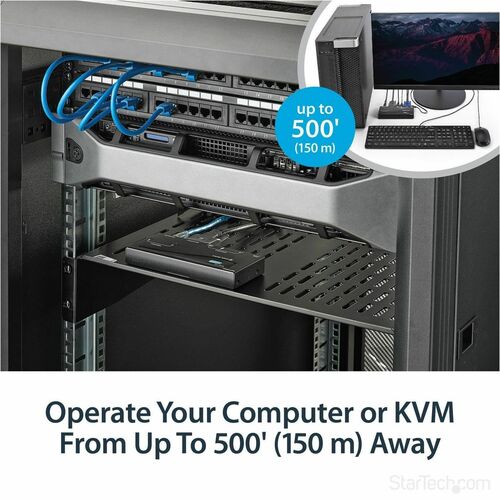

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
- COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware

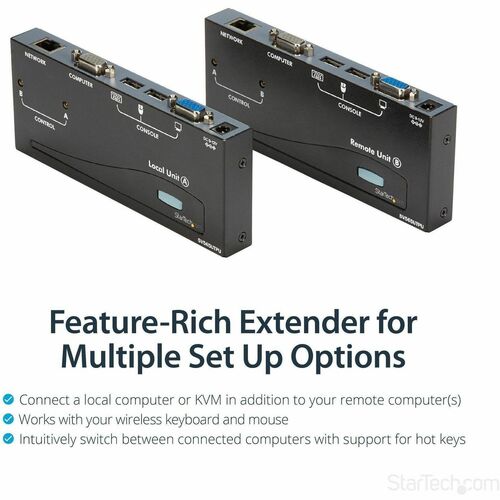

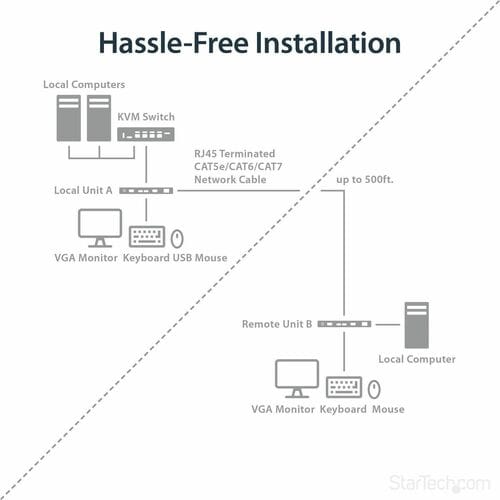

- FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations
- EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Video | |
| Maximum Video Resolution | 1024 x 768 |
| Graphic Mode | XGA |
| Power Description | |
| Input Voltage | 240 V AC |
| 120 V AC | |
| Power Consumption | 5.40 W |
| Input Voltage Range | 110 VCA a 240 VCA |

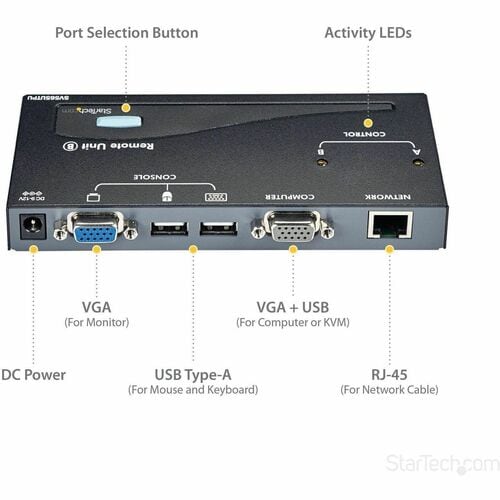

| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Number of VGA Ports | 4 |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 500 ft (152400 mm) |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | SV565UTPU |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Model | SV565UTPU |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 6.10" (154.94 mm) |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 6.10" (154.94 mm) |
| Transmitter Weight (Approximate) | 1.32 lb (600 g) |
| Receiver Weight (Approximate) | 1.32 lb (600 g) |
| Receiver Length | 3" (76.20 mm) |
| Product Color | Black |
| Color Family | Black |
| Transmitter Length | 3" (76.20 mm) |
