Acerca del producto

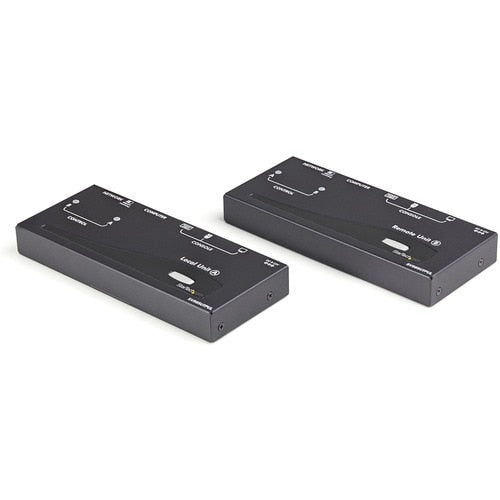

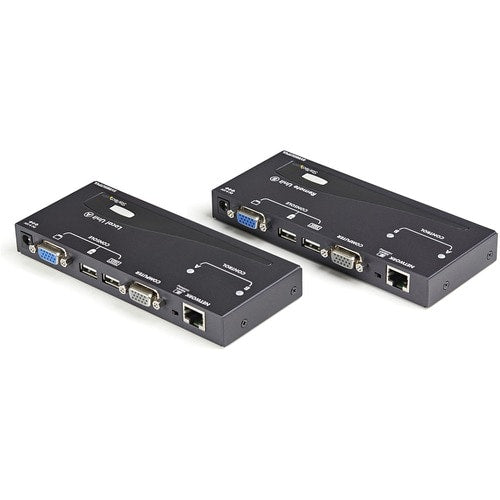

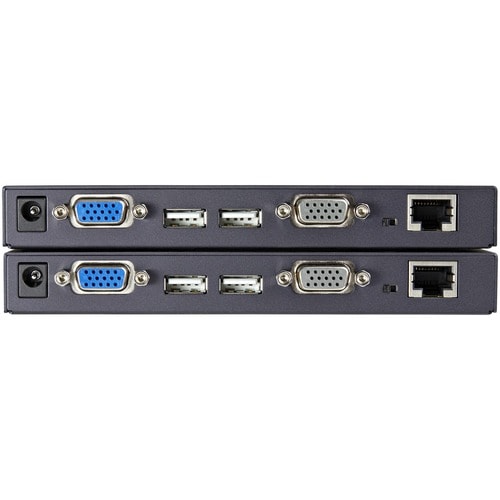

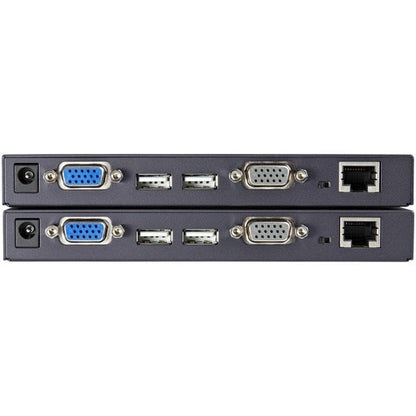

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
- High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
- Kit includes both local and remote units
- Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
- USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
- Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
- Supports auto-switching between host and remote users or dedicated control
- Compatible with CAT 5, 5e, or 6 UTP cabling
- Intuitive hotkey commands
- Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
- Supports most combo keyboard and mouse sets (including Wireless)
Especificaciones técnicas
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Power Description | |
| Input Voltage | 240 V AC |
| 120 V AC | |
| Power Consumption | 18 W |
| Input Voltage Range | 110V AC to 240V AC |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 984.25 ft (300000 mm) |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | SV565UTPUL |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | USB VGA KVM Console Extender over Cat5 UTP 1000 ft |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rack-mountable | |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 6.20" (157.48 mm) |
| Transmitter Depth | 2.80" (71.12 mm) |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 6.20" (157.48 mm) |
| Receiver Depth | 2.80" (71.12 mm) |
| Transmitter Weight (Approximate) | 1.37 lb (622 g) |
| Receiver Weight (Approximate) | 1.37 lb (622 g) |
| Product Color | Black |
| Color Family | Black |
