Acerca del producto
- Ideal for Use in Aggregation Layer
- 16 × 10 Gbps SFP+ Slots
- 1+1 Redundant Power Supply
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Ethernet Ring Protection Switching
- Static Routing
Easily Build a Whole 10G Multi-gigabit Network | 10G Router
Ensures the fast way
Full 10G Fiber Switch
Lightning-fast aggregation switching
Switch with 10G Uplink
PoE Switch with 10G Uplink
Wi-Fi 7/6 APs with 10G/2.5G Ports
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

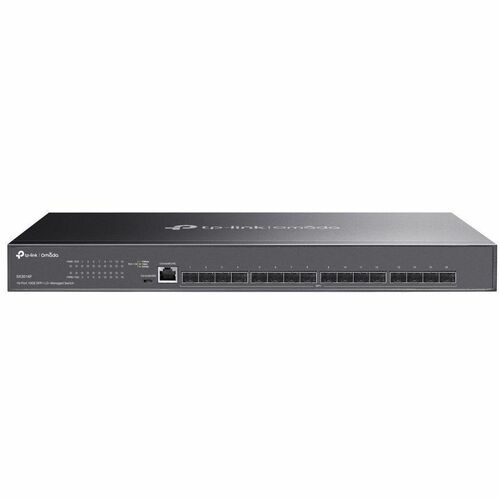

- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity

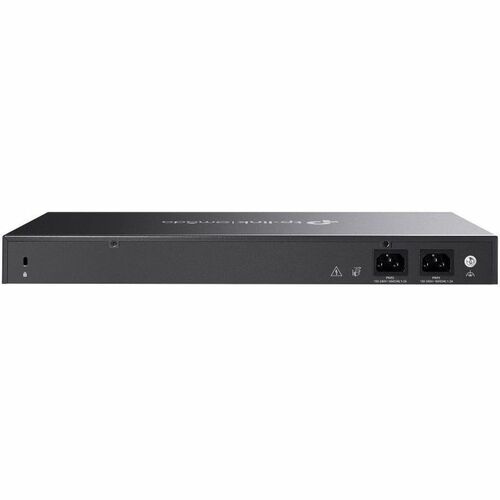

- Two power supply modules back each other up
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology

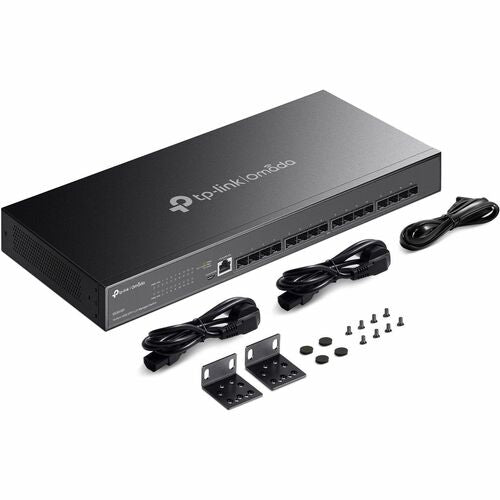

- Durable metal casing and rack-mountable design
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x 10 Gigabit Ethernet Expansion Slot |
| Technical Information | |
| Features | Intelligent monitoring |
| Fanless | |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 16 |
| Total Number of Expansion Slots | 16 |
| Media & Performance | |
| Network Technology | 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
| Application/Usage | Network |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ah |
| IEEE 802.1x | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1ab | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 8.66" (220 mm) |
| Compatible Rack Unit | 1U |
| Product Material | Metal |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SX3016F |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | SX3016F |
| Product Name | Omada 16-Port 10GE SFP+ L2+ Managed Switch |
| Product Line | Omada |
| Brand Name | TP-Link |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 32.74 W |
| Redundant Power Supply Supported | Yes |
