Acerca del producto

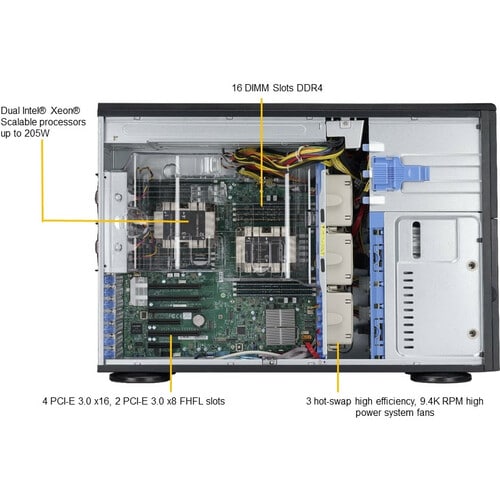

Supermicro's X11 DP/UP SuperServer®, SuperWorkstation, SuperStorage, and SuperBlade®solutions offer numerous advantages over previous generations and the highest levels of performance, efficiency, security and scalability in the industry. Supermicro X11 SuperServers support the latest Intel® Xeon® Scalable processors and offer 3TB ECC 3DS LRDIMM or RDIMM DDR4-2666MHz memory in 24 DIMMs, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, redundant Titanium Level (96%+) Digital power supplies, and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation systems offer in addition 7.1 HD Audio, SLI and Thunderbolt support, and up to 11 USB ports.
- Cost Effective
Especificaciones técnicas
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Interfaces/Ports | |
| Number of SATA Interfaces | 8 |
| Total Number of USB Ports | 7 |
| Number of USB 3.0 Ports | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.28 kW |
| I/O Expansions | |
| "Number of External 5.25"" Bays" | 3 |
| Number of Total Expansion Bays | 11 |
| "Number of 3.5"" Bays" | 8 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 4 |
| Total Number of Expansion Slots | 6 |
| Processor | |
| Processor Supported | Xeon Platinum |
| Xeon Bronze | |
| Xeon Gold | |
| Xeon Silver | |
| Processor Socket | Socket P LGA-3647 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | SYS-7049P-TRT |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | 7049P-TRT |
| Product Name | SuperServer 7049P-TRT (Black) |
| Product Line | SuperServer |
| Brand Name | Supermicro |
| Physical Characteristics | |
| Weight (Approximate) | 56 lb (25401.17 g) |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 17.80" (452.12 mm) |
| Width | 7" (177.80 mm) |
| Depth | 25.50" (647.70 mm) |
| Product Color | Black |
| Color Family | Black |
