Acerca del producto

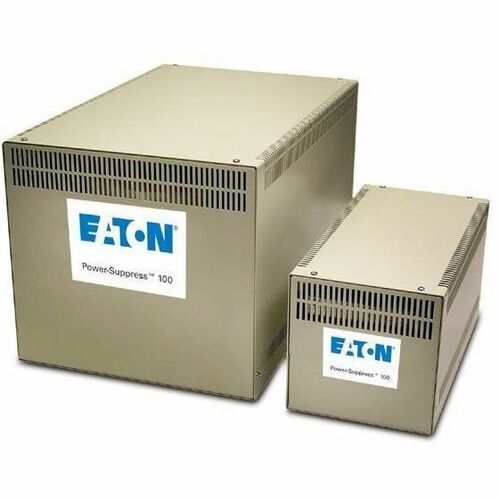

Power-Suppress 100
Eaton Power-Suppress 100 ultra-isolator noise suppressors protect sensitive equipment from electrical noise disturbances. Using exclusive double shielding techniques, the Power-Suppress 100 blocks all forms of electrical noise including radio frequency interference (RFI)/electromagnetic interference (EMI), over a broad range of frequencies. Furthermore, the noise suppression is achieved without impeding normal power flow.
Power-Suppress 100 ultra-isolator noise suppressors can reduce a 6000-volt spike to an insignificant 0.0030 volt. These high-voltage transients contain enough energy to completely destroy the electrical circuit componentsthat are vital to daily operation. Applications for the Power-Suppress 100 include audio and video equipment, computer and process equipment, telecommunications systems, and virtually any sensitive electronic instruments.
- Traps unwanted harmonics
- Removes surge voltages and minimizes reflected THD
- Cleans and conditions the sine wave
- Eliminates load-generated feedback
- Available in both hardwired or line cord/receptacle models
- Fast and easy installation
- Long-life operation
- Small footprint-saves valuable space
- Meets FCC Category A
- ULT1012, cULT, UL 1449
- Two-year warranty complete unit, five-year warranty core and coil
Especificaciones técnicas
| Technical Information | |
| Receptacles | Hardwired |
| Warranty | |
| Additional Warranty Information | Two-year warranty complete unit, five-year warranty core and coil |
| Physical Characteristics | |
| Weight (Approximate) | 41.73 kg |
| Height | 0.28" (7.11 mm) |
| Width | 11.10" (281.94 mm) |
| Depth | 17" (431.80 mm) |
| Power Description | |
| Input Voltage | 230 V AC |
| 480 V AC | |
| Power Handling | 5 kVA |
| Output Voltage | 120 V AC |
| 230 V AC | |
| Clamp Voltage | 6000 V |
| General Information | |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | T100H-5001 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | T100H5001 |
| Product Name | Power-Suppress 100 T100H5001 Surge Suppressor/Protector |
| Product Line | Power-Suppress |
| Product Series | 100 |
| Brand Name | Eaton |
