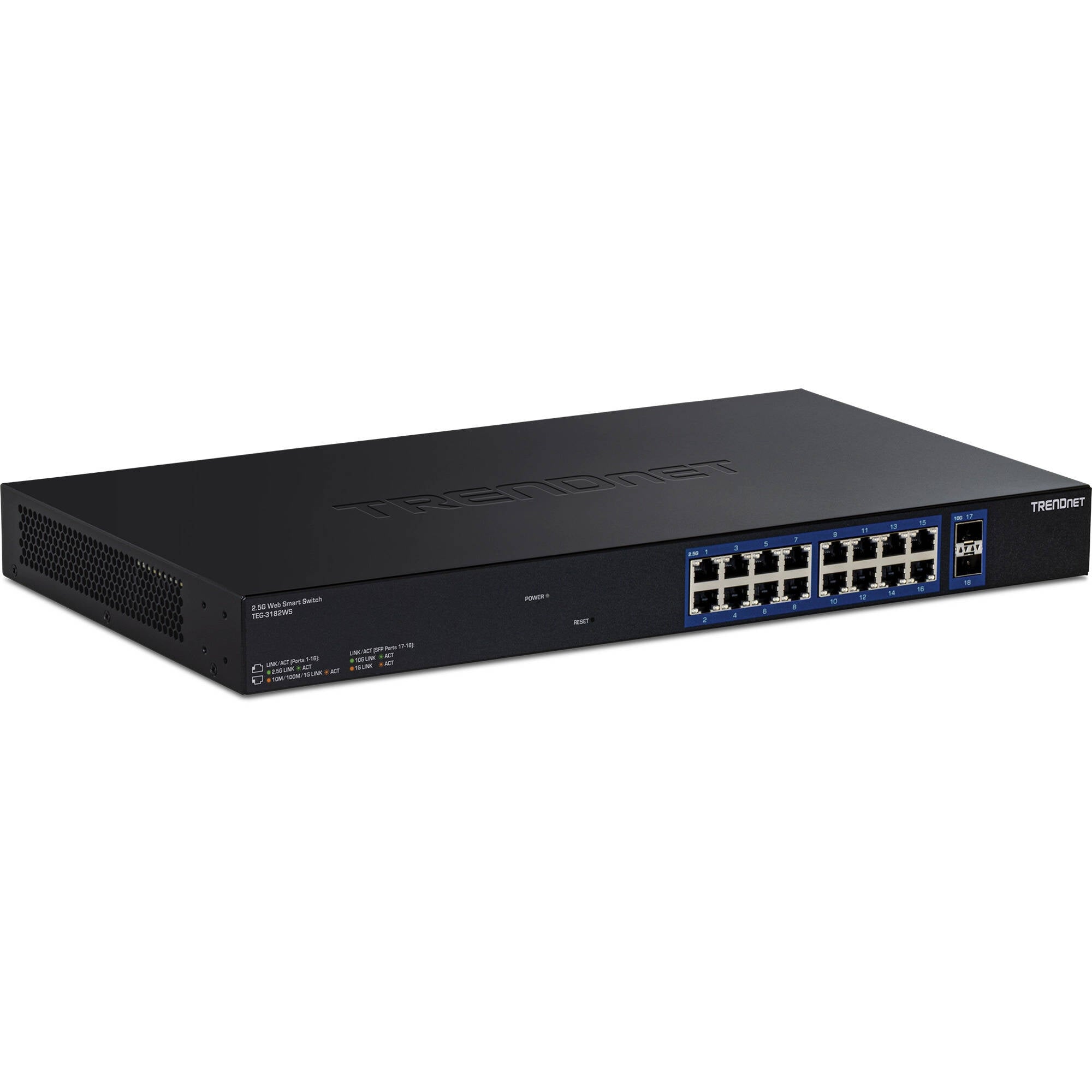

The TRENDnet 18-port Multi-Gig Web Smart Switch is an extremely fast, high-capacity networking switch with 16x 2.5G ethernet ports—providing up to 2.5Gbps of transfer speeds—and 2x 10G SFP+ ports for copper or fibre optic networking solutions up to 10Gbps.
Fanless, rack mountable design (hardware included) with a total 120Gbps switching capacity, the TRENDnet 18-port Multi-Gig Web Smart Switch is a powerful, central networking solution for scalable networks.
TEG-3182WS Specs and Features
- Standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz
- Device Interface: 16 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps), 2 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators, Reset button
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex); Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex); Gigabit Ethernet: 2Gbps (full duplex); 2.5G Ethernet: 5Gbps (full duplex); Gigabit SFP: 2Gbps (full duplex); 10G SFP+: 20Gbps (full duplex)
- Switching fabric: 120Gbps
- RAM Buffer: 1.5MB
- MAC Address Table: 16K entries
- Jumbo Frames: 12KB
- HOL Blocking Prevention
- Forwarding rate: 89.28 Mpps (64-byte packet size)
- Management: CLI (Telnet / SSHv2) limited administration only; HTTP/HTTPS (SSL v2/3 TLS) Web based GUI; SNMP v1, v2c, v3; RMON v1; Static Unicast MAC Address; Enable/disable 802.3az Power Saving; LLDP; Virtual Cable Diagnostics Test; Dual image; Dual configuration
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- TC Root/Protect
- Ping Watch Dog
- Hive Cloud Management
- Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
- Multi-device management
- Provisioning through scheduled batch firmware or configuration updates for multiple switches
- Event/hardware network monitoring (CPU/memory utilization)
- Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
- MIB: IP FORWARD TABLE MIB RFC 1354; IPV6 MIB RFC 2465; GVRP MIB IEEE 802.1Q-VLAN; LA MIB IEEE 802.3ad; LLDP MIB IEEE 802.1AB; SNMP MIB RFC 3415; STP MIB RFC 4318; PNAC MIB IEEE 802.1x; VLAN MIB IEEE 802.1q; ACL MIB; BANDWIDTH CTRL MIB; LBD MIB; MIRROR MIB; IPV6 NEIGHBOR MIB; SNTP MIB; STORM CTRL MIB; STATISTICS MIB; Tool MIB; VOICE VLAN MIB; DOS MIB
- Spanning Tree: IEEE 802.1D STP; IEEE 802.1w RSTPl IEEE 802.1s MSTP
- Link Aggregation: Static Link Aggregation; 802.3ad Dynamic LACP
- Quality of Service (QoS): 802.1p Class of Service (CoS); DSCP (Differentiated Services Code Point); Bandwidth Control per port; Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
- VLAN: Multiple management VLAN assignment; Asymmetric VLAN; 802.1Q Tagged VLAN; Dynamic GVRP; MAC-based VLAN; Protocol-based VLAN; Up to 256 VLAN groups, ID Range 1-4094; Private VLAN (Protected Ports); Voice VLAN (10 user defined OUIs)
- Multicast: IGMP Snooping v1, v2; MLD Snooping v1; IGMP fast leave; MVR (Multicast VLAN Registration); Static Multicast Address; Up to 256 multicast entries
- Port Mirror: RX, TX, or Both; Many to one
- Access Control: 802.1X Port-Based Network Access Control, RADIUS, TACACS+; Local Dial In User Authentication; DHCP Snooping (per VLAN); Loopback Detection; Duplicated Address Detection; Trusted Host; Denial of Service (DoS); IP MAC port binding; Dynamic ARP inspection; Block unknown multicast
- ACL IPv4 L2-L4 & IPv6: MAC Address; VLAN ID; Ether Type (IPv4 only); IP Protocol 0-255; TCP/UDP Port 1-65535; 802.1p; DSCP (IPv4 only); IPv6 Address (IPv6 only)
- Layer 3 Features: IPv4 / IPv6 static routing; IP interfaces: Up to 8; Routing table entries: Up to 32 (IPv4 / IPv6); ARP table (up to 128 entries); Inter-VLAN routing
- Power: Input: 100 - 240 V AC, 50/60 Hz, internal power supply
- Max. Consumption: 14.6 Watts
- Fanless Construction
- MTBF: 714,000 hours @ 40° C
- Operating Temperature: -5 – 50°C (23 - 122°F)
- Operating Humidity: Max. 95% non-condensing
- Dimensions: 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in.)
- Rack mountable 1U height
- Weight: 3.05 kg (6.72 lbs.)
- Certifications: CE, FCC, UL
- Warranty: Lifetime Manufacturer’s Warranty
