Acerca del producto
- Must use with TFC-1000S10D3
- SC-type dual-wavelength single-mode fiber port connects over distances of up to 10km(6.2miles)
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)

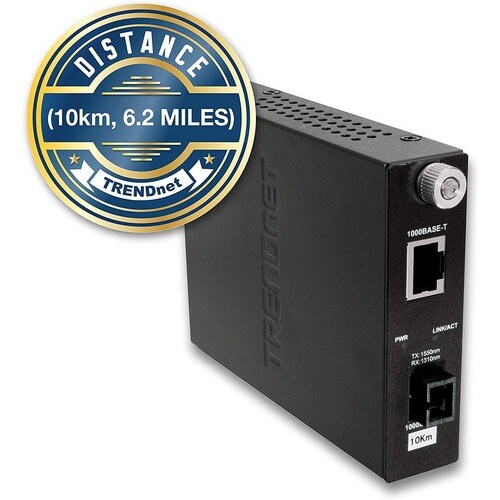

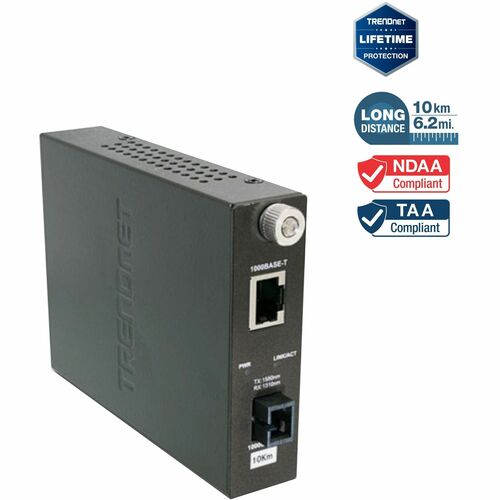

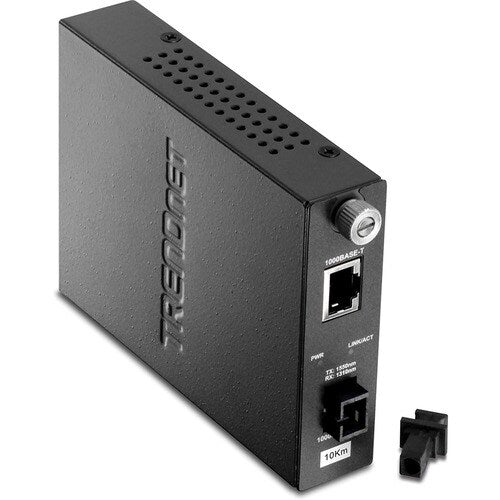

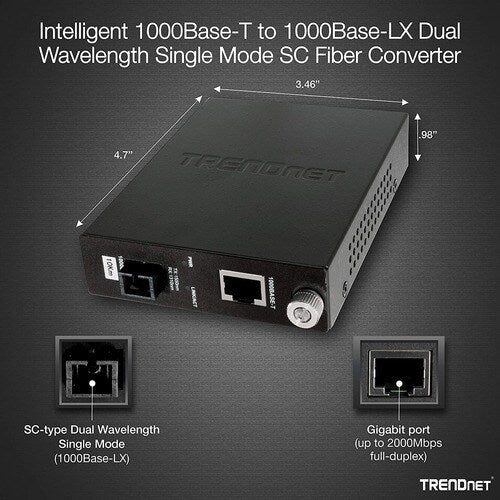

The TFC-1000S10D5 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 10km (6.2 miles). This module must be used with the TFC-1000S10D3 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.
Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port
Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for FX port
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable

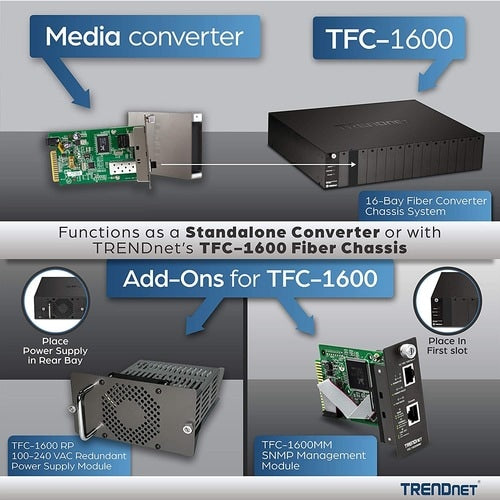

Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-1000S10D5
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- SC-type dual-wavelength single-mode fiber port connects over distances of up to 10km(6.2miles)
- Supports port level SNMP management
- Must use with TFC-1000S10D3
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
Especificaciones técnicas
| Network & Communication | |
| Network Technology | 1000Base-T |
| 1000Base-LX | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 10 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TFC-1600 : System Chassis |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 673.6 g |
| Form Factor | Wall Mountable |
| Height | 3" (76.20 mm) |
| Width | 8" (203.20 mm) |
| Depth | 8" (203.20 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TFC1000S10D5 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TFC-1000S10D5 |
| Product Name | 1000Base-T to WDM TX-1550 Single Mode Fiber Converter(10KM) |
| Brand Name | TRENDnet |
| Product Condition | New |
