Acerca del producto
- SC type single-mode fiber port connects over distances of up to 60km (37.2miles)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)

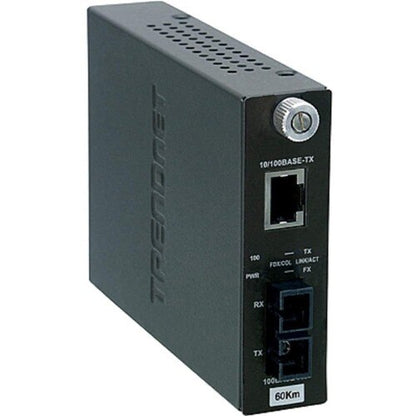

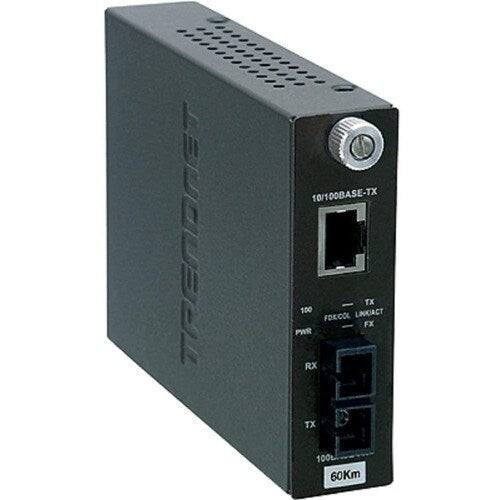

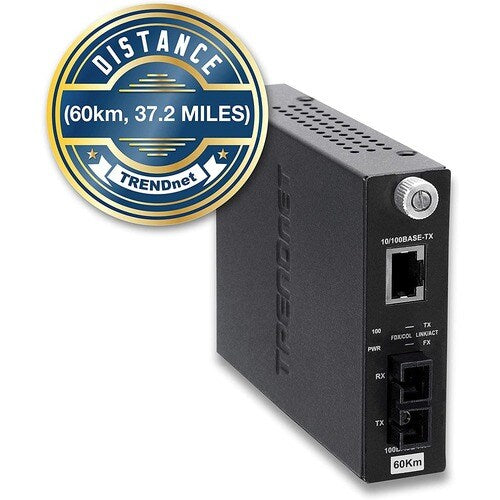

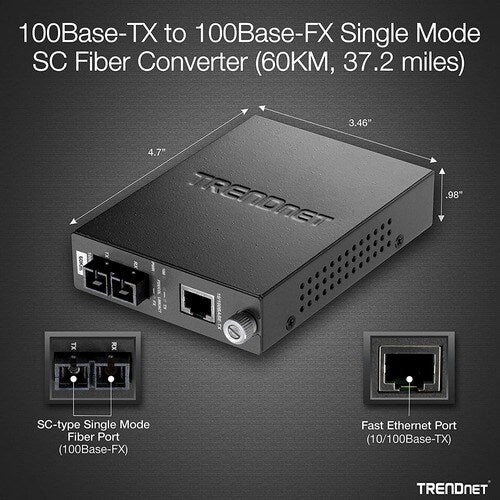

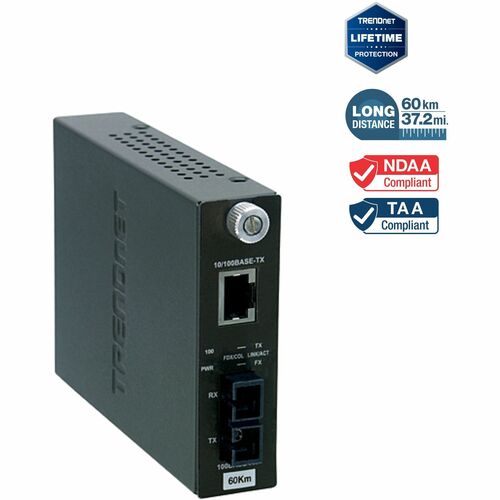

The TFC-110S60 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 60km (37.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with single-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Provides dip-switch for full and half duplex selection on fiber port
Wall mountable

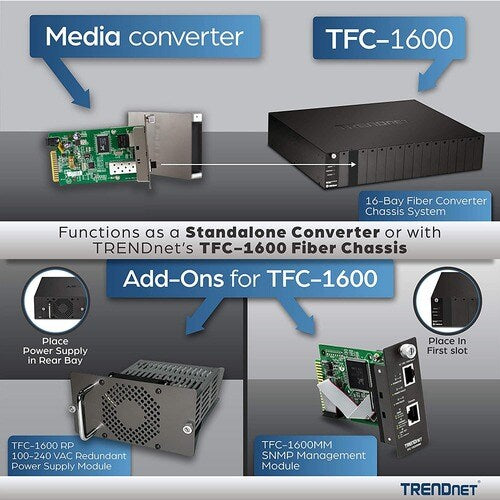

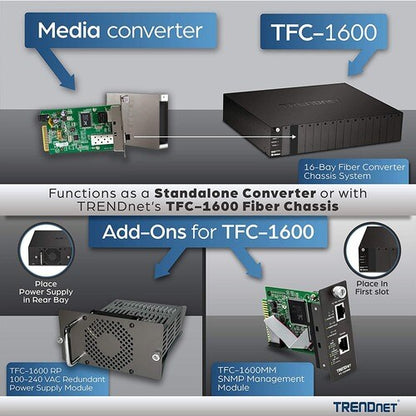

Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S60
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Lifetime TRENDnet Manufacturer's Warranty
- SC type single-mode fiber port connects over distances of up to 60km (37.2miles)
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- NDAA / TAA compliant (U.S. and Canada only)
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | TFC-1600 Chassis |
| Country of Origin | China |
| NDAA Compliant | Yes |
| Network & Communication | |
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Media & Performance | |
| Maximum Distance Supported | 60 km (37.28 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Physical Characteristics | |
| Weight (Approximate) | 5.72 lb (2594.55 g) |
| Form Factor | Wall Mountable |
| Height | 4" (101.60 mm) |
| Width | 11" (279.40 mm) |
| Depth | 16" (406.40 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TFC110S60 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TFC-110S60 |
| Product Name | 10/100Base-TX to 100Base-FX Single Mode Fiber Converter (60KM) |
| Brand Name | TRENDnet |
| Product Condition | New |
