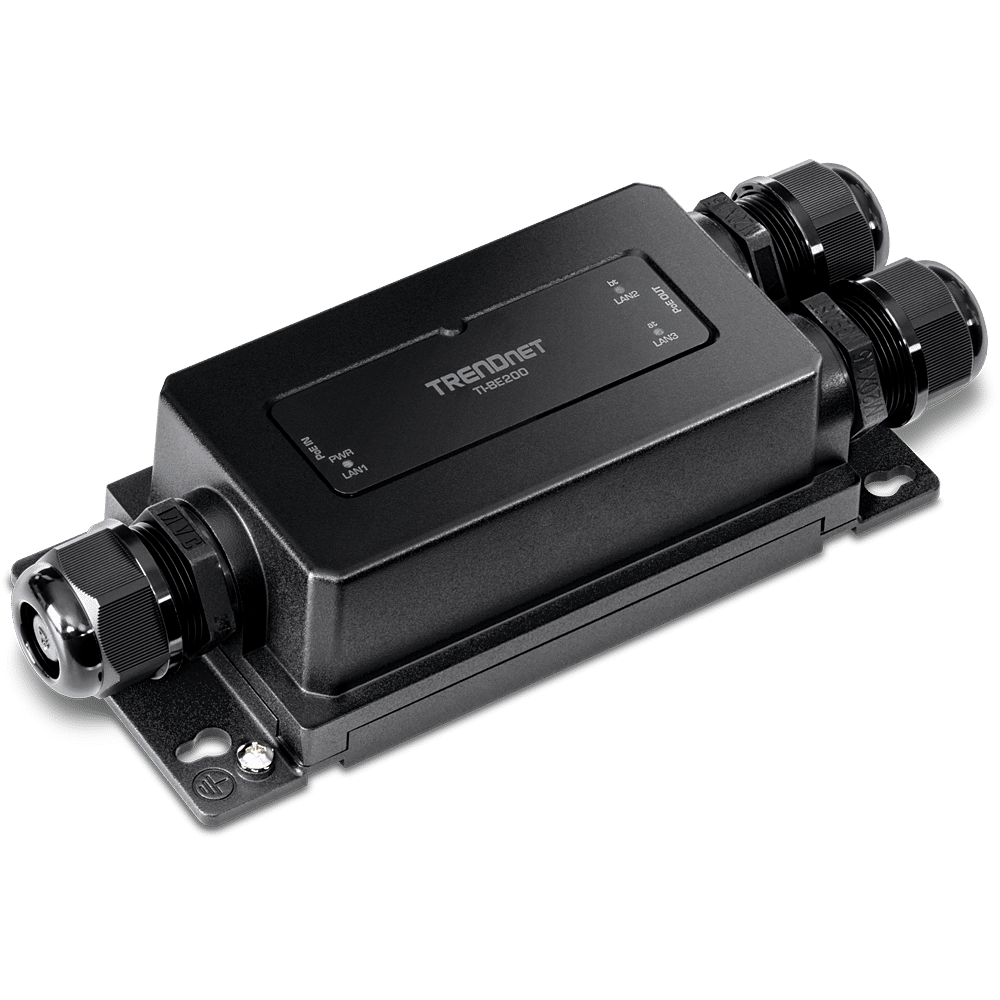

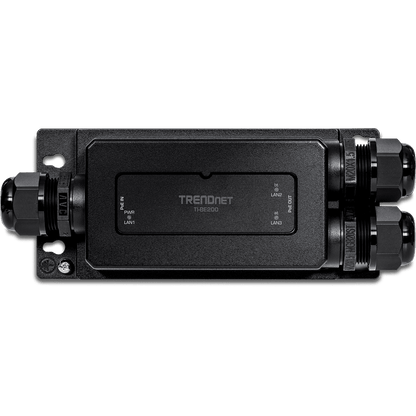

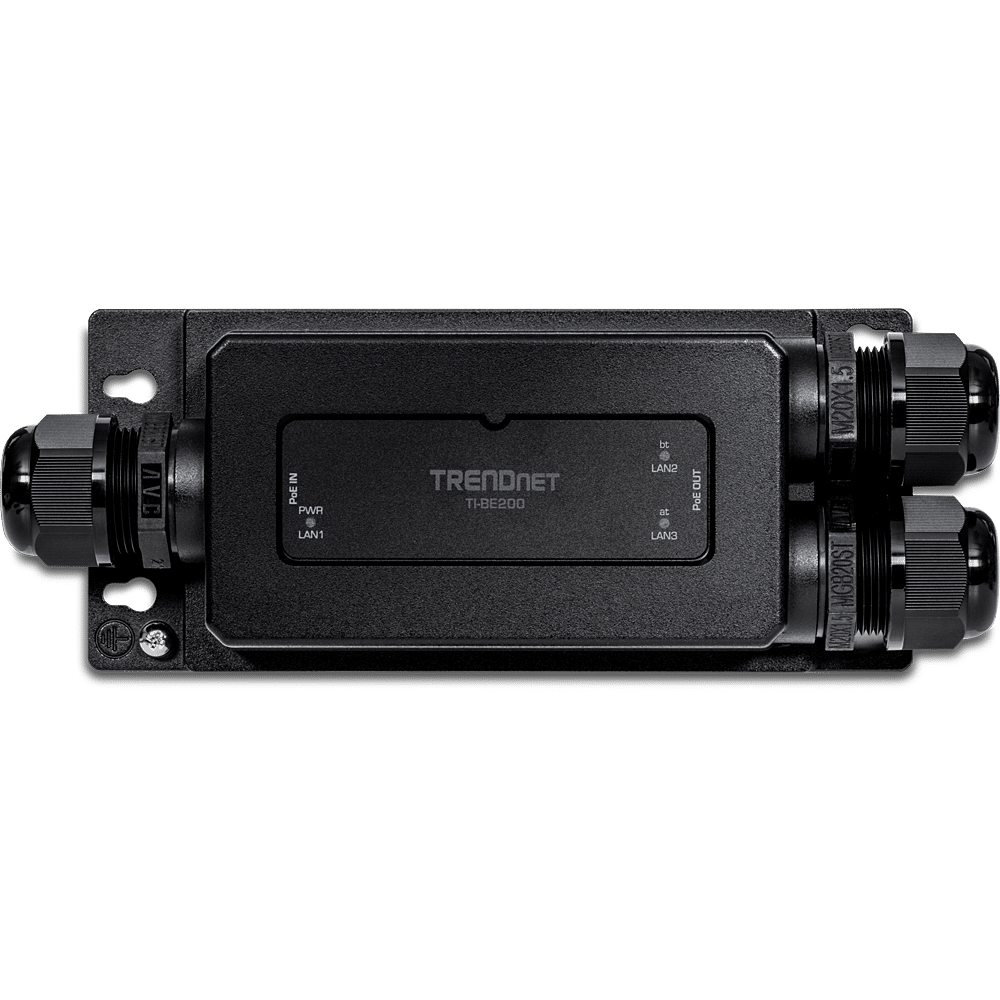

TRENDnet TI-BE200 2-Port Industrial Outdoor Gigabit PoE++ Extender
TRENDnet TI-BE200 2-Port Industrial Extender Features
- Easy installation
- Extends PoE++ 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
- Use a single PoE++ connection to extend PoE for up to two devices
- Supports PoE (15.4W), PoE+ (30W), PoE++ (60W) devices
- Wide operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67 outdoor weather-rated housing
- No external power adapter required
- Built-in True Surge 4kV Protection
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-BE200 2-Port Industrial Extender Specification
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface
- 1 x Gigabit PoE++ in port
- 1 x Gigabit PoE++ out port
- 1 x Gigabit PoE+ out port
- LED indicators
- Wall mount
- IP67 housing
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Performance
- RAM buffer: 1Mb
- MAC Address Table: 2K entries
- Jumbo Frame: 9KB
- Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1,640 ft.)
- Cascade up to 4 repeaters
- Power
- Powered by PoE++ (60W – 90W) Device
- Max. consumption: 2.8W (without the device connected)
- PoE
- PoE budget: 60W
- PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
- PoE Power Output
- PoE Input 90W: Max PoE Output 60W
- PoE Input 60W: Max PoE Output 51W
- PoE Input 30W: Max PoE Output 25W
- Single Port Daisy Chain
- Daisy Chains From PSE 1 (up to 100m):
- Max. PoE Output:
- 90W Input: 60W
- 60W Input: 51W
- 30W Input: 25W
- Max. PoE Output:
- Daisy Chains From PSE 2 (up to 200m):
- Max. PoE Output:
- 90W Input: 34W
- 60W Input: 33W
- 30W Input: 22W
- Max. PoE Output:
- Daisy Chains From PSE 3 (up to 300m):
- Max. PoE Output:
- 90W Input: 17W
- 60W Input: 16W
- 30W Input: 14W
- Max. PoE Output:
- Daisy Chains From PSE 4 (up to 400m):
- Max. PoE Output
- 90W Input: 9W
- 60W Input: 8W
- 30W Input: 6W
- Max. PoE Output
- Daisy Chains From PSE 1 (up to 100m):
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
- Weight
- 364g (12.8 oz.)
- Certifications
- CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
- Warranty
- 3 year
- Package Contents
- TI-BE200
- Quick Installation Guide
- 3 x IP67 weather-rated cable glands
- Wrench
- Wall mount screws
* Each additional extender added to the daisy chain will decrease the overall available PoE budget.
** To obtain the maximum PoE budget of 60W, the outdoor PoE++ extender must be powered by a 90W PoE++ device.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
