Acerca del producto

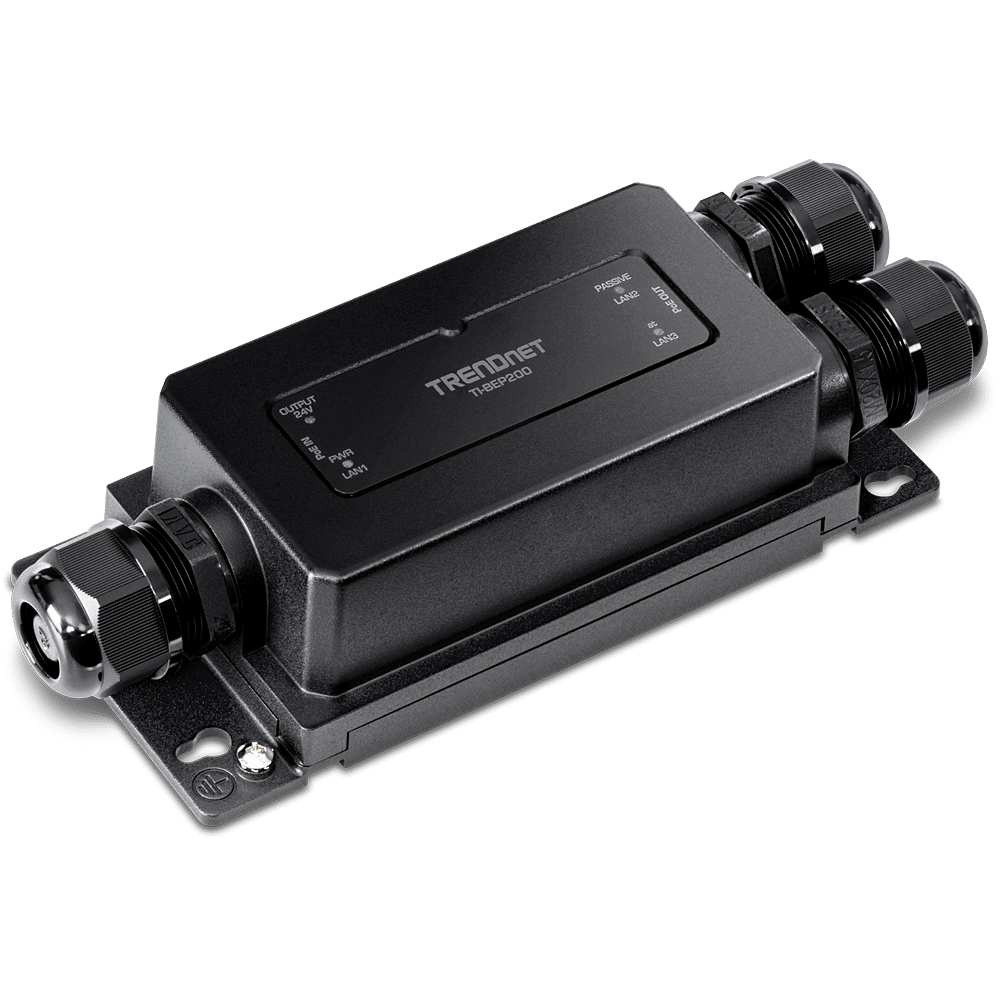

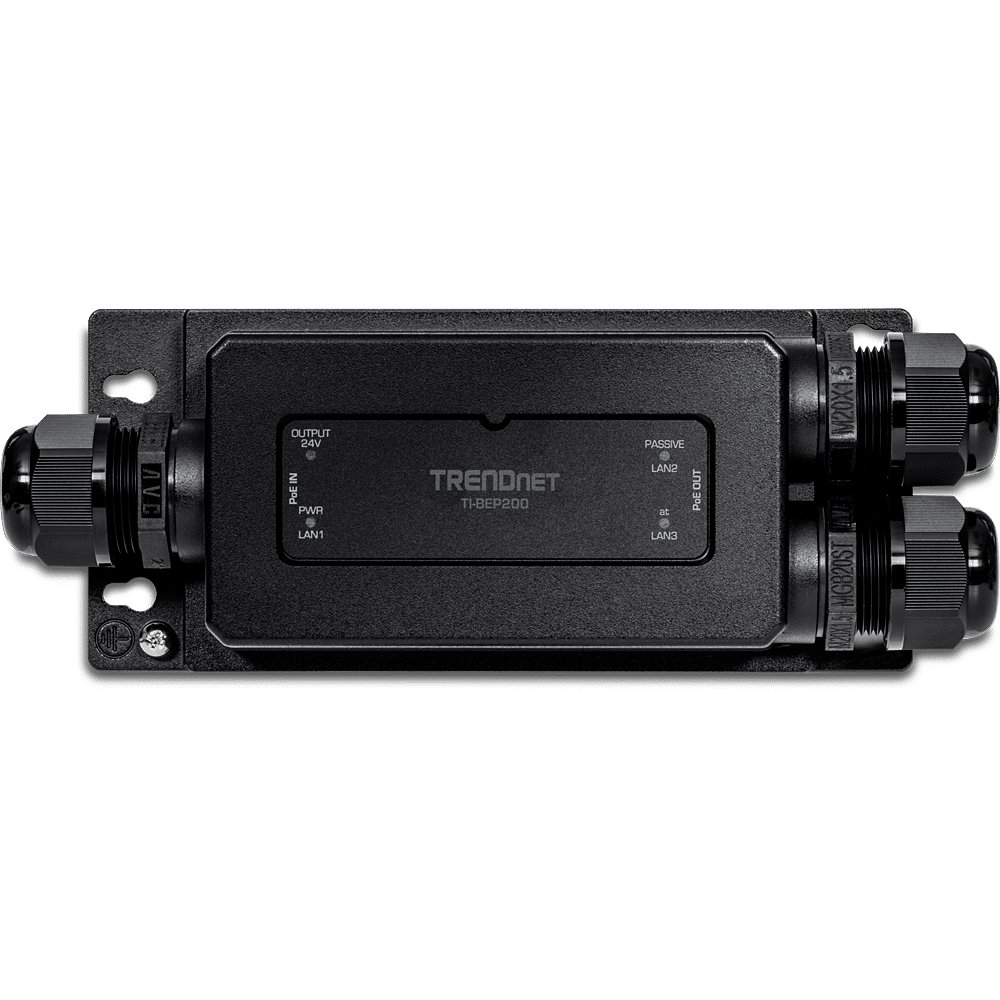

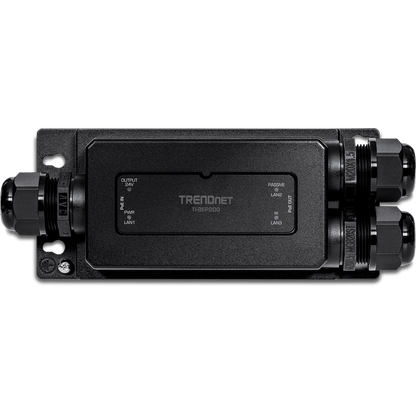

TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender Overview
TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, one PoE+, and one Passive PoE output port.
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
- Use a single PoE++ connection to extend PoE for up to two devices
- Supports PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices
- Supports single output Passive PoE (24-48V)
- Wide operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67 outdoor weather-rated housing
- No external power adapter required
- Built-in True Surge 4kV Protection
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-BEP200 2-Port Industrial Extender Features
- PoE Power
- Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices.**
- Gigabit Ports
- Features one-gigabit PoE++ input port and two gigabits PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.
- Outdoor Rated
- Built for outdoor and industrial environments, with an IP67 weather-rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).
- Extension Distance
- Extends a PoE, PoE+, or Passive PoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source
- PoE/PoE+/PoE+
- Auto detects PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) network connections
- Gigabit Ports
- 1 x Gigabit PoE++ input port, 2 x Gigabit PoE output ports, with a 60W PoE budget and 90W PoE++ input
- Daisy Chain
- Connect up to 4 units for a PoE network extension of up to 500m (1,640 ft.)*
- PoE Powered
- No external power required—saves installation time and cost
- Outdoor Ready
- Rugged IP67 outdoor weather-rated housing
TRENDnet TI-BEP200 2-Port Industrial Extender Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface
- 1 x Gigabit PoE++ in port
- 1 x Gigabit PoE++ out port
- 1 x Gigabit PoE+ out port
- LED indicators
- Wall mount
- IP67 housing
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Performance
- RAM buffer: 1Mb
- MAC Address Table: 2K entries
- Jumbo Frame: 9KB
- Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1,640 ft.)
- Cascade up to 4 repeaters
- Power
- Powered by PoE++ (60W – 90W) Device
- Max. consumption: 2.8W (without the device connected)
- PoE
- PoE budget: 60W
- PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
- PoE Power Output
- PoE Input 90W: Max PoE Output: 60W
- PoE Input 60W: Max PoE Output:51W
- PoE Input 30W: Max PoE Output: 25W
- Single Port Daisy Chain
- Daisy Chains From PSE: 1 (up to 100m)
- Max. PoE Output:
- 90W Input: 60W
- 60W Input: 51W
- 30W Input: 25W
- Max. PoE Output:
- Daisy Chains From PSE: 2 (up to 200m)
- Max. PoE Output
- 90W Input: 34W
- 60W Input: 33W
- 30W Input: 22W
- Max. PoE Output
- Daisy Chains From PSE: 3 (up to 300m)
- Max. PoE Output
- 90W Input: 17W
- 60W Input: 16W
- 30W Input: 14W
- Max. PoE Output
- Daisy Chains From PSE: 4 (up to 400m)
- Max. PoE Output
- 90W Input: 9W
- 60W Input: 8W
- 30W Input: 6W
- Max. PoE Output
- Daisy Chains From PSE: 1 (up to 100m)
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
- Weight
- 364g (12.8 oz.)
- Certifications
- CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
- Warranty
- 3 year
- Package Contents
- TI-BE200
- Quick Installation Guide
- 3 x IP67 weather-rated cable glands
- Wrench
- Wall mount screws
* Each additional extender added to the daisy chain will decrease the overall available PoE budget.
** To obtain the maximum PoE budget of 60W, the outdoor PoE++ extender must be powered by a 90W PoE++ device.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Especificaciones técnicas
TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender Overview
TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, one PoE+, and one Passive PoE output port.
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
- Use a single PoE++ connection to extend PoE for up to two devices
- Supports PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices
- Supports single output Passive PoE (24-48V)
- Wide operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67 outdoor weather-rated housing
- No external power adapter required
- Built-in True Surge 4kV Protection
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-BEP200 2-Port Industrial Extender Features
- PoE Power
- Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices.**
- Gigabit Ports
- Features one-gigabit PoE++ input port and two gigabits PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.
- Outdoor Rated
- Built for outdoor and industrial environments, with an IP67 weather-rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).
- Extension Distance
- Extends a PoE, PoE+, or Passive PoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source
- PoE/PoE+/PoE+
- Auto detects PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) network connections
- Gigabit Ports
- 1 x Gigabit PoE++ input port, 2 x Gigabit PoE output ports, with a 60W PoE budget and 90W PoE++ input
- Daisy Chain
- Connect up to 4 units for a PoE network extension of up to 500m (1,640 ft.)*
- PoE Powered
- No external power required—saves installation time and cost
- Outdoor Ready
- Rugged IP67 outdoor weather-rated housing
TRENDnet TI-BEP200 2-Port Industrial Extender Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface
- 1 x Gigabit PoE++ in port
- 1 x Gigabit PoE++ out port
- 1 x Gigabit PoE+ out port
- LED indicators
- Wall mount
- IP67 housing
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Performance
- RAM buffer: 1Mb
- MAC Address Table: 2K entries
- Jumbo Frame: 9KB
- Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1,640 ft.)
- Cascade up to 4 repeaters
- Power
- Powered by PoE++ (60W – 90W) Device
- Max. consumption: 2.8W (without the device connected)
- PoE
- PoE budget: 60W
- PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
- PoE Power Output
- PoE Input 90W: Max PoE Output: 60W
- PoE Input 60W: Max PoE Output:51W
- PoE Input 30W: Max PoE Output: 25W
- Single Port Daisy Chain
- Daisy Chains From PSE: 1 (up to 100m)
- Max. PoE Output:
- 90W Input: 60W
- 60W Input: 51W
- 30W Input: 25W
- Max. PoE Output:
- Daisy Chains From PSE: 2 (up to 200m)
- Max. PoE Output
- 90W Input: 34W
- 60W Input: 33W
- 30W Input: 22W
- Max. PoE Output
- Daisy Chains From PSE: 3 (up to 300m)
- Max. PoE Output
- 90W Input: 17W
- 60W Input: 16W
- 30W Input: 14W
- Max. PoE Output
- Daisy Chains From PSE: 4 (up to 400m)
- Max. PoE Output
- 90W Input: 9W
- 60W Input: 8W
- 30W Input: 6W
- Max. PoE Output
- Daisy Chains From PSE: 1 (up to 100m)
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
- Weight
- 364g (12.8 oz.)
- Certifications
- CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
- Warranty
- 3 year
- Package Contents
- TI-BE200
- Quick Installation Guide
- 3 x IP67 weather-rated cable glands
- Wrench
- Wall mount screws
* Each additional extender added to the daisy chain will decrease the overall available PoE budget.
** To obtain the maximum PoE budget of 60W, the outdoor PoE++ extender must be powered by a 90W PoE++ device.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
