Acerca del producto
TRENDnet's Industrial 10G SFP+ to 10G PoE++ Media Converter, model TI-BF711SFP, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°- 75° C (-40° - 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter's rugged design also provides protection from shock, freefall, and vibration.
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, transportation, and corporate applications.
PoE++ Output
Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.
Industrial Environments
Hardened IP50 converter for industrial networking environments within a - 40°- 75° C (-40° - 167° F) operating temperature range.
FEATURES | 10G PoE++ Port
One 10G PoE++ Ethernet port for high-power and high-speed devices
Link Fault Pass Through
Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter
Surge Protection
Provides up to 6kV RJ45 Ethernet surge protection
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
10G SFP+ Port
One 10G SFP+ port for long distance applications
Dust Protected
This industrial switch is IP50 rated for ingress dust protection
Extreme Temperature Range
An extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions

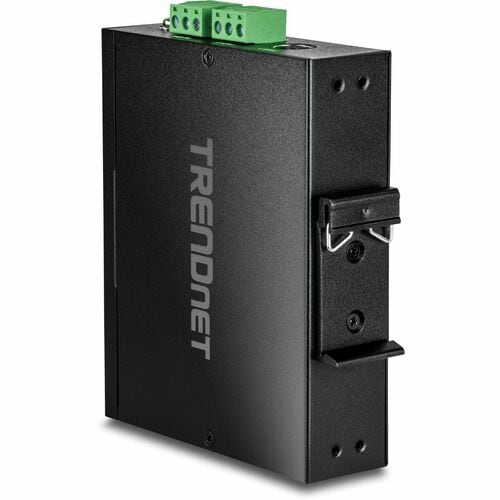

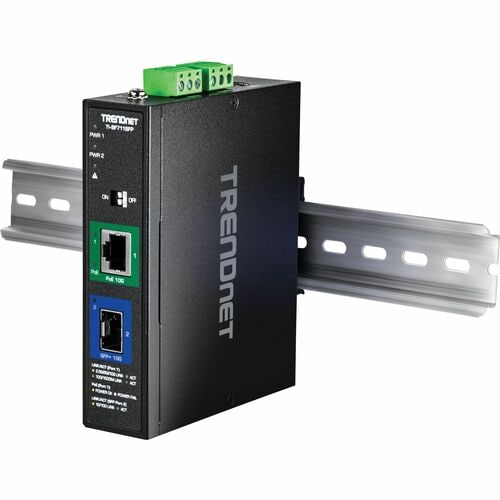

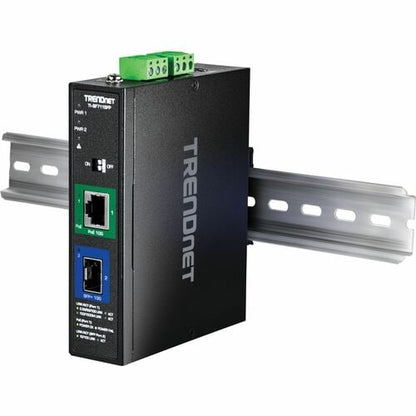

DIN-Rail / Wall Mounts
The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware
Dip Switches
1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)

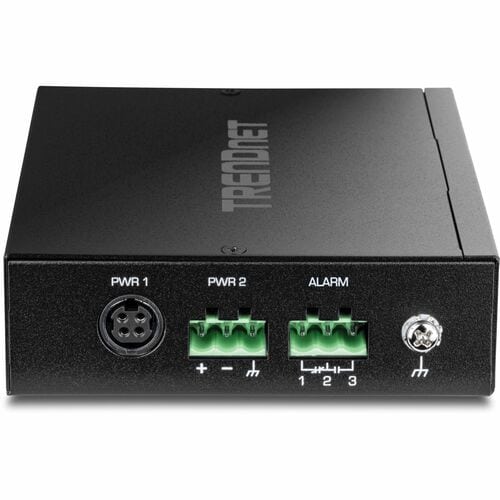

Fault Tolerance
Features an output alarm relay to indicate an input power failure
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)
Grounding Point
The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges
- Connect different types of media within a network with this single port
- With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
- The DIN Rail Mountable provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Especificaciones técnicas
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Total Number of Ports | 1 |
| Media & Performance | |
| Maximum Data Transfer Rate | 20 Gbit/s |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Network Technology | 10GBase-X |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Power Description | |
| Power Source | AC/DC |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 6.80 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Weight (Approximate) | 1.05 lb (476 g) |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Height | 4.72" (120 mm) |
| Width | 1.18" (30 mm) |
| Depth | 3.86" (98 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TI-BF711SFP |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TI-BF711SFP |
| Product Name | Industrial 10G SFP+ Media Converter |
| Brand Name | TRENDnet |
| Miscellaneous | |
| Application/Usage | Industrial |
| Network | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
