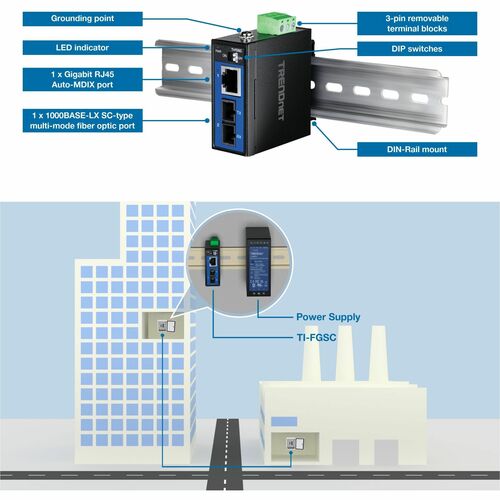

TRENDnet's Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter, model TI-FGSC, features a gigabit RJ45 port and a 1000BASE-LX SC interface port for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.). The industrial multi-mode media converter's compact IP50-rated design allows for flexible installation, provides ingress dust protection, and includes DIN-rail and wall mounting hardware options. The industrial SC fiber converter's rugged design provides resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of -40° - 75° C (-40° - 167° F). The front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass Through (LFPT).
Distance
1000BASE-LX (1310nm) gigabit multimode fiber for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.)

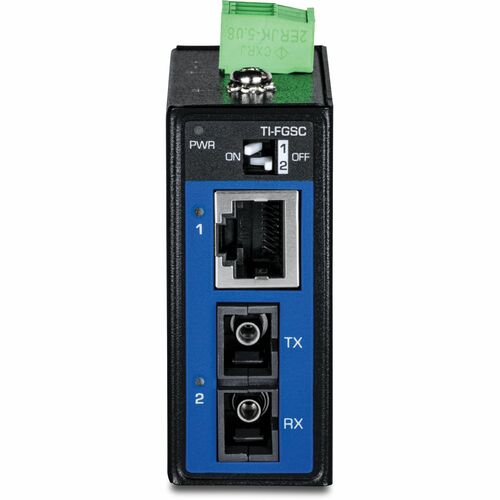

Front Panel Switches
The industrial multi-mode media converter's front panel DIP switches quickly allow switching between switch/ converter modes, and enable or disable Link Fault Pass Through (LFPT).

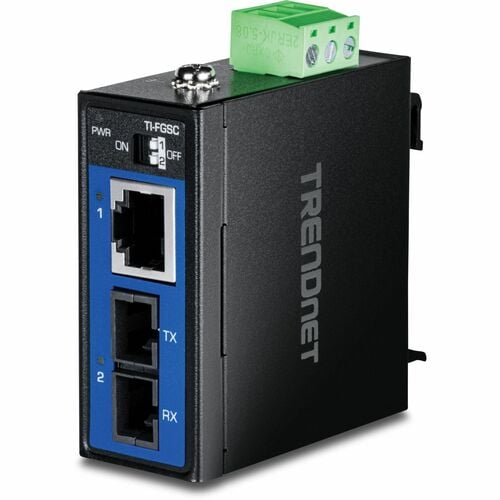

Hardened Compact Design
Equipped with an IP50-rated housing for dust ingress protection, 6kV Ethernet surge protection, designed to provide resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of 40° - 75° C (-40° - 167° F).
FEATURES | Network Ports
1 x Gigabit RJ45 Port and 1 SC fiber optic port
Extreme Temperature Range
Operates within an extreme operating temperature range of 40° - 75° C (-40° - 167° F)
Overload Current Protection

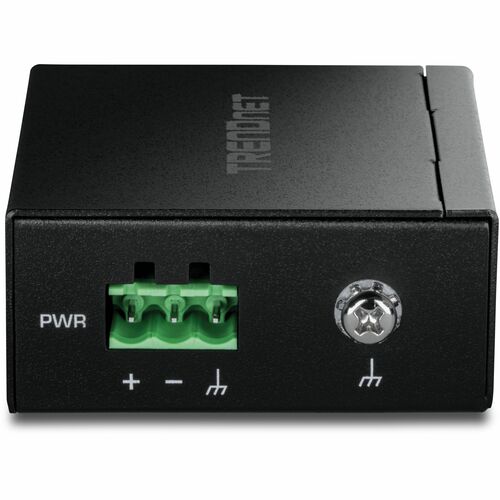

12 - 60V DC power input with overload current protection; power supply sold separately (model: TIM6024)
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Distance
1000BASE-LX (1310nm) gigabit multi-mode fiber for distances of up to 1km (0.62 mi)
Link Fault Pass Through
Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter
Surge Protection
Provides up to 6kV RJ45 Ethernet surge protection
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
Dust Protected
The industrial multi-mode converter's IP50-rated metal housing provides ingress protection from dust
Converter Modes
Quickly toggle between switch or converter (passthrough) modes using the front panel DIP switch depending on network traffic requirements and provide installation flexibility
Shock and Vibration Resistant
Complies with shock (EN 60068- 227), freefall (EN 60068-2-31), and vibration (EN 60068-2-6) standards

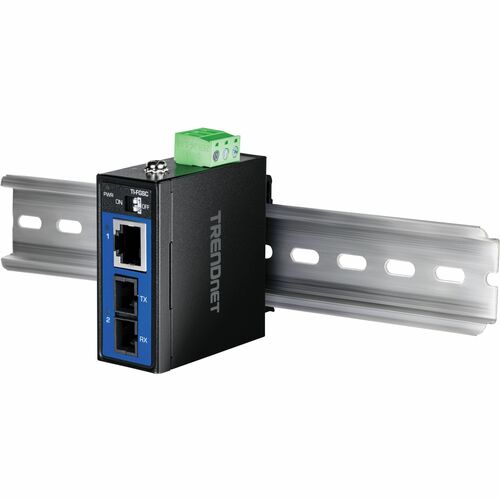

DIN-Rail / Wall Mounts

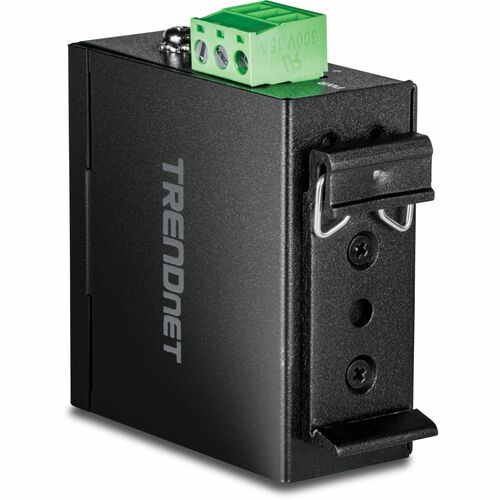

The industrial multi-mode media converter includes DIN-Rail mount and wall mount hardware
- Expand your network capabilities with this 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- Tuck the device out of the way with its Wall Mounting feature
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Especificaciones técnicas
| Technical Information | |
| Features | Fanless |
| Network & Communication | |
| Network Technology | 1000Base-T |
| 1000Base-LX | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC |
| Power Consumption | 2.15 W |
| Plug/Connector Type | Terminal Block |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Physical Characteristics | |
| Weight (Approximate) | 5.22 oz (148 g) |
| Form Factor | Wall Mountable |
| DIN Rail Mountable | |
| Height | 2.44" (62 mm) |
| Width | 1.06" (27 mm) |
| Depth | 2.28" (58 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TI-FGSC |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TI-FGSC |
| Product Name | Hardened Industrial 1000Base-LX Multi-Mode SC Fiber Converter (1km, 0.62mi.) |
| Brand Name | TRENDnet |
| Media & Performance | |
| Maximum Distance Supported | 1 km (0.62 Mile) |
| Maximum Data Transfer Rate | 2 Gbit/s |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| Miscellaneous | |
| Application/Usage | Network |
| Industrial | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
