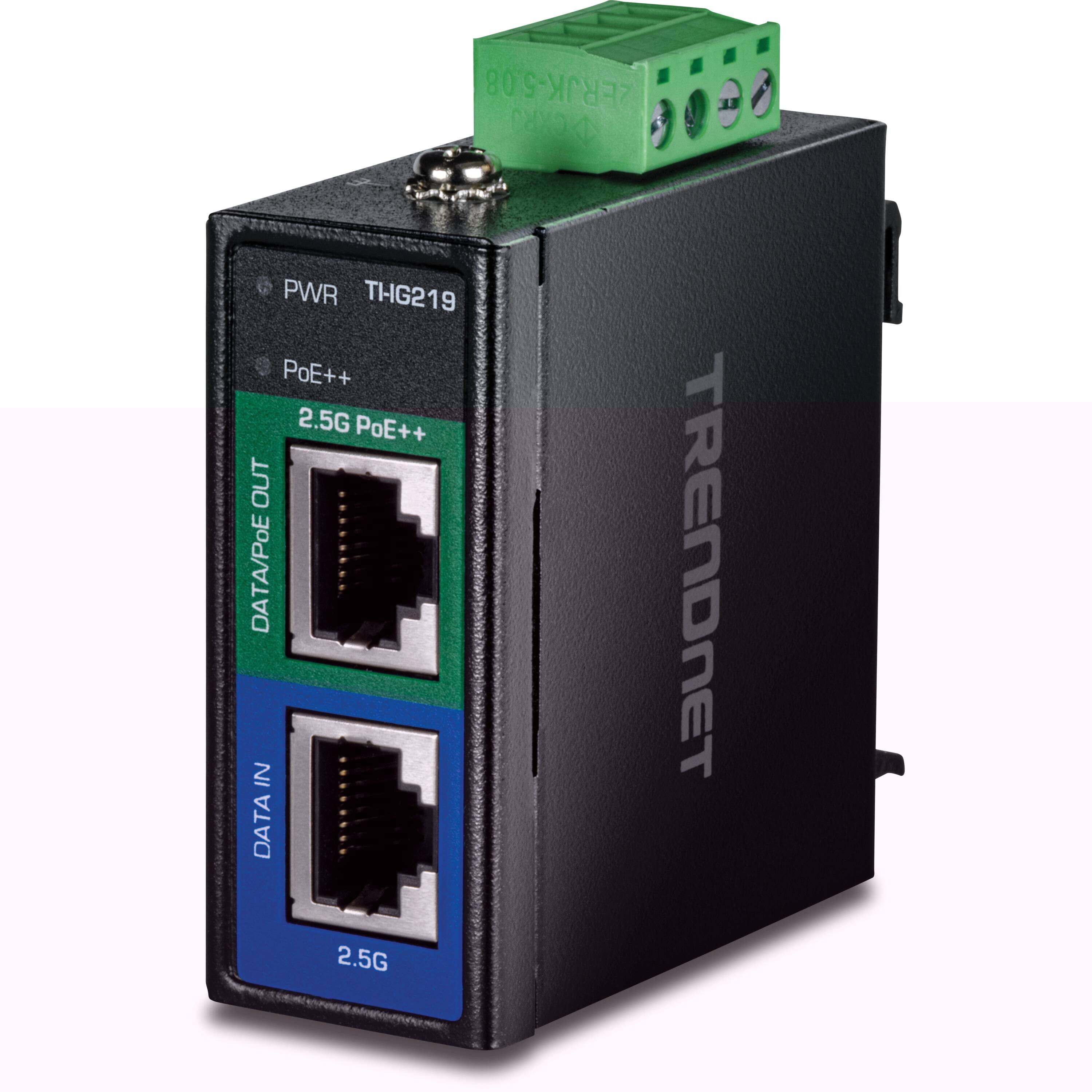

The TRENDnet Industrial 2.5G PoE++ Injector adds PoE++ power to a non-PoE 2.5G switch-- allowing users to connect high-powered devices like PTZ cameras and other power-hungry PoE devices (up to 95W).
Maximum run of 100m (238') per injector. Fanless, industrially hardened design and IP50 metal housing protects against mechanical and vibration damage, small abrasive particles, and operates in a wide -40° – 75° C (-40° – 167° F) temperature band to withstand harsh, industrial environments like workshops, warehouses and factories.
DIN-rail mounted. Includes removable terminal block for power connection.
TI-IG219 Specs and Features
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Device Interface
- 1 x 2.5GBASE-T port (10M/100M/1G/2.5G)
- 1 x 2.5GBASE-T PoE++ port (10M/100M/1G/2.5G)
- 4-pin removable terminal block
- LED indicators
- Power
- Input: 48 – 57V DC
- Compatible power supply: TI-S15052 (sold separately)
- Max. consumption: 2W @ 57V (with no PD connected)
- PoE
- PoE budget: 88 – 95W
- Pins 3, 4, 5, 6, for power + and pins 1, 2, 7, 8 for power

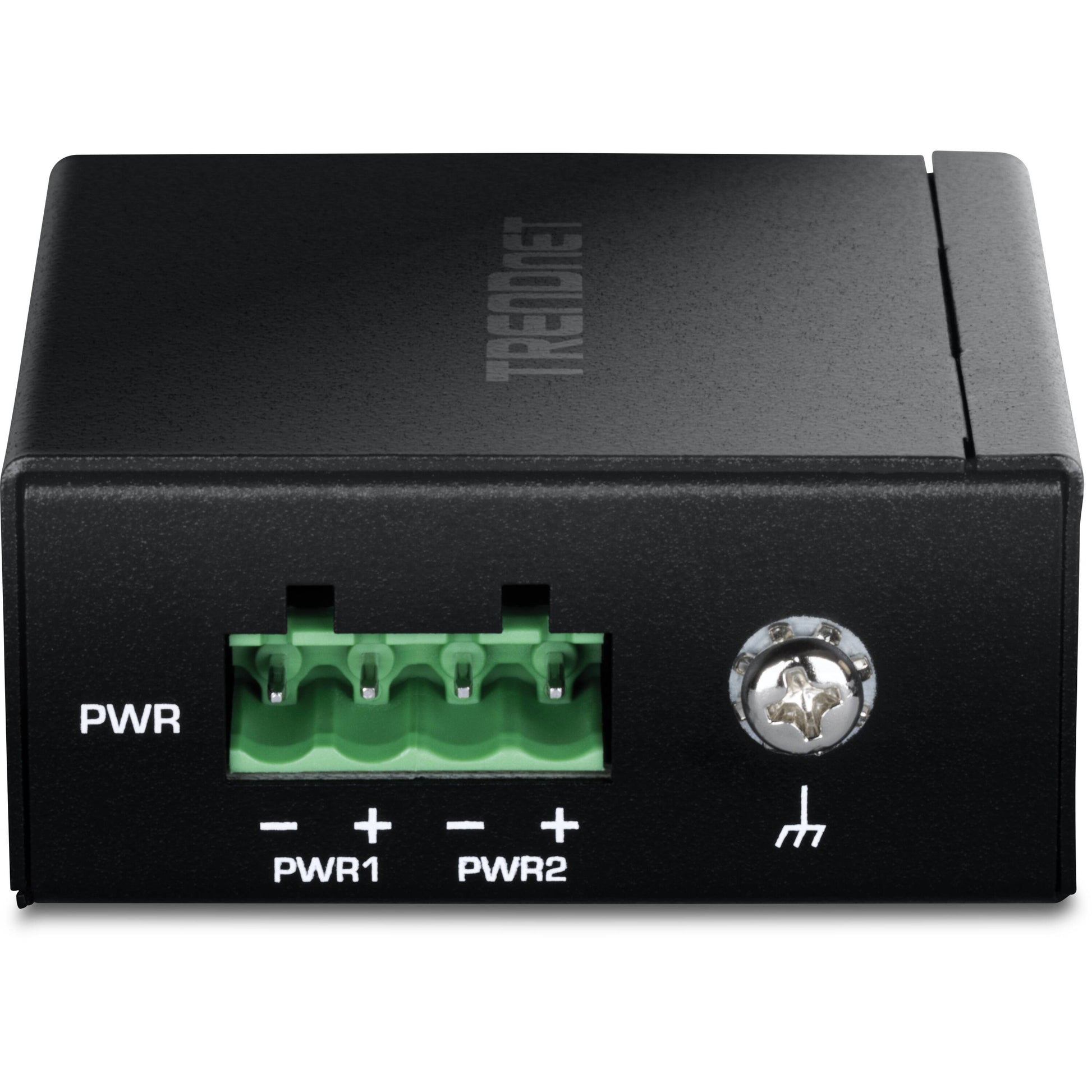

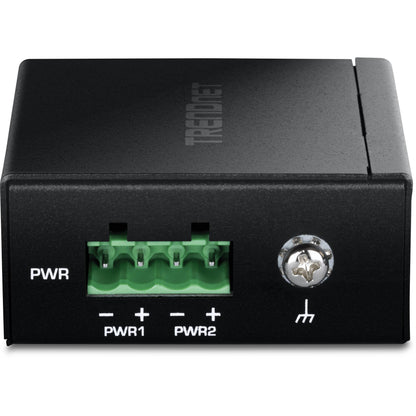

- Terminal Block
- Redundant power inputs, 4 pin
- Wire range: 0.34mm2 to 2.5mm2
- Solid wire (AWG): 14-22
- Stranded wire (AWG): 14-22
- Torque: 3.5 lb. – In / 0.3Nm / 0.39 Nm
- Wire strip length: 7-8mm
- MTBF
- 7,500,000 hours @ 25° C
- Housing
- IP50 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- Contact 6kV/Air 8kV ESD protection
- 6kV RJ45 surge protection
- Operating Temperature & Humidity
- - 40° — 75° C (-40° — 167° F)
- Max. 95% non-condensing
- Dimensions (L x W x H) & Weight
- 60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
- Weight: 134g (4.72 oz.)
- Certifications
- CE
- FCC
- LVD
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-31)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- Warranty
- 3-year Manufacturer's Warranty
- What's Included
- TI-IG219
- Removable terminal block
- DIN-Rail and wall mount kit
