Acerca del producto

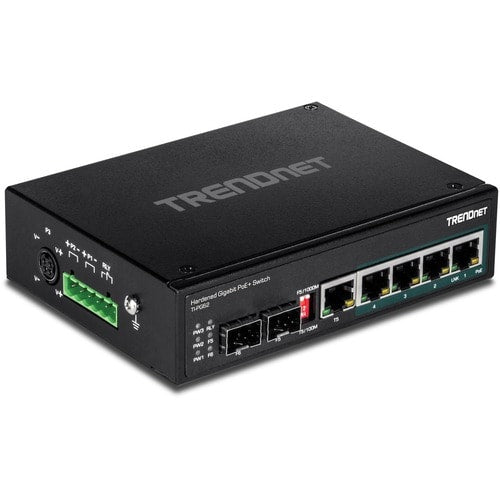

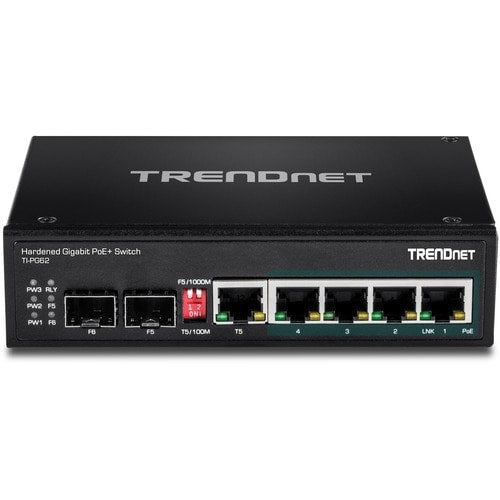

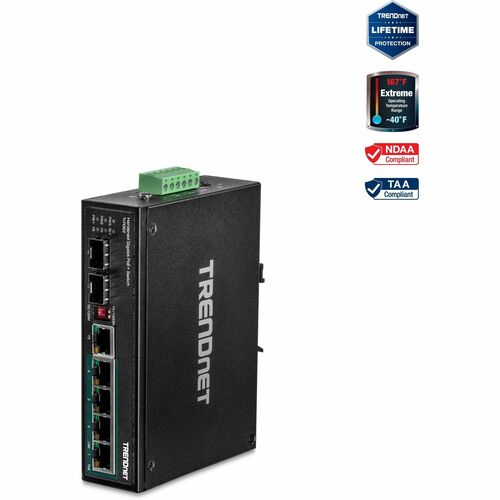

TRENDnet's TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.
TRENDnet TI-PG62 Features
TRENDNET TI-PG62 Specifications
Standards- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- 4 x Gigabit PoE+ ports
- 1 x Shared Gigabit port
- 1 x Shared SFP slot
- 1 x Dedicated SFP slot
- 6-pin removable terminal block
- LED indicators
- DIP switch
- DIN-Rail mount
- Wall mount
- Grounding point
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Data RAM Buffer: 1024 KB
- Switching Fabric: 12 Gbps
- MAC Address Table: 1 K entries
- Jumbo Frame: 9 KB
- Forwarding rate: 8.9 Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV support
- Input: 48 - 56 V DC
- Compatible power supply: TI-S12048 (sold separately)
- Consumption: Max. 5.76 Watts (no PoE)
- Input: 100 - 240 V AC, 50/60 Hz, 2 A
- Compatible power adapter: 48VDC3000 (sold separately)
- Output: 48V DC, 3.34 A 160 W max.
- PoE budget: 120 Watts

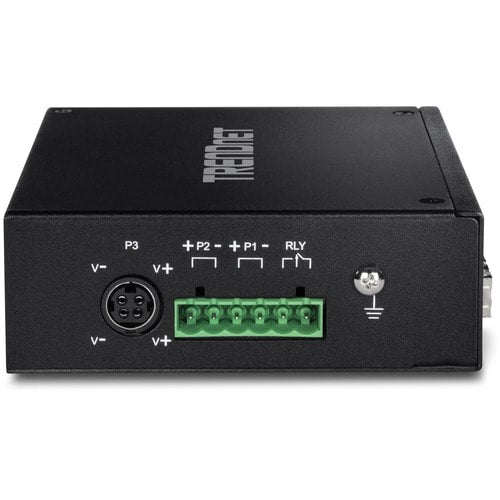

- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. In / 0.5 Nm / 0.56 Nm
- Wire strip length: 7-8 mm
- 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
- 2: OFF (SFP 1000M, default), ON (SFP 100M)
- Relay outputs with current carrying capacity of 1A, 24V DC
- Open circuit mode when two power sources are connected
- Short circuit mode when only one power source is connected
- 460,304 hours
- IP30 metal case

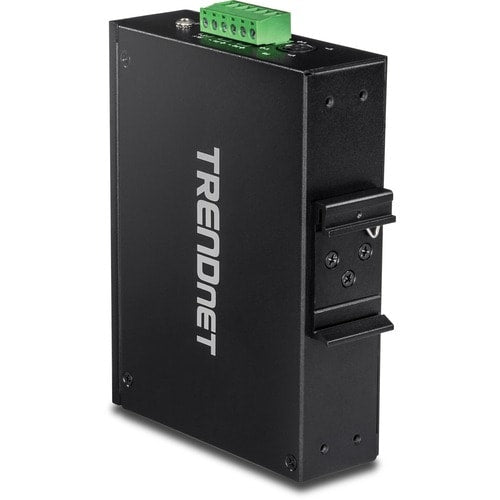

- DIN-rail mount
- Wall mount
- Grounding point
- 8 KV ESD protection
- - 40 to 75 C (-40 to 167 F)
- Max. 95 % non-condensing
- 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.)
- 500 g (1.1 lb)
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)

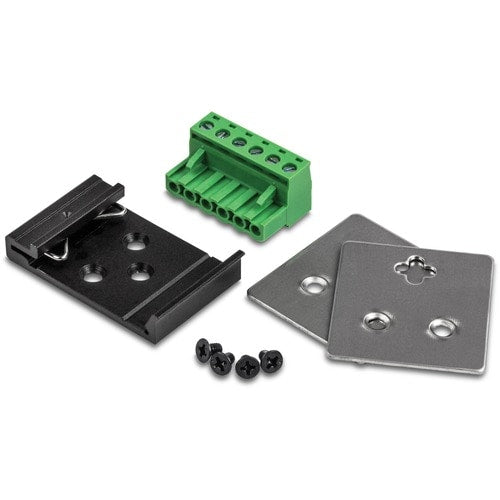

What's Included
