Acerca del producto

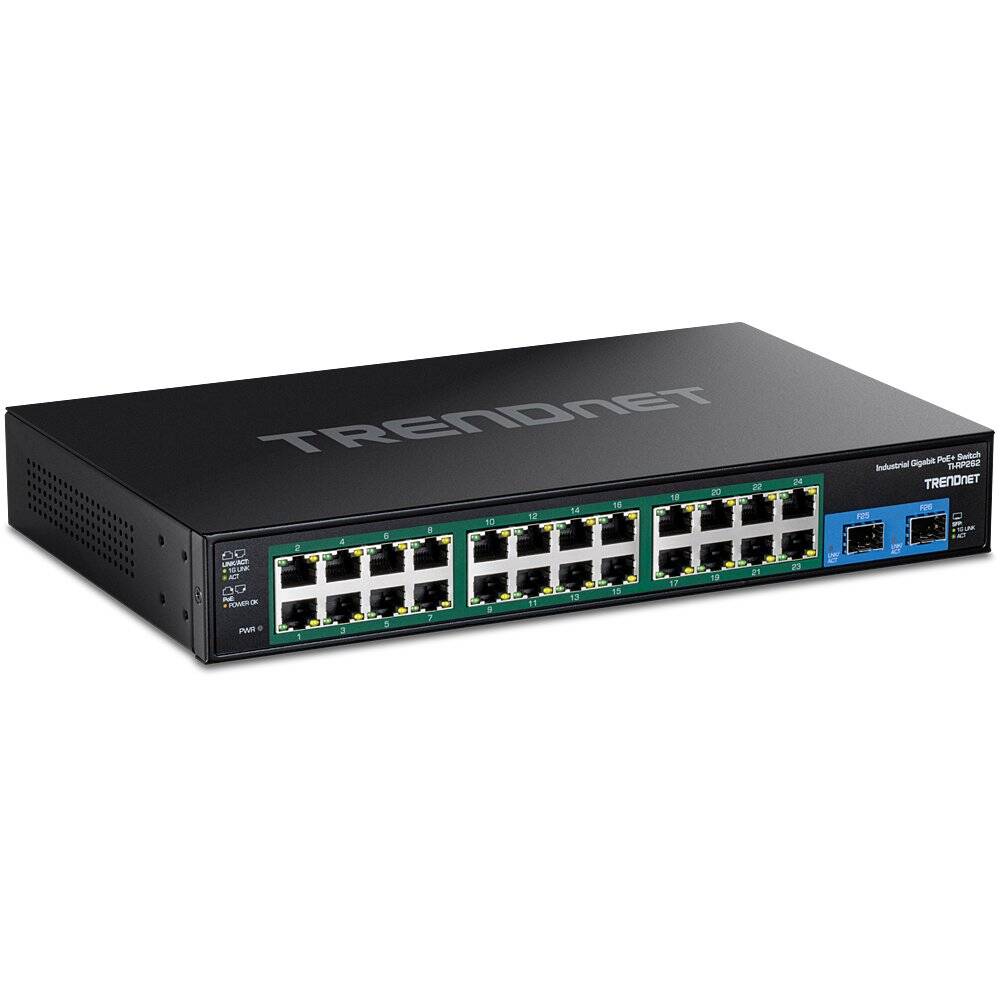

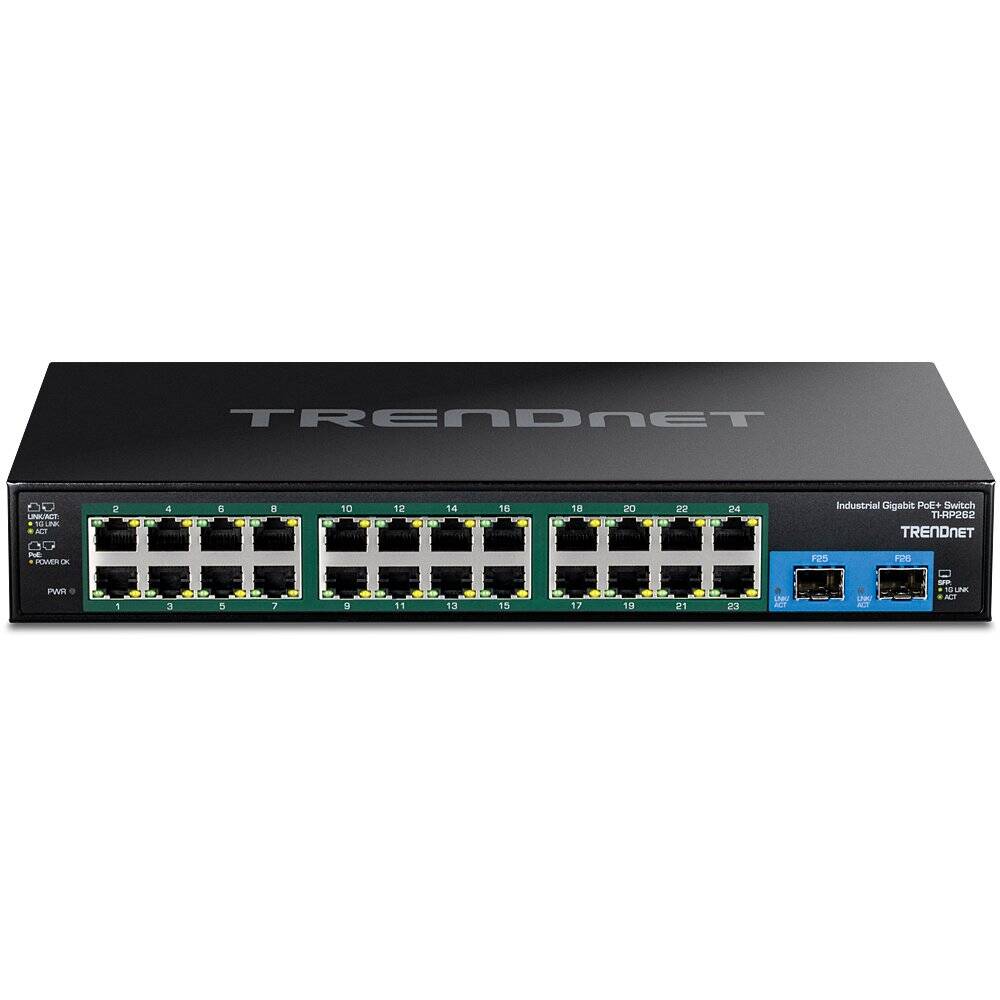

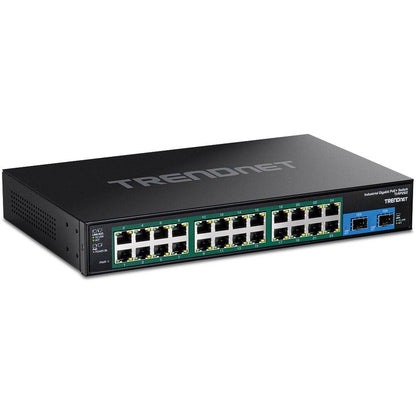

The TRENDnet 26-Port Industrial Gigabit Rackmount Switch is an industrial-grade 1U 19’’ rackmounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-RP262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
Featuring a 685W Full PoE power budget, 24x Gigabit PoE+ ports and 2x Gigabit fiber SFP slots, the TI-RP262 can power devices with up to 30W per port along with gigabit data transfer speeds to support almost any high-end modern networking solution.
The TI-RP262 also features redundant power inputs for mission-critical networking operations, and a terminal block with 4-pin alarm relay contact for extended power monitoring functionality with standard wired alarm systems.
Please note: Power supply (TI-S48048 or TI-RSP100048) sold separately.
TI-RP262 Specs and Features:
- Industrial-grade IP30 hardened enclosure
- 1U 19’’ rack mounted installation
- 8KV ESD protection and 2KV surge protection
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Device Interface:
- 24 x Gigabit ports
- 2 x Gigabit fiber SFP ports
- 4-pin removable terminal block
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
- Terminal Block:
- Redundant power inputs, alarm relay contact, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 296 x 180 x 45mm (11.65 x 7.08 x 1.77 in.)
- Weight: 1.63kg (3.6 lbs.)
- Certifications: CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- TI-RP262
- Quick Installation Guide
- Rackmount Kit
- Lifetime Manufacturer’s Warranty
Especificaciones técnicas
The TRENDnet 26-Port Industrial Gigabit Rackmount Switch is an industrial-grade 1U 19’’ rackmounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-RP262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
Featuring a 685W Full PoE power budget, 24x Gigabit PoE+ ports and 2x Gigabit fiber SFP slots, the TI-RP262 can power devices with up to 30W per port along with gigabit data transfer speeds to support almost any high-end modern networking solution.
The TI-RP262 also features redundant power inputs for mission-critical networking operations, and a terminal block with 4-pin alarm relay contact for extended power monitoring functionality with standard wired alarm systems.
Please note: Power supply (TI-S48048 or TI-RSP100048) sold separately.
TI-RP262 Specs and Features:
- Industrial-grade IP30 hardened enclosure
- 1U 19’’ rack mounted installation
- 8KV ESD protection and 2KV surge protection
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Device Interface:
- 24 x Gigabit ports
- 2 x Gigabit fiber SFP ports
- 4-pin removable terminal block
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
- Terminal Block:
- Redundant power inputs, alarm relay contact, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 296 x 180 x 45mm (11.65 x 7.08 x 1.77 in.)
- Weight: 1.63kg (3.6 lbs.)
- Certifications: CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- TI-RP262
- Quick Installation Guide
- Rackmount Kit
- Lifetime Manufacturer’s Warranty
