Acerca del producto

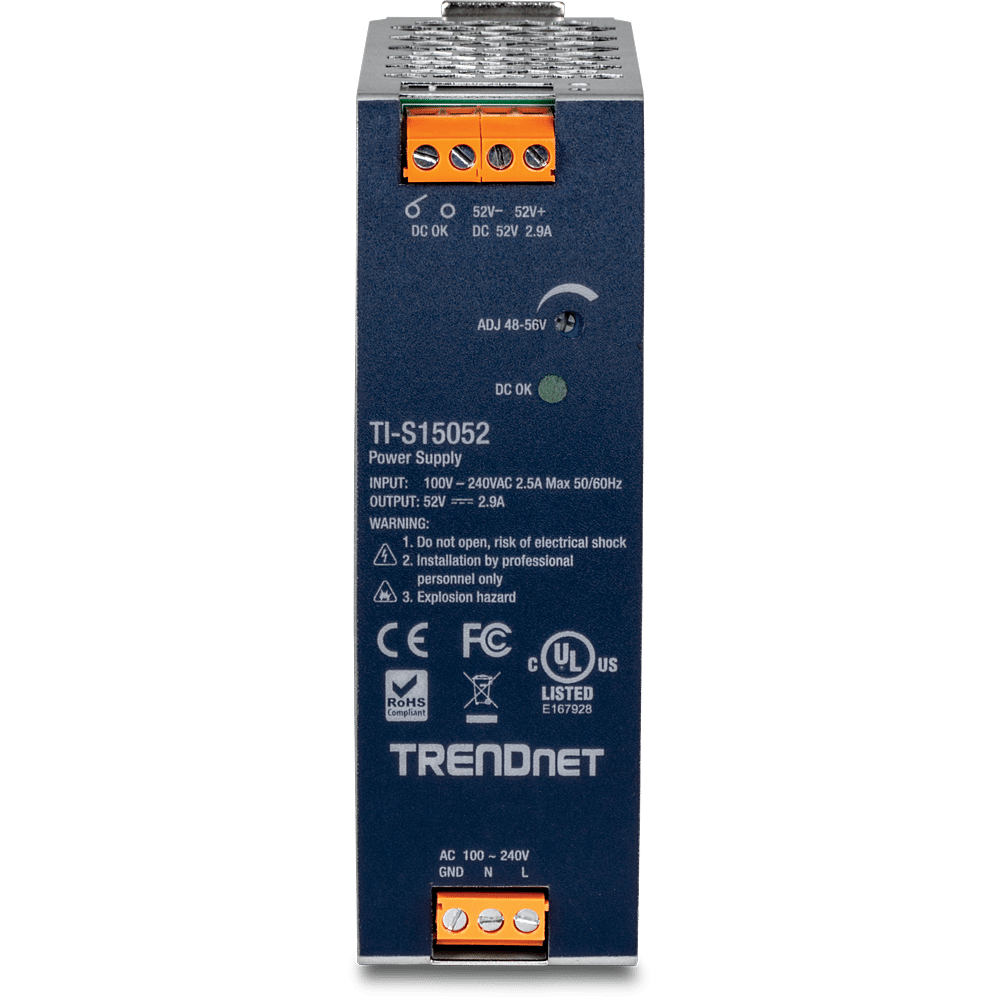

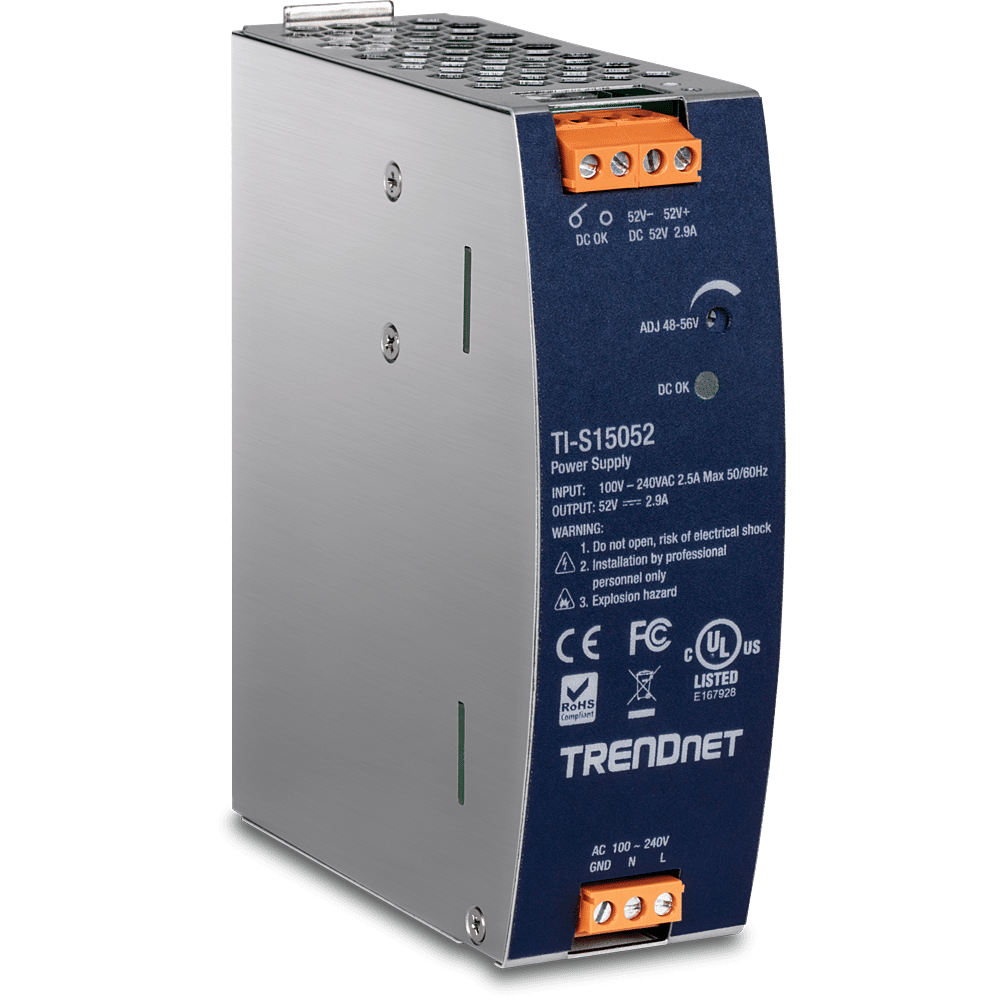

TRENDnet TI-S15052 150W, 52V DC, 2.89A AC to DC DIN-Rail Power Supply with PFC Function
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function Features
- Industrial power supply with integrated DIN-Rail mount
- Provides up to 150W of power (52V DC, 2.89A)
- Supported output voltage 48 – 56V DC
- High efficiency 93% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.96)
- Cooling by natural air convection
- Protections: Overload, short circuit, over power, over voltage, over current, over temperature
- UL 508 approved
- Built-in DC OK relay contact
- -25° – 70° C (-13° – 158° F) wide operating temperature range
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function Specifications
- Interface
- Input: 90 – 264V AC, 47 – 63Hz, 1.8A 127 – 370V DC
- Output: 150W, 48 – 56V, 0 – 2.9A
- DIN-rail: TS-35/7.5 or 15
- Housing
- DIN-rail mount
- Power LED indicator
- Special Features
- DC OK relay contact
- 150% peak load capacity
- Protection functions
- Short circuit
- Overpower
- Overvoltage
- Over Current
- Over Temperature
- Protection type: shutdown and self-recovery
- Operating Temperature
- -25° – 70° C (-13° – 158° F)
- Operating Humidity
- Max. 95% non-condensing
- MTBF
- 200,000 hours @ 25° C
- Dimensions
- 40 x 125.2 x 102mm (1.6 x 4.9 x 4 in.)
- Weight
- 542g (1.19 lb.)
- Certifications
- CE
- FCC
- UL 62368
- CB IEC 62368
- Warranty
- 1 year
- Package Contents
- TI-S15052
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Especificaciones técnicas
TRENDnet TI-S15052 150W, 52V DC, 2.89A AC to DC DIN-Rail Power Supply with PFC Function
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function Features
- Industrial power supply with integrated DIN-Rail mount
- Provides up to 150W of power (52V DC, 2.89A)
- Supported output voltage 48 – 56V DC
- High efficiency 93% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.96)
- Cooling by natural air convection
- Protections: Overload, short circuit, over power, over voltage, over current, over temperature
- UL 508 approved
- Built-in DC OK relay contact
- -25° – 70° C (-13° – 158° F) wide operating temperature range
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function Specifications
- Interface
- Input: 90 – 264V AC, 47 – 63Hz, 1.8A 127 – 370V DC
- Output: 150W, 48 – 56V, 0 – 2.9A
- DIN-rail: TS-35/7.5 or 15
- Housing
- DIN-rail mount
- Power LED indicator
- Special Features
- DC OK relay contact
- 150% peak load capacity
- Protection functions
- Short circuit
- Overpower
- Overvoltage
- Over Current
- Over Temperature
- Protection type: shutdown and self-recovery
- Operating Temperature
- -25° – 70° C (-13° – 158° F)
- Operating Humidity
- Max. 95% non-condensing
- MTBF
- 200,000 hours @ 25° C
- Dimensions
- 40 x 125.2 x 102mm (1.6 x 4.9 x 4 in.)
- Weight
- 542g (1.19 lb.)
- Certifications
- CE
- FCC
- UL 62368
- CB IEC 62368
- Warranty
- 1 year
- Package Contents
- TI-S15052
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
