Acerca del producto

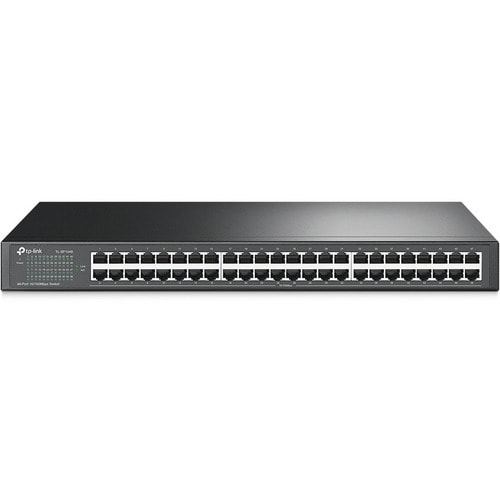

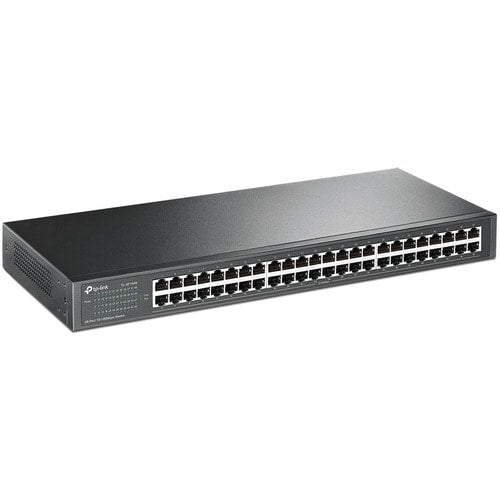

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution.
- 48 10/100Mbps RJ45 ports.
- Innovative energy-efficient technology saves power up to 50%.
- Supports MAC address self-learning and auto MDI/MDIX.

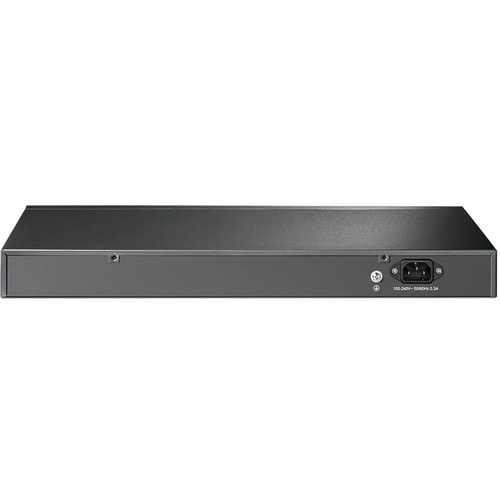

- Input: 100~240VAC, 50/60Hz Output: 3.3VDC/8A.
- 100% Data filtering rate eliminates all error packets.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 9.6Gbps Switching Capacity.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Compact size design for desktops, rack-mountable.
Especificaciones técnicas
| Management & Protocols | |
| Manageable | No |
| Miscellaneous | |
| Additional Information | Transmission Method:
|
| Environmentally Friendly | Yes |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 48 |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Fast Ethernet Network |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3i | |
| IEEE 802.3u | |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 9.90 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 10.20" (259.08 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SF1048 |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SF1048 |
| Product Name | TL-SF1048 48-Port Rackmount Switch |
| Brand Name | TP-Link |
