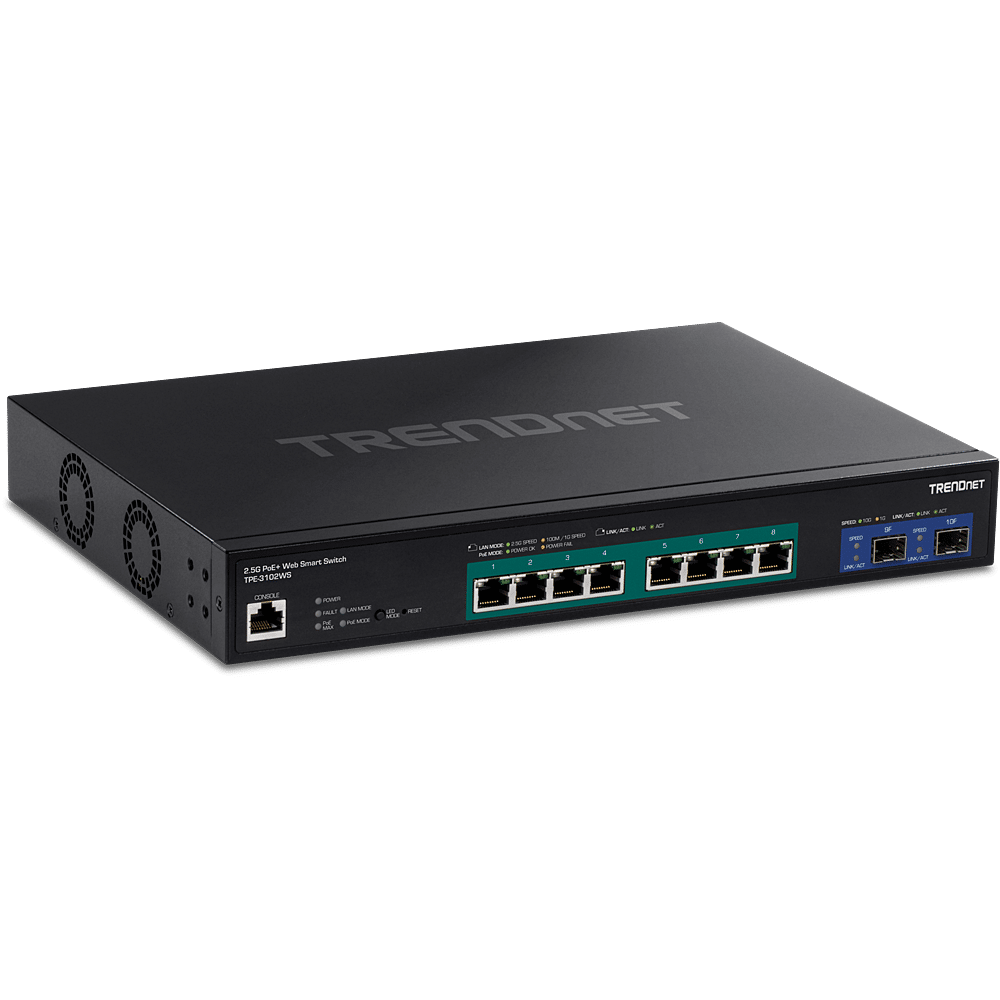

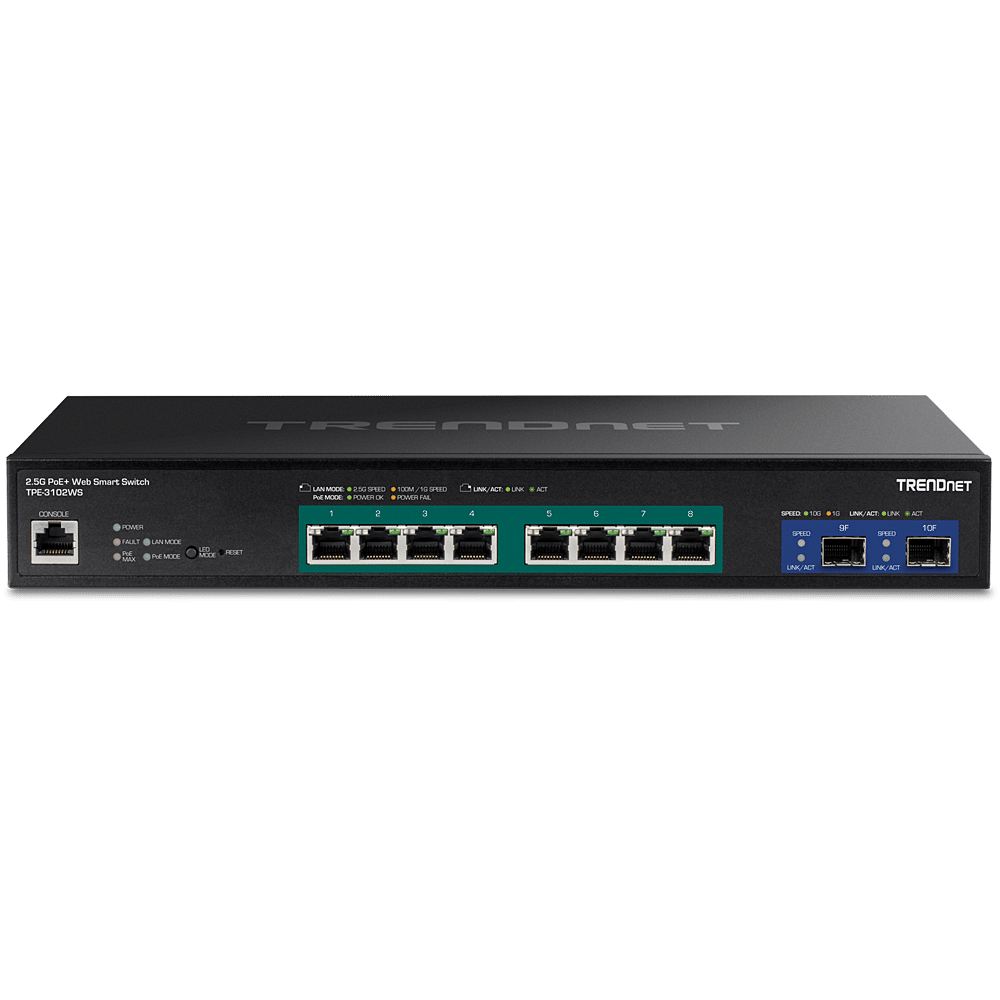

TRENDnet TPE-3102WS 10-Port Multi-Gig Web Smart PoE+ Switch
10-Port Multi-Gig Web Smart PoE+ Switch Features
- 8 x 2.5GBASE-T PoE+ ports
- 2 x 10 SFP+ slots
- 240W PoE power budget
- Backward compatible with 100/1000BASE-T devices
- The easy-to-use web-based management interface
- PoE alive check automatically attempts to recover an unresponsive PoE device connected
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Bandwidth control per port
- Private, Multicast, and Voice VLAN support
- 1U 19” rack-mountable
- 80Gbps switching capacity
- IEEE 802.3bz (2.5G) compliant
- IEEE 802.3ae (SFP+) compliant
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
10-Port Multi-Gig Web Smart PoE+ Switch Specifications
- Standards
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
- Device Interface
- 8 x 2.5G Ports
- 2 x 10G SFP+ slots
- LED indicators
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- 2.5G Ethernet: 5000Mbps (full duplex)
- SFP: 2000Mbps (full duplex)
- SFP+: 20Gbps (full duplex)
- Performance
- Switch fabric: 80Gbps
- RAM buffer: 1.5MB
- MAC Address Table: 16K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 59.52Mpps (64-byte packet size)
- Management
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS) Web-based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
- MIB
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
- Spanning Tree
- IEEE 802.1d STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
- Link Aggregation
- Static Link Aggregation
- 802.3ad Dynamic LACP
- Quality of Service (QoS)
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
- VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user-defined OUIs)
- Multicast
- IGMP Snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
- Port Mirror
- RX, TX, or Both
- Many to one
- Access Control
- 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial-In User Authentication
- DHCP Snooping
- Loopback Detection
- Trusted Host
- Denial of Service (DoS)
- IP MAC port binding
- Block unknown multicast
- ACL IPv4 L2-L4 & IPv6
- MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- TOS (IPv4 only)
- IPv4 Address and Mask (IPv4 only)
- IPv6 Address and Prefix Length (IPv6 only)
- Layer 3 Features
- IPv4 / IPv6 static routing
- IP interfaces: Up to 6
- Routing table entries: Up to 32 (IPv4 / IPv6)
- ARP table (up to 128 entries)
- Inter-VLAN routing
- Power
- Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 60W (No PD connected)
- PoE
- PoE budget: 240W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1, and 2 for power and pins 3.6 for power
- PD auto-classification
- Over current/short circuit protection
- Fan/Acoustics
- Quantity: 1
- Smart Fans
- Noise Level: 48.5 dBa (max.)
- MTBF
- 342,321 hours
- Operating Temperature
- -0° – 40° C (32° – 104° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 330 x 230 x 44mm (13 x 9.06 x 1.73 in.)
- Weight
- 664g (1.46 lbs.)
- Certifications
- CE
- FCC
- UL
- Warranty
- Lifetime Warranty*
- Package Contents
- TPE-3102WS
- Quick Installation Guide
- Power Cord (1.5m / 5 ft.)
- Rackmount Bracket
