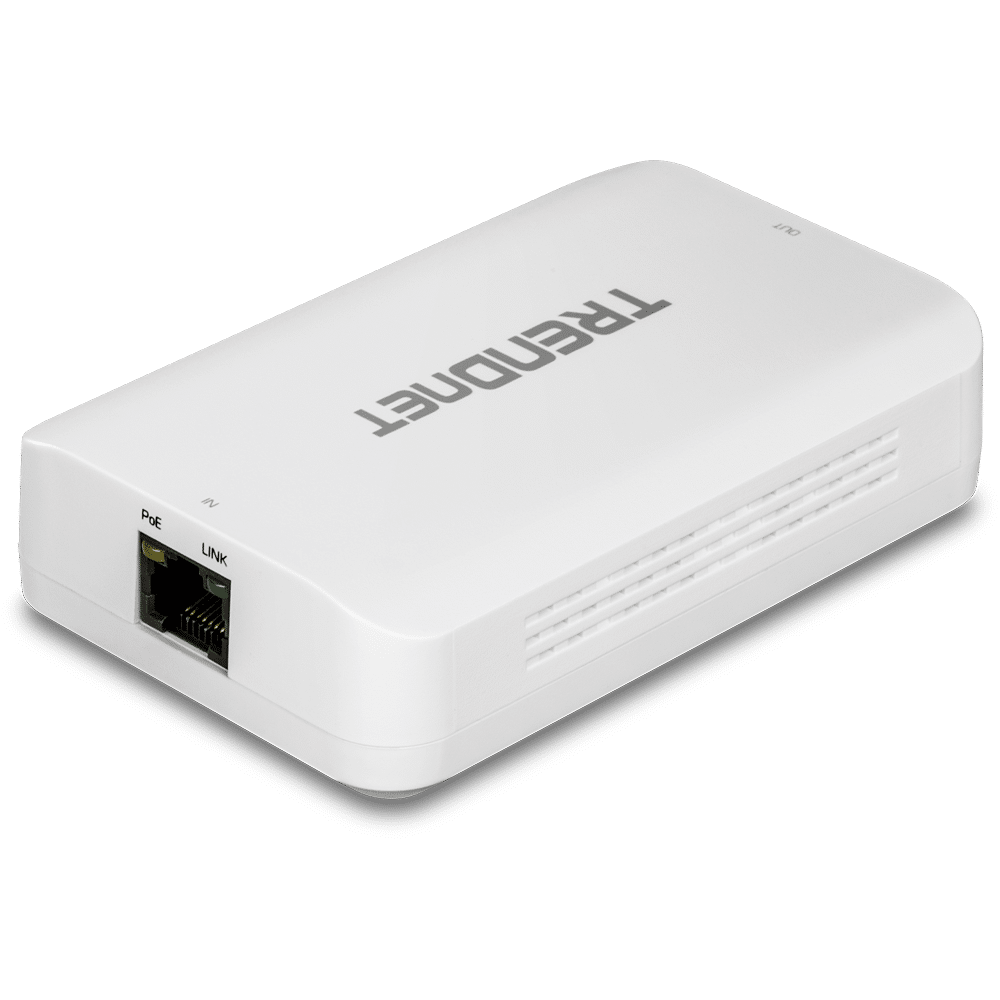

TRENDnet TPE-BE200 2-Port Gigabit PoE++ Extender Overview
TRENDnet’s 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.
- Easy installation
- Extends 100m (328 ft.) for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.) • Use a single PoE++ (60W) connection to extend PoE+ (30W) for up to two devices • Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices
- Convenient wall-mountable design
- No external power adapter required
TRENDnet TPE-BE200 2-Port Gigabit PoE++ Extender Features
- Extension Distance
- Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of up to 200m (656 ft.) from the PoE source
- Installation Flexibility
- Wall mountable design accommodates most installations scenarios
- PoE/PoE+/PoE++
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections
- PoE Powered
- No external power is required—the PoE++ extender (sometimes referred to as a PoE++ repeater) is conveniently powered via Power over Ethernet
- Daisy Chain
- Connect up to 4 PoE++ extenders for a PoE network extension of up to 500m (1,640 ft.)
TRENDnet TPE-BE200 2-Port Gigabit PoE++ Extender Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface

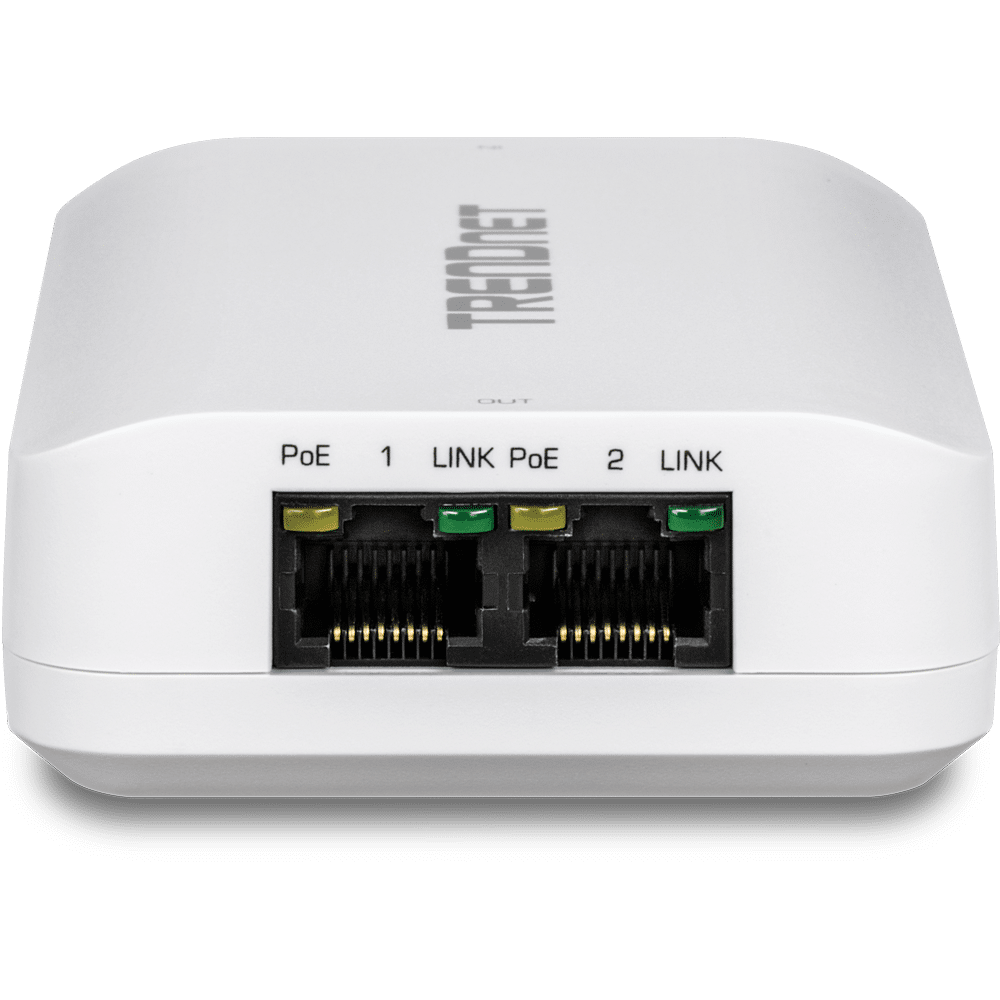

- 1 x Gigabit PoE++ in port • 2 x Gigabit PoE out port • LED indicators
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Performance
- RAM buffer: 1Mb
- MAC Address Table: 2K entries • Jumbo Frame: 9KB
- Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)
- Cascade up to 4 repeaters
- Power
- Powered by PoE++ Device • Max. consumption: 3.3W
- PoE
- PoE budget: 60W
- PD Pin: 1,2,4,5 (+) and 3,6,7,8 (-) • PSE Pin: 1,2 (+) and 3,6 (-)
- Operating Temperature
- 0° – 45° C (32° - 113° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)
- Weight
- 125g (4 oz.)
- Certifications
- CE
- FCC
- Warranty
- 3 year
- Package Contents
- TPE-BE200
- Quick Installation Guide
