Acerca del producto

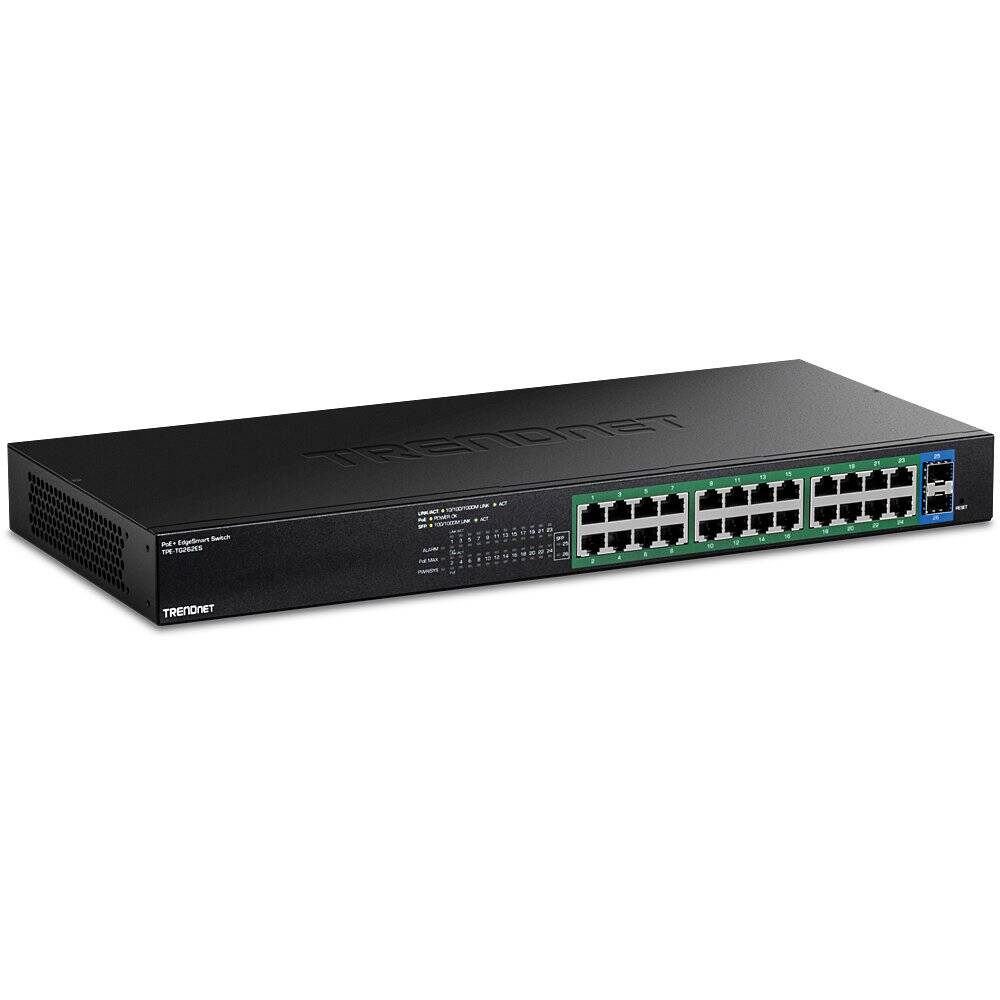

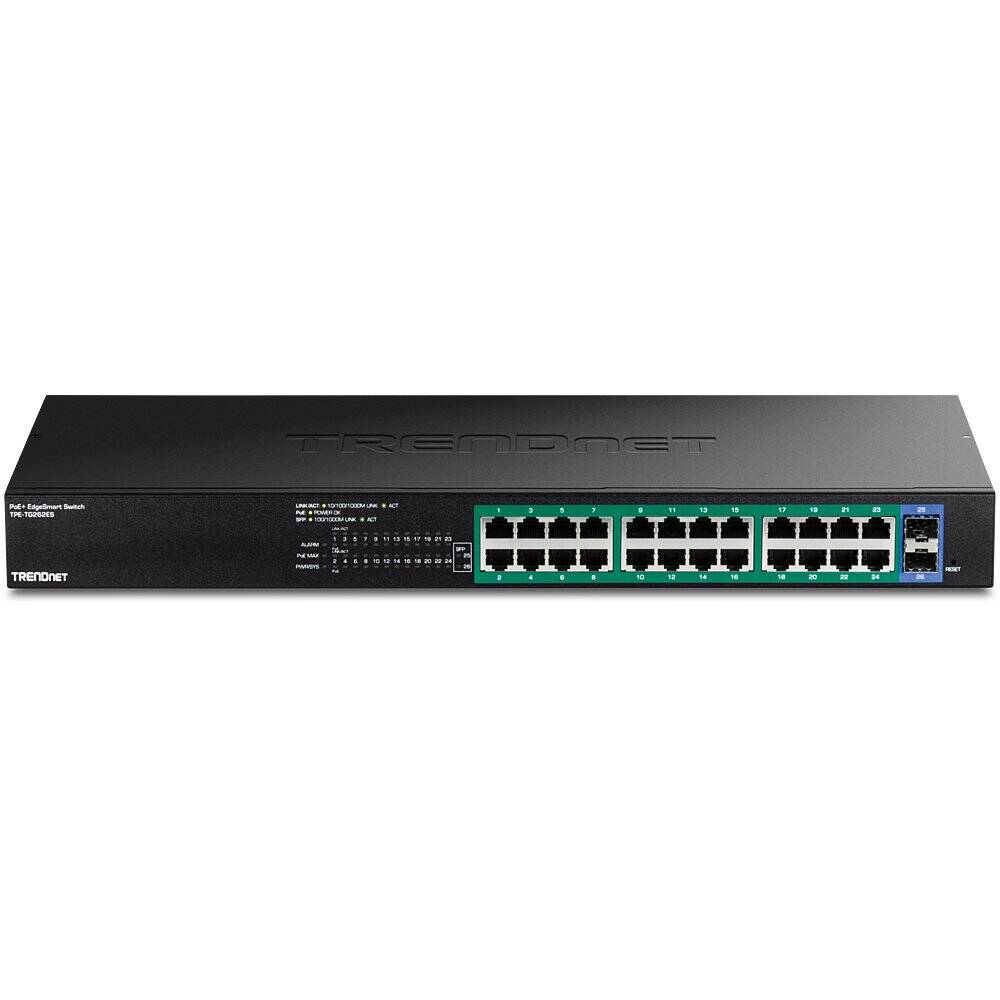

The TRENDnet 26-Port Gigabit PoE+ EdgeSmart Switch is a 1U 19” rack mountable fast network switch with advanced administrative controls and PoE+ electrical output for modern networking solutions. Featuring a user-friendly web-based management interface, administrators can easily route and control bandwidth on a per-port level from a web browser, and with static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping; advanced management of networking systems can be accomplished with ease. Also supports Voice VLAN for VoIP applications.
A 380W PoE power budget and 24x Gigabit PoE+ ports and 2x SFP slots support advanced networking configurations and hardware with high power demands, like PTZ cameras and high-gain PTP and AP networking devices.
TPE-TG262ES Specs and Features:
- Device Interface:
- 24x Gigabit PoE+ ports
- 2x Gigabit SFP ports
- LED indicators
- Reset button
- Standards: IEEE 802.1d, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- HTTP Web based GUI
- SNMP v1, v2c
- Cable-based diagnostic test
- Backup/Restore Configuration
- Firmware Upload Supported
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3
- Block unknown multicast source
- Up to 32 multicast entries
- PoE:
- Power Budget: 380W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
- PD auto classification
- Over current/short circuit protection
- Operating temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 440 x 195 x 44mm (17.3 x 7.68 x 1.73 in.)
- Weight: 3.06kg (6.75 lbs.)
- Certifications: CE, FCC, ETL
- Package contents:
- 1x TPE-TG262ES
- Quick Installation Guide
- Power cord (1.5m/5 ft.)
- Rackmount kit
- Lifetime Manufacturer’s Warranty
Especificaciones técnicas
The TRENDnet 26-Port Gigabit PoE+ EdgeSmart Switch is a 1U 19” rack mountable fast network switch with advanced administrative controls and PoE+ electrical output for modern networking solutions. Featuring a user-friendly web-based management interface, administrators can easily route and control bandwidth on a per-port level from a web browser, and with static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping; advanced management of networking systems can be accomplished with ease. Also supports Voice VLAN for VoIP applications.
A 380W PoE power budget and 24x Gigabit PoE+ ports and 2x SFP slots support advanced networking configurations and hardware with high power demands, like PTZ cameras and high-gain PTP and AP networking devices.
TPE-TG262ES Specs and Features:
- Device Interface:
- 24x Gigabit PoE+ ports
- 2x Gigabit SFP ports
- LED indicators
- Reset button
- Standards: IEEE 802.1d, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- HTTP Web based GUI
- SNMP v1, v2c
- Cable-based diagnostic test
- Backup/Restore Configuration
- Firmware Upload Supported
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3
- Block unknown multicast source
- Up to 32 multicast entries
- PoE:
- Power Budget: 380W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
- PD auto classification
- Over current/short circuit protection
- Operating temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 440 x 195 x 44mm (17.3 x 7.68 x 1.73 in.)
- Weight: 3.06kg (6.75 lbs.)
- Certifications: CE, FCC, ETL
- Package contents:
- 1x TPE-TG262ES
- Quick Installation Guide
- Power cord (1.5m/5 ft.)
- Rackmount kit
- Lifetime Manufacturer’s Warranty
